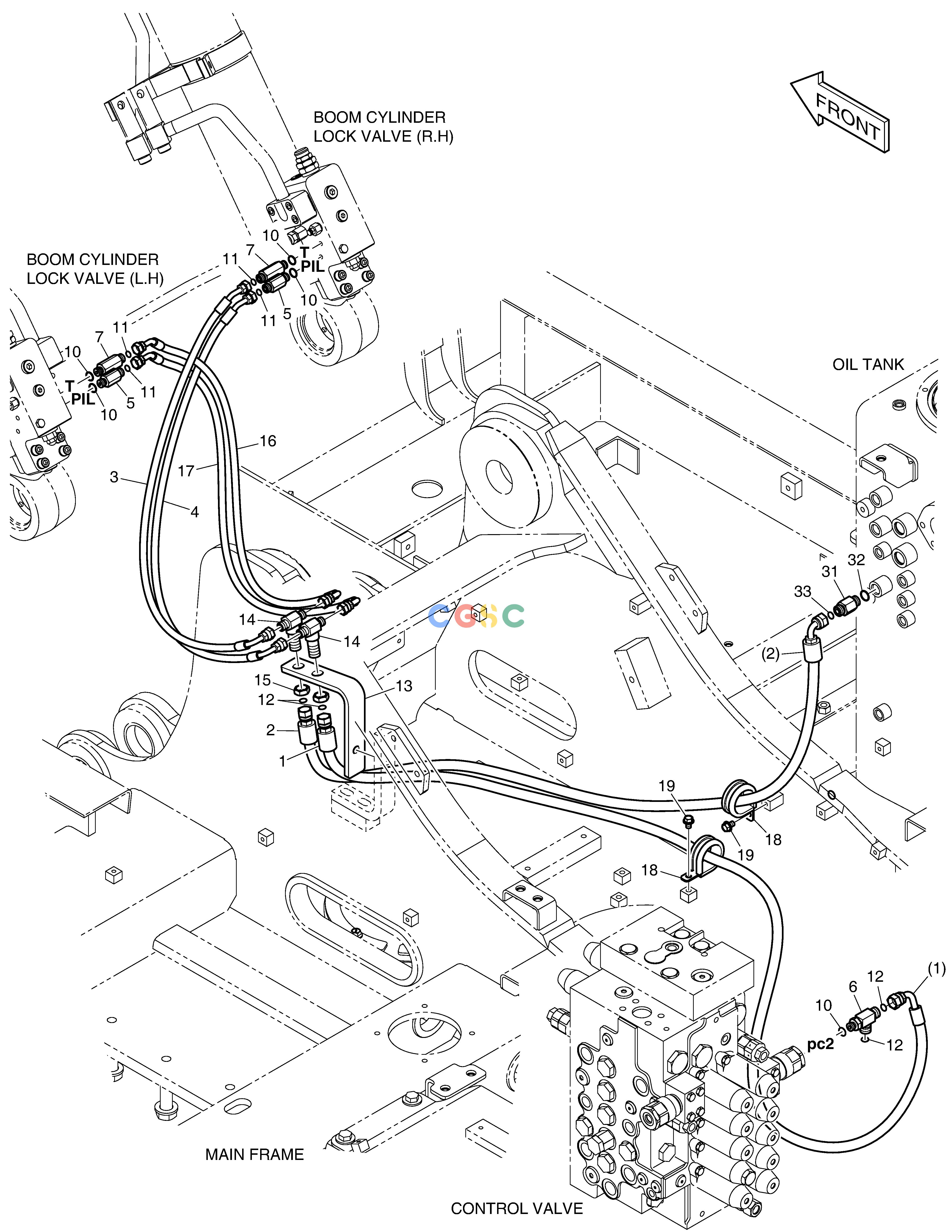

斗山零件查询PILOT PIPING-BOOM LOCK VALVE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05706
|
[-] |
|
|
| 1. |
DS2121251
|
[1] |
|
|
| 10. |
S8000111
|
[5] |
O-RING
|
|
| 11. |
S8030041
|
[4] |
O-RING
|
|
| 12. |
S8030061
|
[4] |
O-RING
|
|
| 13. |
K1024204
|
[1] |
BRACKET
|
|
| 14. |
DS2416013
|
[2] |
|
|
| 15. |
DS0301032
|
[2] |
NUT
|
|
| 16. |
DS2122056
|
[1] |
|
|
| 17. |
DS2122057
|
[1] |
|
|
| 18. |
124-00208D7
|
[2] |
CLIP
|
|
| 19. |
K1001029
|
[2] |
BOLT
|
|
| 2. |
DS2121267
|
[1] |
|
|
| 3. |
DS2122054
|
[1] |
|
|
| 31. |
DS2232039
|
[1] |
|
|
| 32. |
S8000141
|
[1] |
O-RING
|
|
| 33. |
S8030061
|
[1] |
O-RING
|
|
| 4. |
DS2122055
|
[1] |
|
|
| 5. |
2181-4133D44
|
[2] |
ADAPTER
|
|
| 6. |
DS2412016
|
[1] |
|
|
| 7. |
2181-4133D43
|
[2] |
ADAPTER
|
|
