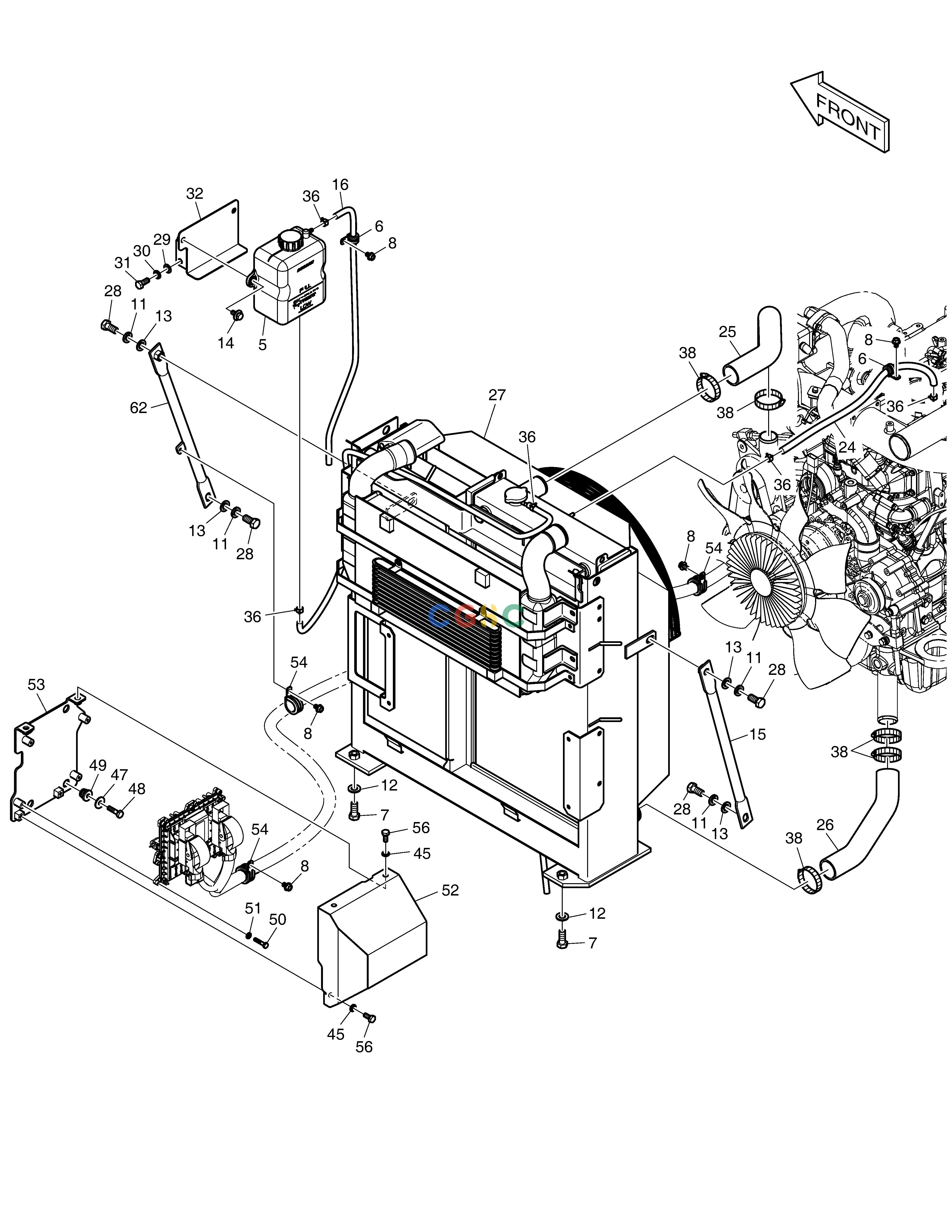

斗山零件查询RADIATOR MOUNTING DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00395
|
[-] |
|
|
| 11. |
S5102903
|
[4] |
WASHER
|
|
| 12. |
2114-1816A
|
[4] |
WASHER
|
|
| 13. |
S5010913
|
[4] |
WASHER
|
|
| 14. |
DS0025017
|
[2] |
BOLT
|
|
| 15. |
K1047774
|
[1] |
STAY
|
|
| 16. |
2185-1247D88
|
[1] |
HOSE 1100L
|
|
| 24. |
DS2105014
|
[1] |
HOSE;FUEL
|
|
| 25. |
420109-00329
|
[1] |
|
|
| 26. |
420109-00122A
|
[1] |
|
|
| 27. |
440211-00094B
|
[1] |
|
|
| 28. |
S0521366
|
[4] |
BOLT
|
|
| 29. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 30. |
S5102703
|
[2] |
WASHER
|
|
| 31. |
S0515266
|
[2] |
BOLT
|
|
| 32. |
110420-00525B
|
[1] |
|
|
| 36. |
DS2807010
|
[5] |
|
|
| 36. |
120402-00149
|
[5] |
|
DS2807010
|
| 38. |
S8500079
|
[5] |
CLAMP
|
|
| 45. |
S5102603
|
[3] |
. WASHER
|
|
| 47. |
2114-1058D10
|
[4] |
WASHER
|
|
| 48. |
S0512466
|
[4] |
BOLT
|
|
| 49. |
198-00016
|
[4] |
RUBBER
|
|
| 5. |
K1038409
|
[1] |
TANK;RESERVE
|
|
| 50. |
S0505266
|
[4] |
BOLT
|
|
| 51. |
S5102303
|
[4] |
. WASHER
|
|
| 52. |
110508-11734A
|
[1] |
|
|
| 53. |
110406-01681C
|
[1] |
|
|
| 54. |
124-00208D5
|
[3] |
CLIP
|
|
| 56. |
S0512066
|
[3] |
. BOLT
|
|
| 6. |
124-00208D2
|
[2] |
CLAMP
|
|
| 62. |
101582-00202
|
[1] |
|
|
| 7. |
S0521466
|
[4] |
BOLT
|
|
| 8. |
K1001029
|
[5] |
BOLT
|
|
