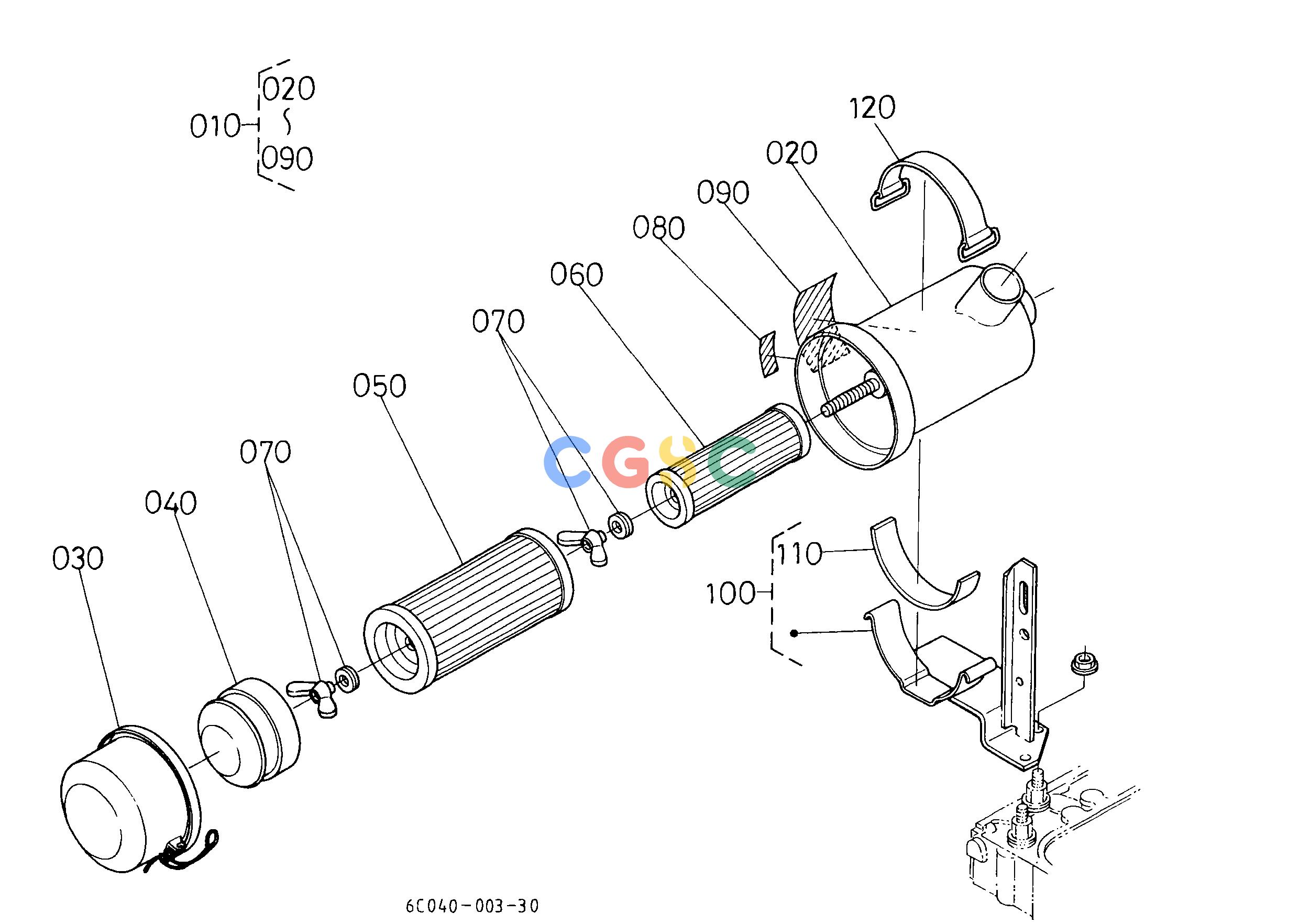

久保田零件查询060303 AIR CLEANER (DOUBLE) [OPTION] ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04094110
|
[1] |
ASSY CLEANER AIR
|
3.1680(lbs); 1.440
|
| 020. |
6C04094210
|
[1] |
ASSY CASE
|
1.4960(lbs); 0.680
|
| 030. |
6C04094220
|
[1] |
ASSY PAN DUST
|
0.5720(lbs); 0.260
|
| 040. |
6C04094230
|
[1] |
RETAINER ELEMENT
|
0.1078(lbs); 0.049
|
| 050. |
6C04094240
|
[1] |
ELEMENT OUTER
|
0.6600(lbs); 0.300
|
| 060. |
6C04094250
|
[1] |
ELEMENT INNER
|
0.2376(lbs); 0.108
|
| 070. |
6C04094260
|
[2] |
NUT WING
|
0.0022(lbs); 0.001
|
| 080. |
6C04094290
|
[1] |
LABEL
|
0.0440(lbs); 0.020
|
| 090. |
1522287480
|
[1] |
LABEL ELEMENT A/C
|
0.0022(lbs); 0.001
|
| 100. |
6C04094102
|
[1] |
ASSY BRACKET A/C
|
1.1660(lbs); 0.530
|
| 110. |
6740154280
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
| 120. |
6740154290
|
[1] |
BAND AIR CLEANER
|
0.1320(lbs); 0.060
|
