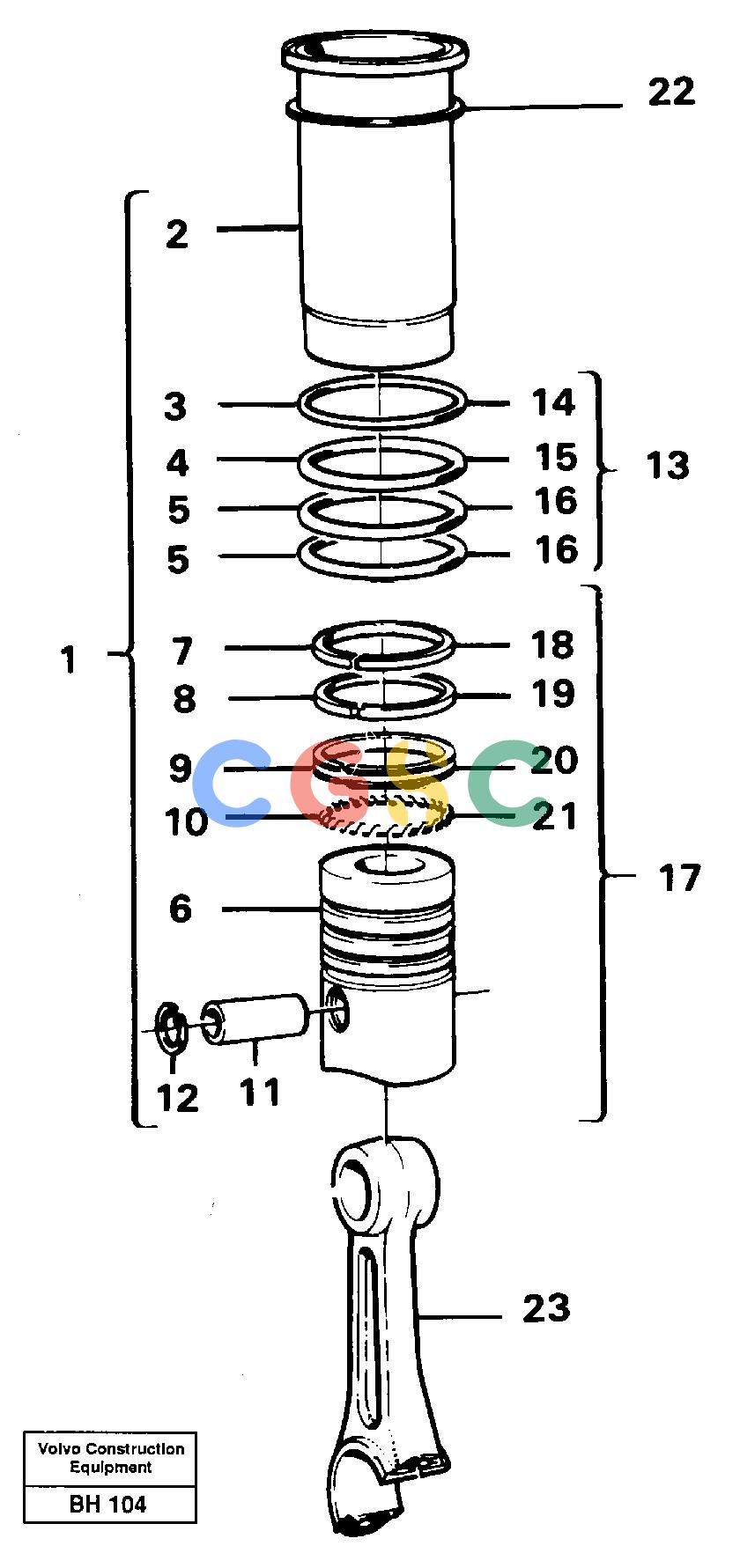

沃尔沃零件查询A20C VOLVO BM Cylinder liner and pistonVOLVO BM A20C SER NO - 3051TD 71KF-TD 73KFENoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE275628
|
[6] |
Cylinder liner kit
|
ENG - 97292
|
| |
VOE11704454
|
[6] |
Cylinder liner kit
|
ENG 97293 -
|
| |
VOE275641
|
|
Cylinder liner kit
|
ENG - 97292
|
| |
VOE276900
|
|
Cylinder liner kit
|
ENG 97293 -
|
| 2. |
VOE3978520
|
[1] |
Cylinder liner
|
|
| |
VOE3978530
|
|
Cylinder Liner
|
|
| 3. |
|
[1] |
Seal ring
|
|
| 4. |
|
[1] |
Seal ring
|
|
| 5. |
|
[2] |
Seal ring
|
|
| 6. |
|
[1] |
Piston
|
|
| 7. |
|
[1] |
Compression ring
|
|
| 8. |
|
[1] |
Piston ring
|
|
| 9. |
|
[1] |
Oil ring
|
|
| 10. |
|
[1] |
Expanding ring
|
|
| 11. |
VOE3978588
|
[1] |
Gudgeon pin
|
ENG - 97292
|
| |
VOE3978588
|
[1] |
Gudgeon pin
|
ENG 97293 -
|
| |
VOE3978589
|
|
Gudgeon pin
|
|
| 12. |
VOE914525
|
[2] |
Retaining ring
|
|
| 13. |
VOE271159
|
[1] |
Sealing ring kit
|
|
| 14. |
|
[1] |
Sealing strip
|
|
| 15. |
|
[1] |
Sealing strip
|
|
| 16. |
|
[2] |
Sealing strip
|
|
| 17. |
VOE271117
|
[6] |
Piston ring kit
|
|
| |
VOE276037
|
|
Piston ring kit
|
|
| 18. |
|
[1] |
Compression ring
|
|
| 19. |
|
[1] |
Piston ring
|
|
| 20. |
|
[1] |
Oil ring
|
|
| 21. |
|
[1] |
Expanding ring
|
|
| 22. |
VOE466878
|
[REQ] |
Shim
|
THICK = 0,12 MM
|
| |
VOE466114
|
[REQ] |
Shim
|
THICK = 0,20 MM
|
| |
VOE466183
|
[REQ] |
Shim
|
THICK = 0,30 MM
|
| |
VOE466184
|
[REQ] |
Shim
|
THICK = 0,50 MM
|
| 23. |
|
[1] |
Connecting rod
|
|
