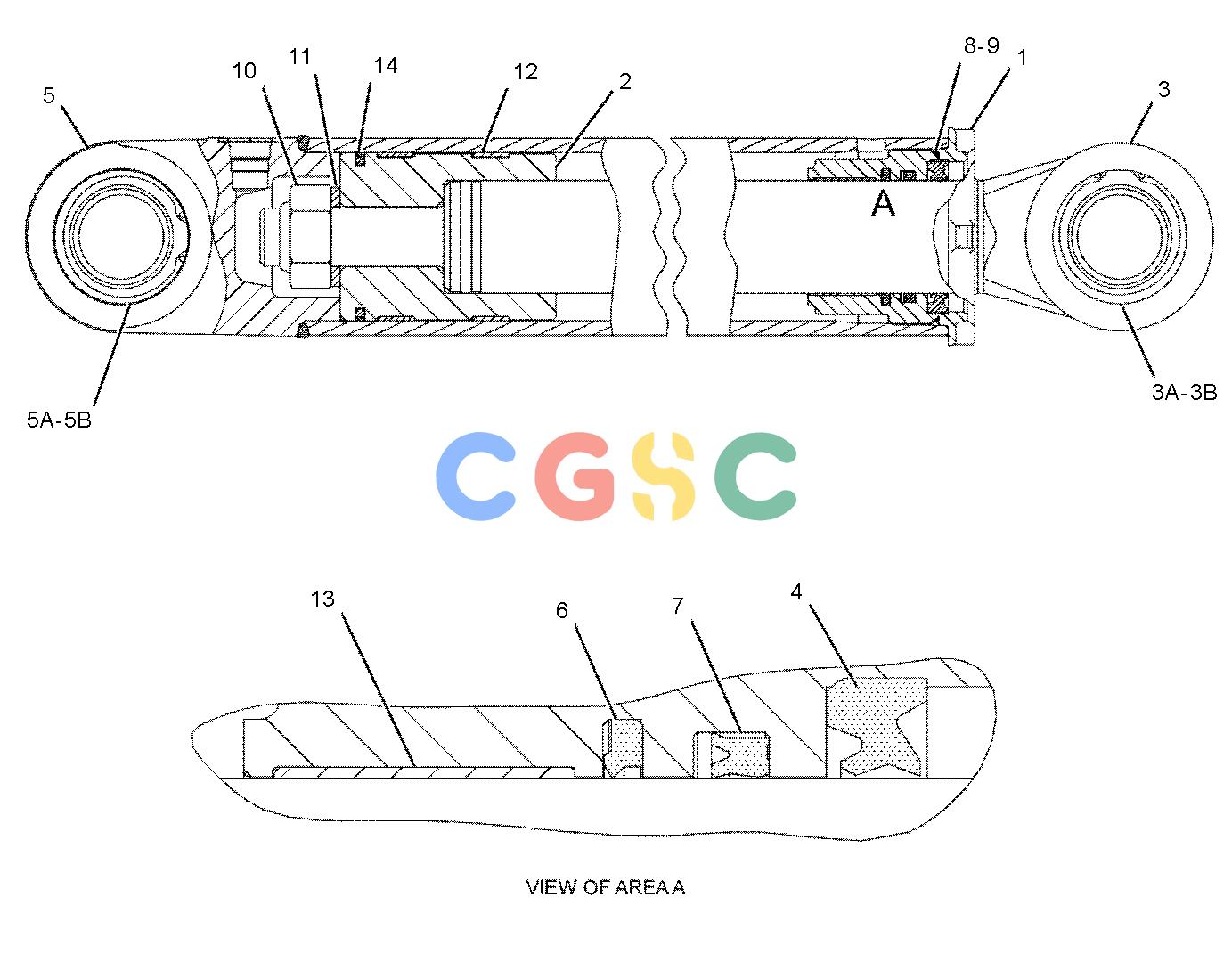

卡特零件查询（725） 241-4071: CYLINDER GP-HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 141-4337 | [1] | HEAD | |
| | 225-3284 | [1] | SEAL-WIPER | |
| 2. | 141-4338 | [1] | PISTON | |
| 3. | 141-4339 | [1] | ROD AS | |
| 3A. | 1J-6472 | [2] | RING-RETAINING | |
| 3B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| | | | -OR- |
| | 319-2447A | [1] | BEARING-SELF-ALIGNING | |
| 4. | 225-3284 | [1] | SEAL-WIPER | |
| 5. | 241-4072 | [1] | CYLINDER AS | |
| 5A. | 1J-6472 | [2] | RING-RETAINING | |
| 5B. | 066-5815 | [1] | BEARING-SELF-ALIGNING | |
| | | | -OR- |
| | 319-2447A | [1] | BEARING-SELF-ALIGNING | |
| 6. | 167-2208 | [1] | SEAL AS-BUFFER | |
| 7. | 167-2319 | [1] | SEAL-U-CUP | |
| 8. | 175-7902 | [1] | SEAL-O-RING | |
| 9. | 1K-7095 | [1] | RING-BACKUP | |
| 10. | 2U-2576 | [1] | NUT(1-1/2-6-THD) | |
| 11. | 3S-6162 | [1] | WASHER-HARD(40.5X67X6-MM THK) | |
| 12. | 4J-3745 | [2] | RING-WEAR | |
| 13. | 8T-7584 | [1] | RING-WEAR | |
| 14. | 9X-7269 | [1] | SEAL AS | |
| | A | | NOT PART OF THIS GROUP |
