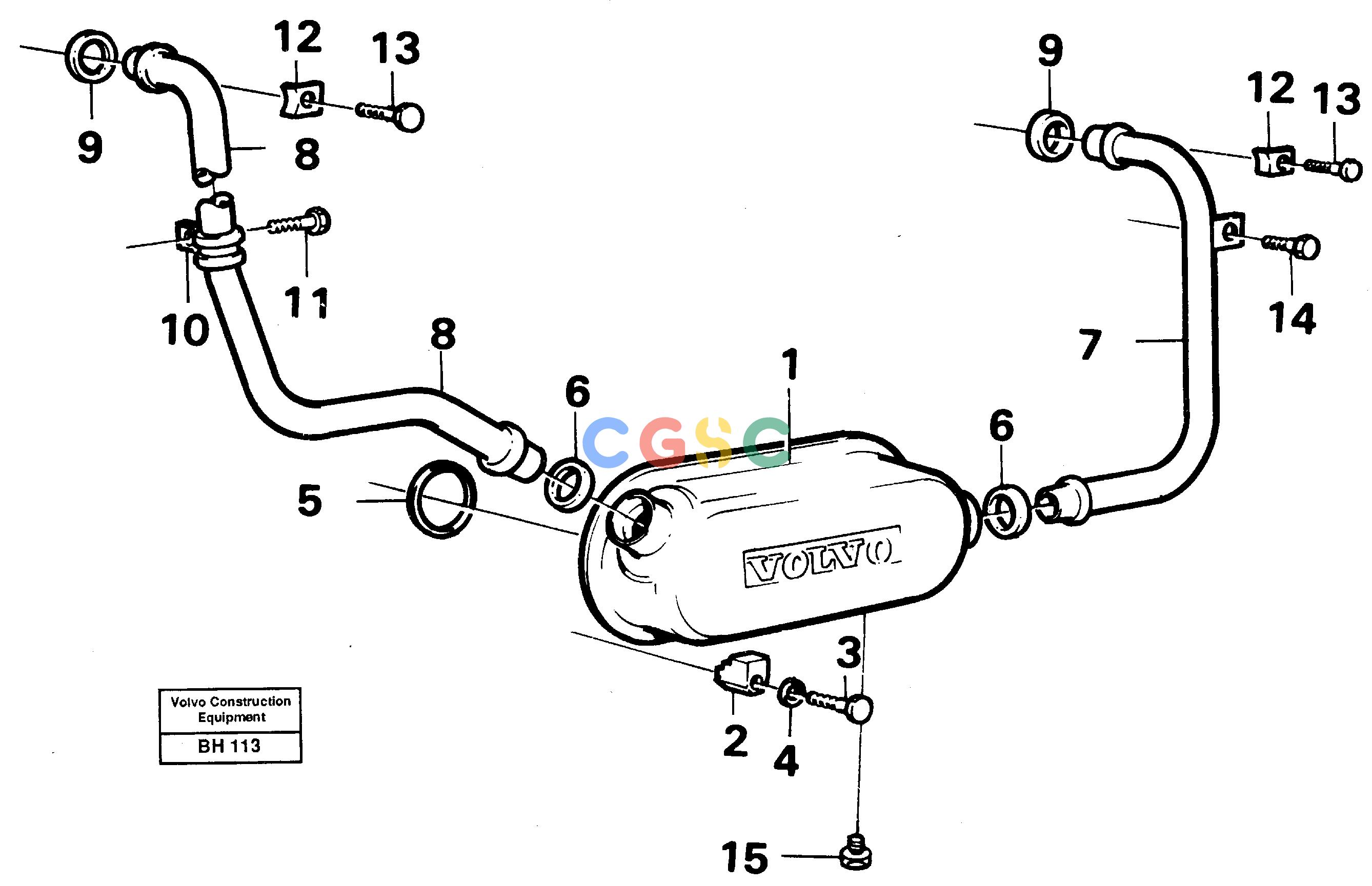

沃尔沃零件查询A20C VOLVO BM Oil coolerVOLVO BM A20C SER NO - 3051 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1661254
|
[1] |
Oil cooler
|
|
| 2. |
VOE471804
|
[4] |
Retainer
|
|
| 3. |
VOE60113098
|
[4] |
Flange screw
|
|
| 4. |
VOE941908
|
[4] |
Spring washer
|
|
| 5. |
VOE471467
|
[2] |
Sealing ring
|
|
| 6. |
VOE471708
|
[2] |
Sealing ring
|
|
| 7. |
VOE3978502
|
[1] |
Coolant pipe
|
|
| 8. |
VOE849673
|
[1] |
Tube
|
|
| 9. |
VOE471637
|
[2] |
Sealing ring
|
|
| 10. |
VOE968508
|
[1] |
Clamp
|
|
| 11. |
VOE946440
|
[1] |
Flange screw
|
|
| 12. |
VOE421654
|
[00 1] |
Clamp
|
|
| |
VOE11030819
|
[1] |
Clamp
|
|
| 13. |
VOE946440
|
[1] |
Flange screw
|
|
| |
VOE13949846
|
[1] |
Screw
|
|
| 14. |
VOE946471
|
[1] |
Flange screw
|
|
| 15. |
VOE479979
|
[1] |
Plug
|
|
