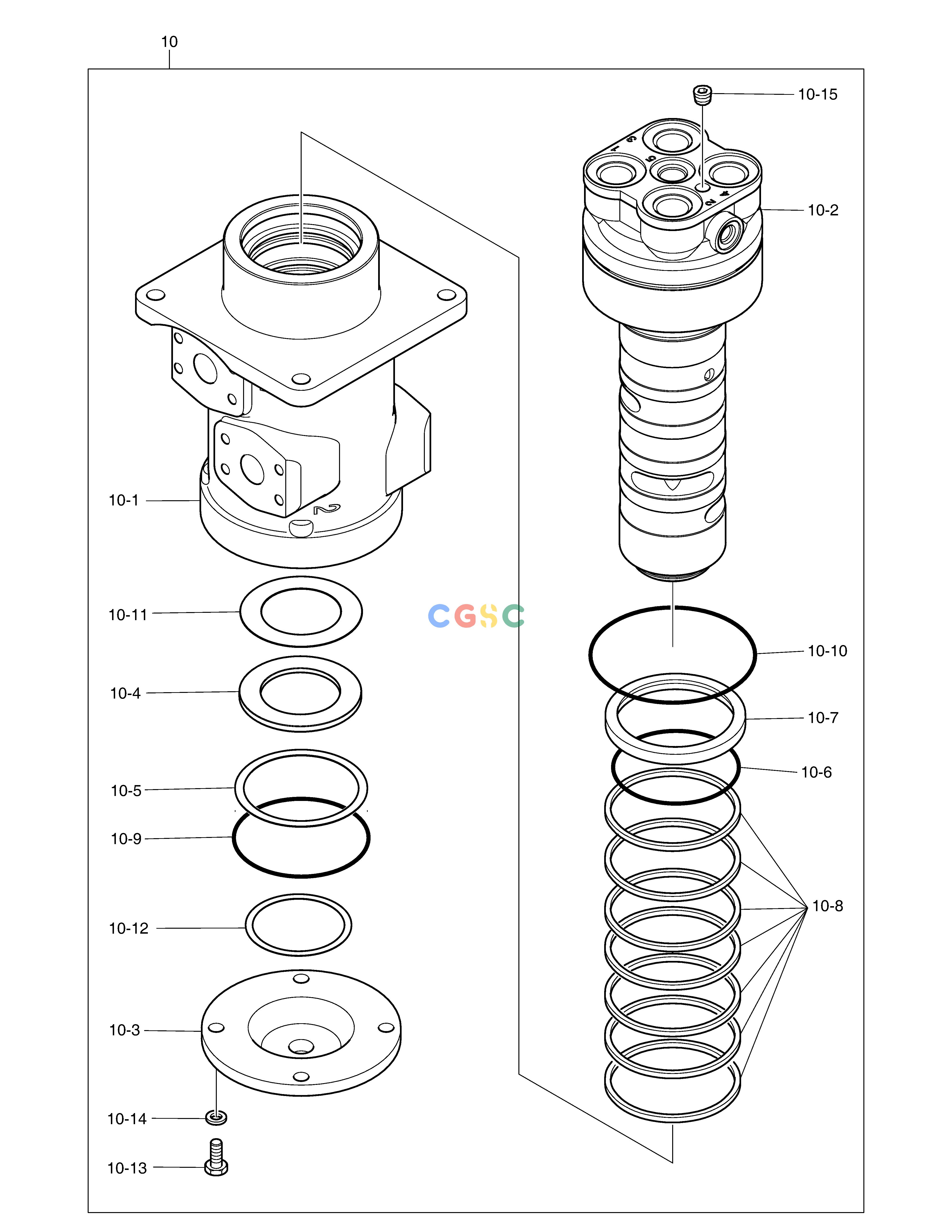

斗山零件查询CENTER JOINT DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01330
|
[1] |
SEAL KIT
|
|
| -. |
160617-00266
|
[-] |
|
|
| 1. |
400826-00011A
|
[1] |
JOINT,CENTER
|
|
| 1-1. |
900122-00112
|
[1] |
. HUB
|
|
| 1-10. |
S8001050
|
[1] |
. O-RING
|
|
| 1-11. |
K9006884
|
[1] |
. SHIM
|
|
| 1-12. |
K9006883
|
[1] |
. SHIM
|
|
| 1-13. |
S0515253
|
[4] |
. BOLT
|
|
| 1-14. |
S5102703
|
[4] |
WASHER
|
|
| 1-15. |
2181-1116D2
|
[1] |
PLUG
|
|
| 1-2. |
130713-01619
|
[1] |
. SPINDLE
|
|
| 1-3. |
K1038793
|
[1] |
. COVER
|
|
| 1-4. |
K1038794
|
[1] |
. SPACER
|
|
| 1-5. |
S6500600
|
[1] |
. RING,RETAINER
|
|
| 1-6. |
S8000801
|
[1] |
. O-RING
|
|
| 1-7. |
NA03899
|
[1] |
. SEAL,DUST
|
|
| 1-8. |
NA01100
|
[7] |
. SEAL,SLIPPER
|
|
| 1-9. |
S8011000
|
[1] |
. O-RING
|
|
