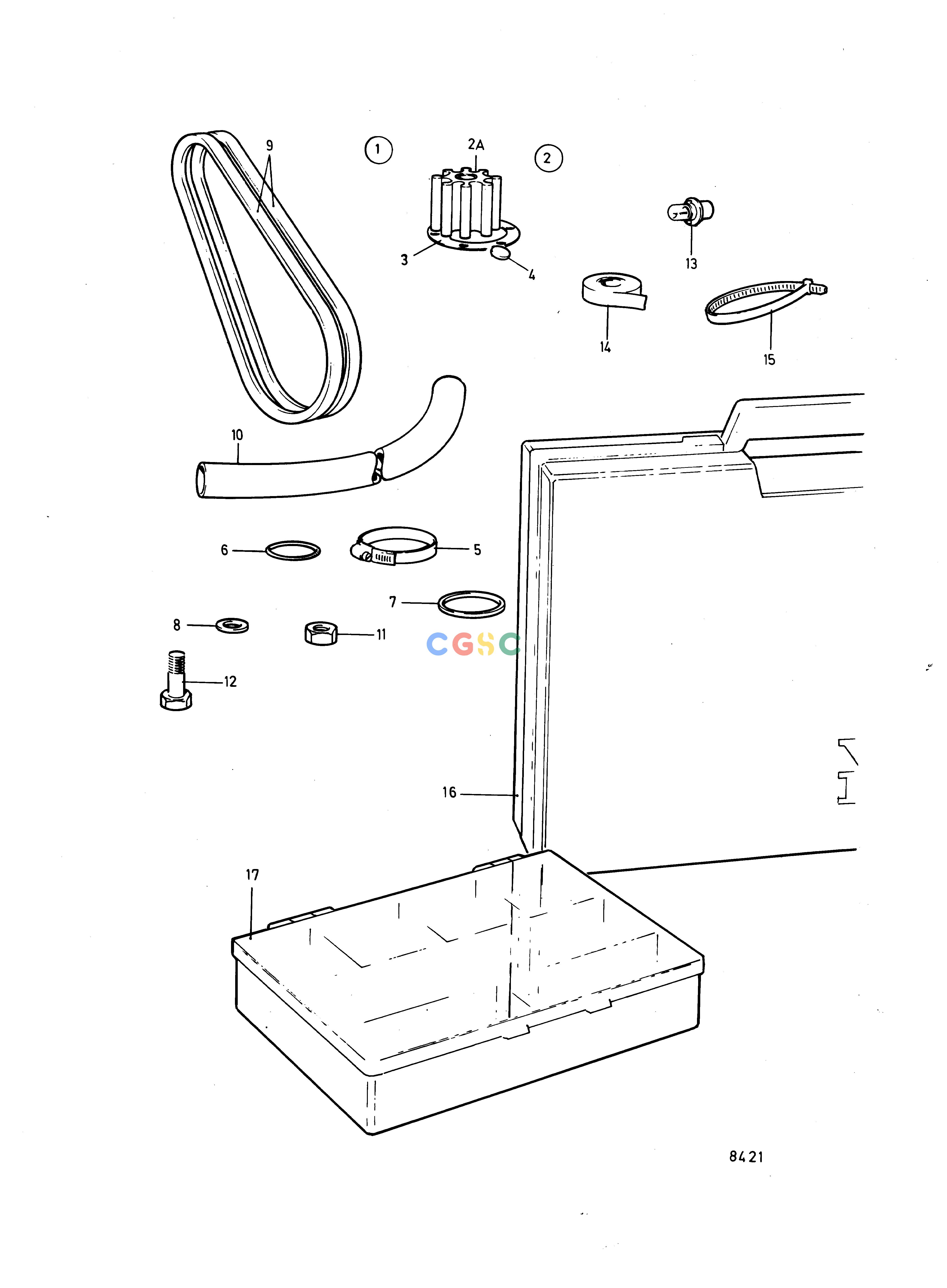

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentOn Board KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858632
|
[1] |
Onboard kit
|
|
| 2. |
875593
|
[1] |
Impeller kit
|
|
| 2A. |
|
|
|
Repl by 875593
|
| 3. |
808275
|
[1] |
Gasket
|
L=2X1100mm
|
| 4. |
827019
|
[2] |
Washer
|
L=500mm
|
| 5. |
994559
|
[4] |
Hose clamp
|
|
| 5. |
994561
|
[2] |
Hose clamp
|
|
| 6. |
949658
|
[3] |
O-ring
|
|
| 7. |
858986
|
[4] |
Sealing ring
|
(842744)
|
| 7. |
842913
|
[2] |
Sealing ring
|
|
| 8. |
957171
|
[20] |
Gasket
|
|
| 8. |
11994
|
[10] |
Gasket
|
|
| 9. |
958359
|
[1] |
V-belt
|
|
| 10. |
944386
|
[1] |
Rubber hose
|
|
| 11. |
955782
|
[2] |
Hexagon nut
|
For fuel injector.
|
| 12. |
21951334
|
[1] |
Screw kit
|
|
| 13. |
19923
|
[4] |
Bulb
|
|
| 14. |
858283
|
[1] |
Tape
|
|
| 15. |
948210
|
[10] |
Cable tie
|
|
| 16. |
858631
|
[1] |
Bag
|
|
| 17. |
858284
|
[1] |
Box
|
|
