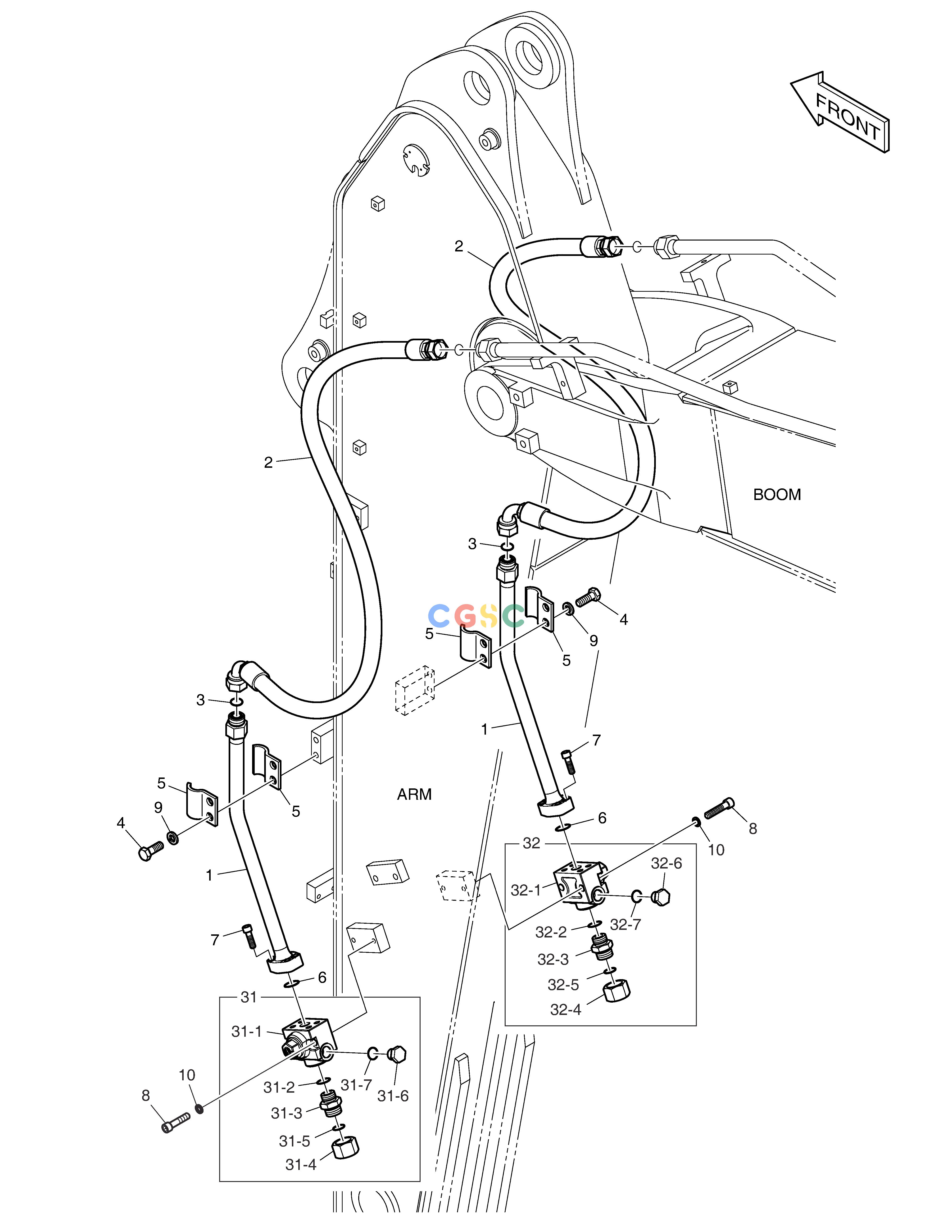

斗山零件查询ARM PIPING - ONE & TWO WAY(ARM 2.5m) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02413
|
[-] |
|
|
| 1. |
420207-00556A
|
[2] |
|
|
| 10. |
S5110703
|
[4] |
WASHER
|
|
| 2. |
2184-1197D24
|
[2] |
HOSE
|
|
| 3. |
S8030121
|
[2] |
O-RING
|
|
| 31. |
410137-00059B
|
[1] |
VALVE ASSY,STOP;(L.H)
|
|
| 31-1. |
410137-00073B
|
[1] |
. VALVE,STOP(L.H)
|
|
| 31-2. |
S8000231
|
[1] |
O-RING
|
|
| 31-3. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 31-4. |
2181-2817D1
|
[1] |
. CAP
|
|
| 31-5. |
S8030121
|
[1] |
O-RING
|
|
| 31-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 31-7. |
S8000181
|
[1] |
O-RING
|
|
| 32. |
410137-00060B
|
[1] |
VALVE ASSY,STOP;(R.H)
|
|
| 32-1. |
410137-00075B
|
[1] |
. VALVE,STOP(R.H)
|
|
| 32-2. |
S8000231
|
[1] |
O-RING
|
|
| 32-3. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 32-4. |
2181-2817D1
|
[1] |
. CAP
|
|
| 32-5. |
S8030121
|
[1] |
O-RING
|
|
| 32-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 32-7. |
S8000181
|
[1] |
O-RING
|
|
| 4. |
S0562766
|
[4] |
BOLT
|
|
| 5. |
124-00303
|
[4] |
CLAMP
|
|
| 6. |
2180-1026D2
|
[2] |
O-RING
|
|
| 7. |
S2212366
|
[8] |
BOLT
|
|
| 8. |
S2215766
|
[4] |
BOLT
|
|
| 9. |
120804-00080
|
[4] |
WASHER
|
|
