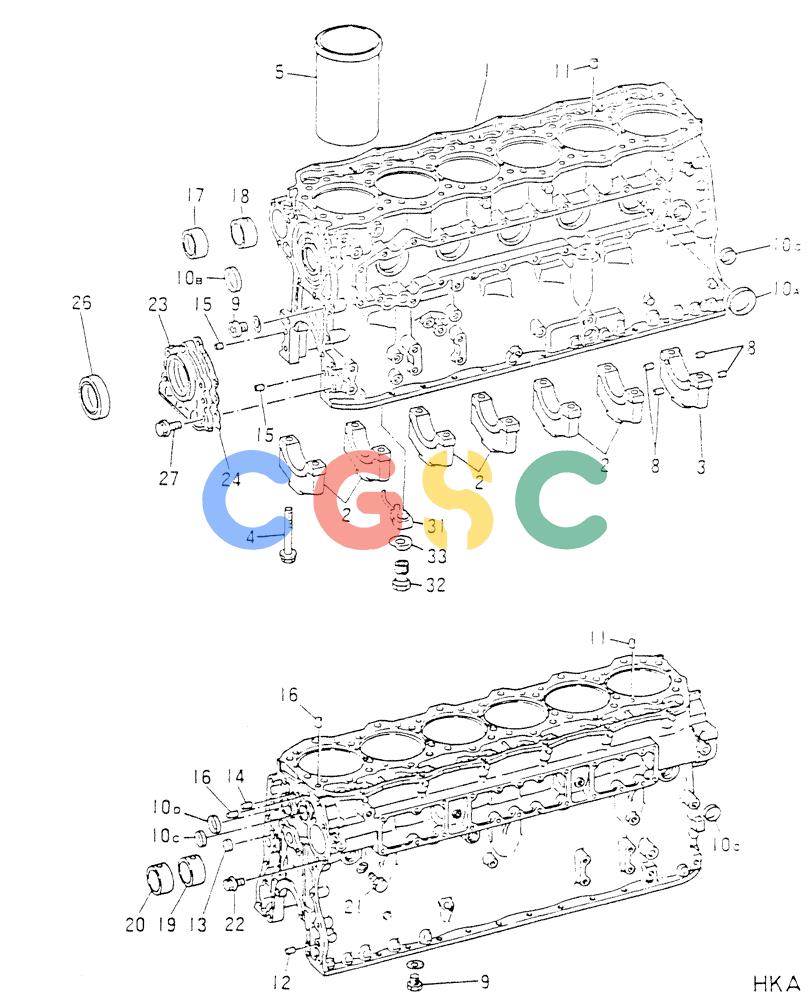

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-002) - CYLINDER BLOCK Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
714 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKCASE,CF (GN450-800K) |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP,BRG,FR & MI,CF (GN450-800K) |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONCAP,BRG,RE,CF (GN450-600K) |
| 4. | VAME031865 | [14] | SCREW | KOBBOLT,MAIN CAP 14X108 |
| 5. | VAME041102 | [6] | LINER, ENGINE CYLIND | KOBLINER,CYL, A SIZE 1, (ME04UEl) |
| 5. | VAME041103 | [1] | LINER, ENGINE CYLIND | KOBLINER,CYL, A SIZE 2 |
| 5. | VAME041104 | [1] | LINER, ENGINE CYLIND | KOBLINER,CYL, A SIZE 3 |
| 5. | VAME041105 | [1] | LINER, ENGINE CYLIND | KOBLINER,CYL, B SIZE 1 |
| 5. | VAME041106 | [1] | LINER, ENGINE CYLIND | KOBLINER,CYL, B SIZE 2 |
| 5. | VAME041107 | [1] | LINER, ENGINE CYLIND | KOBLINER,CYL, B SIZE 3 |
| 8. | VAMH012041 | [6] | PIN | KOBPIN,SPG 4X10 |
| 9. | VAMH037137 | [2] | PLUG | KOBPLUG 20 |
| . . | VAMF660068 | [2] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 10A. | VAME041108 | [5] | CAP | KOBCAP,SEARING 50 |
| 10B. | VAMH037754 | [1] | CAP | KOBCAP,SEARING 50 |
| I0C. | VAMS666139 | [9] | CAP | KOBCAP,SEARING 30 |
| 10D. | VAMS666142 | [1] | CAP | KOBCAP,SEARIKG45 |
| 11. | VAMH012024 | [2] | PIN | KOBPIN,SPG 10X20 |
| 12. | VAMH007011 | [1] | PIN | KOBPIN,DOWEL 12X34 Superseded by part number: 132324A1 |
| 13. | VAMF665535 | [1] | CAP | KOBCAP,SEALING 18 |
| 14. | VAMH007010 | [1] | PIN | KOBPIN,DOWEL 12X17 |
| 15. | VAMF472404 | [2] | DOWEL | KOBPIN, 8X18 Superseded by part number: MF472404 |
| 16. | VAMH037082 | [2] | PLUG PLUG 6 .5X8. | PLUG PLUG 6 .5X8. |
| 17. | VAME031042 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO-1 |
| 18. | VAME031043 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO-2 |
| 19. | VAME031044 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO-3 |
| 20. | VAME031096 | [1] | BUSHING | KOBBUSHING,CAMSHAFT NO-4 |
| 21. | VAME031087 | [3] | SET OF SCREWS | KOBSCREW,SET |
| . . | VAMF660063 | [3] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 22. | VAMH000713 | [5] | BOLT | KOBBOLT,FLANGE 10X20 |
| 23. | VAME031048 | [1] | COVER COVER,FR | COVER COVER,FR |
| 24. | VAME031049 | [1] | GASKET | KOBGASKET,FR COVER Superseded by part number: VAME071268, 77269045 |
| 26. | VAME031543 | [1] | OIL SEAL | KOBOILSEAL.FR |
| 27. | VAMH000843 | [5] | SCREW | KOBBOLT,FLANGE 12X25 Superseded by part number: 132385A1 |
| 31. | VAME030800 | [6] | JET BOLT,OIL JET | JET BOLT,OIL JET |
| 32. | VAME031518 | [6] | VALVE VALVE,CHECK | VALVE VALVE,CHECK |
| 33. | VAME031086 | [6] | WASHER | KOBWASHER,LOCK |
