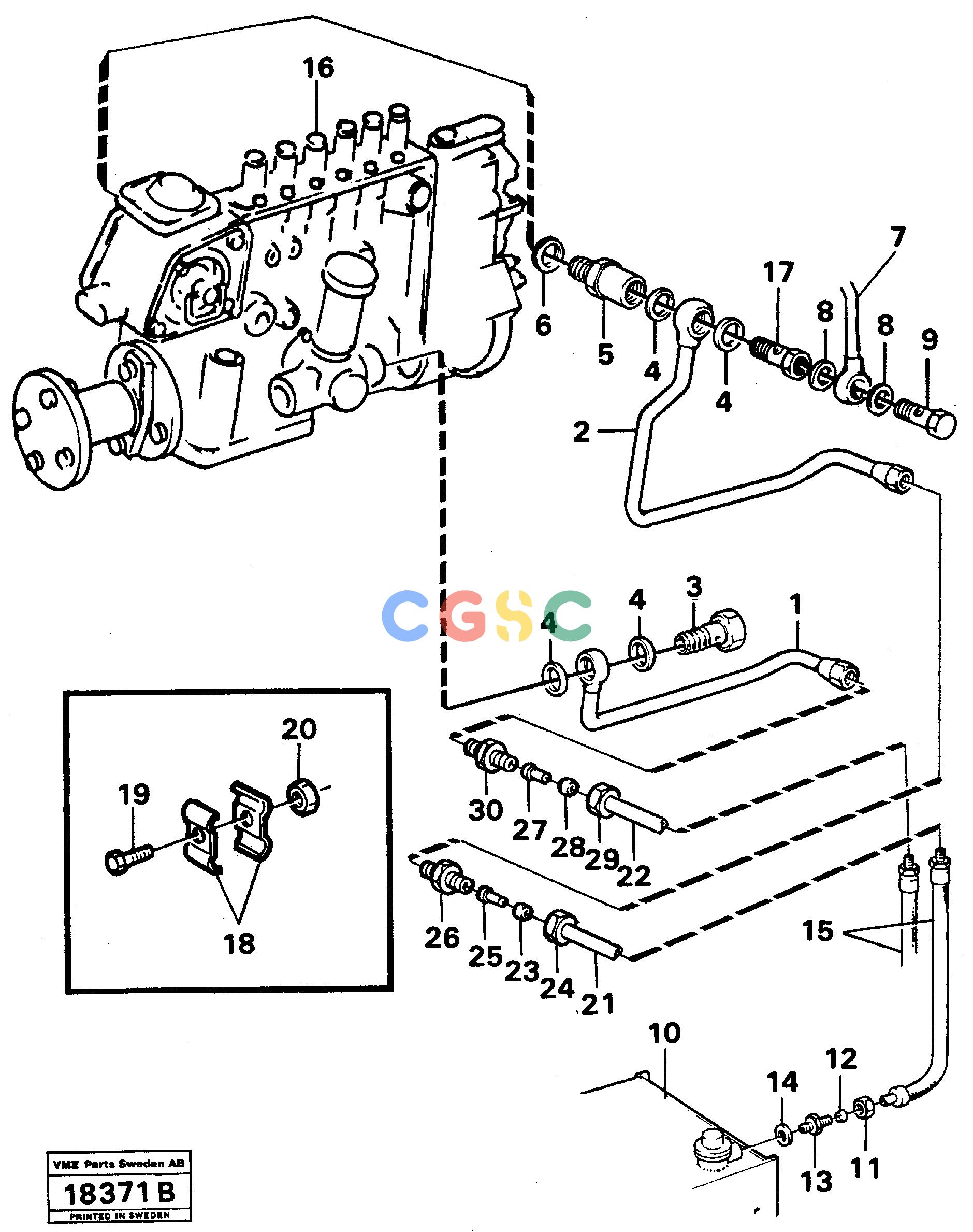

沃尔沃零件查询A25 VOLVO BM Fuel pipe - fuel tankVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE479775
|
[1] |
Overflow valve
|
|
| 6. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 7. |
VOE848523
|
[1] |
Leak-off line
|
|
| 8. |
VOE947620
|
[2] |
Gasket
|
|
| 9. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 1. |
VOE11030583
|
[1] |
Fuel pipe
|
|
| 10. |
|
[1] |
Fuel tank
|
|
| 11. |
VOE956983
|
[2] |
Fitting nut
|
SER NO - 4847
|
| 12. |
VOE980781
|
[2] |
Ferrule
|
SER NO - 4847
|
| 13. |
VOE941754
|
[2] |
Nipple
|
SER NO - 4847
|
| 14. |
VOE957178
|
[2] |
Gasket
|
|
| 15. |
VOE4737702
|
[2] |
Fuel hose
|
SER NO - 4847
|
| 16. |
|
[1] |
Fuel pump
|
|
| 17. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 18. |
VOE404279
|
[8] |
Clamp
|
|
| 19. |
VOE956097
|
[0004] |
Cross recessed screw
|
M6X25
|
| 2. |
VOE4772216
|
[1] |
Fuel pipe
|
|
| 20. |
VOE13955781
|
[0004] |
Nut
|
|
| 21. |
VOE13945461
|
[REQ] |
Plastic pipe
|
SER NO 4848 -
|
| |
|
|
None
|
L = 435
|
| 22. |
VOE945462
|
[REQ] |
Tube
|
SER NO 4848 -
|
| |
|
|
None
|
L = 430
|
| 23. |
VOE326599
|
[0001] |
Ferrule
|
SER NO 4848 -
|
| 24. |
VOE326596
|
[0001] |
Fitting nut
|
SER NO 4848 -
|
| 25. |
VOE967559
|
[0001] |
Sleeve
|
SER NO 4848 -
|
| 26. |
VOE13945426
|
[0001] |
Nipple
|
SER NO 4848 -
|
| 27. |
VOE967548
|
[0001] |
Support sleeve
|
SER NO 4848 -
|
| 3. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 28. |
VOE326600
|
[0001] |
Sleeve
|
SER NO 4848 -
|
| 29. |
VOE326597
|
[0001] |
Fitting nut
|
SER NO 4848 -
|
| 30. |
VOE13945562
|
[0001] |
Nipple
|
SER NO 4848 -
|
| 4. |
VOE13947621
|
[4] |
Plane gasket
|
|
