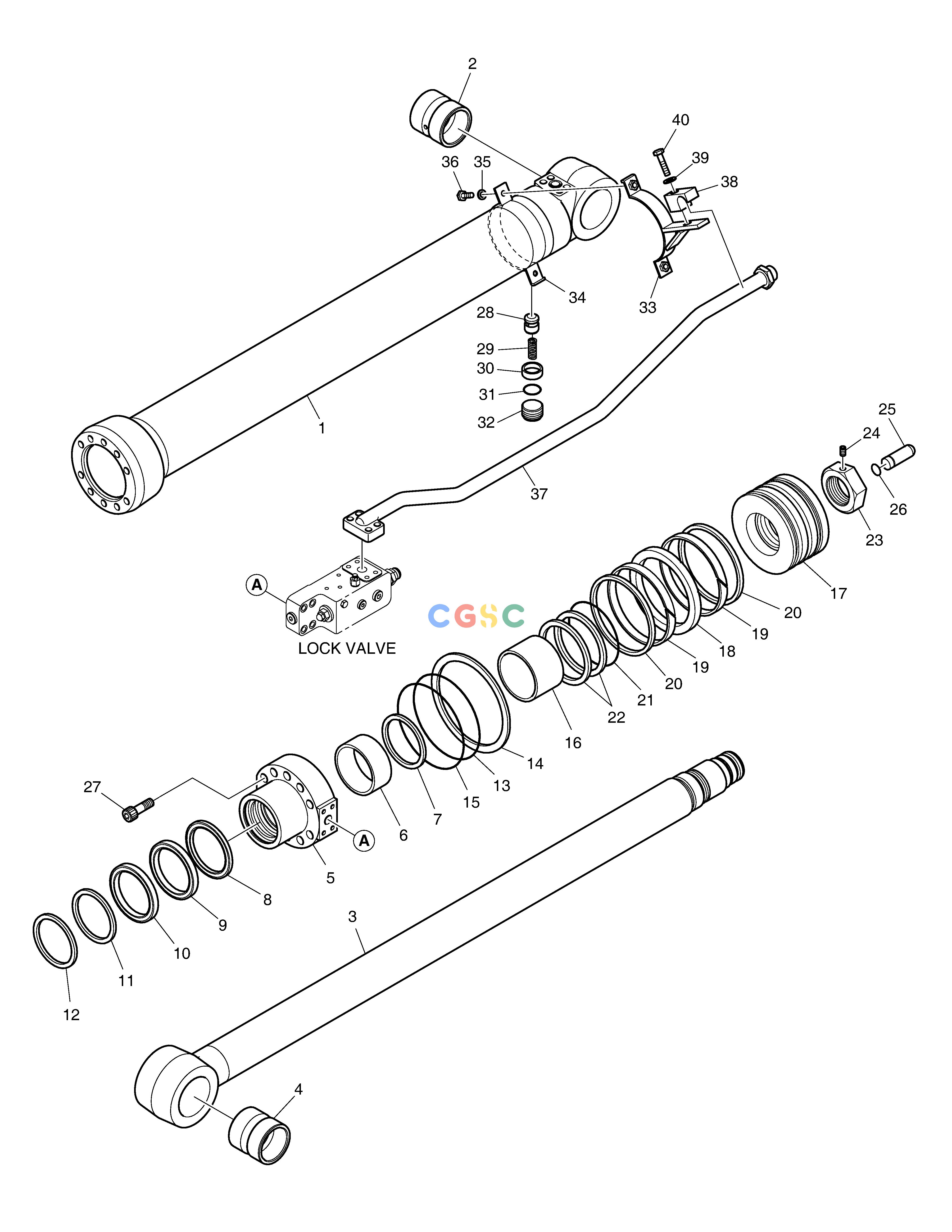

斗山零件查询ARM CYLINDER - ARTI BOOM(LOCK V/V) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00157A
|
[1] |
|
|
| -. |
400305-00074B
|
[1] |
|
|
| 1. |
420406-00756
|
[1] |
|
|
| 10. |
K9001404
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00084
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011101
|
[1] |
O-RING
|
|
| 14. |
K9001405
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011151
|
[1] |
O-RING
|
|
| 16. |
K9001406
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001407
|
[1] |
PISTON
|
|
| 18. |
K9001408
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00085
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00042B
|
[1] |
|
|
| 20. |
K9001409
|
[2] |
RING;DUST
|
|
| 21. |
180-00276
|
[1] |
O-RING
|
|
| 22. |
K9001410
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00047
|
[1] |
|
|
| 24. |
S3523738
|
[1] |
SCREW;SET
|
|
| 25. |
410205-00039
|
[1] |
|
|
| 26. |
115-00081
|
[1] |
RING;STOP
|
|
| 27. |
S2222171
|
[10] |
BOLT
|
|
| 28. |
1.420-00039
|
[1] |
VALVE;CHECK
|
|
| 29. |
1.131-00009
|
[1] |
SPRING
|
|
| 3. |
400337-00347
|
[1] |
|
|
| 30. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 31. |
S8000141
|
[1] |
O-RING
|
|
| 32. |
430221-00136
|
[1] |
PLUG
|
|
| 33. |
110902-00085
|
[1] |
|
|
| 34. |
1.124-00016
|
[1] |
|
|
| 35. |
S5100603
|
[2] |
WASHER
|
|
| 36. |
S0558153
|
[2] |
BOLT
|
|
| 37. |
420210-00899
|
[1] |
|
|
| 38. |
K9001413
|
[1] |
CLAMP;PIPE
|
|
| 39. |
S5102903
|
[1] |
WASHER
|
|
| 4. |
131008-00042B
|
[1] |
|
|
| 40. |
S0565451
|
[1] |
BOLT
|
|
| 5. |
K9001400B
|
[1] |
|
|
| 6. |
K9009862
|
[1] |
DD-BUSH
|
|
| 7. |
K9001401
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001402
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001403
|
[1] |
U-PACKING
|
|
