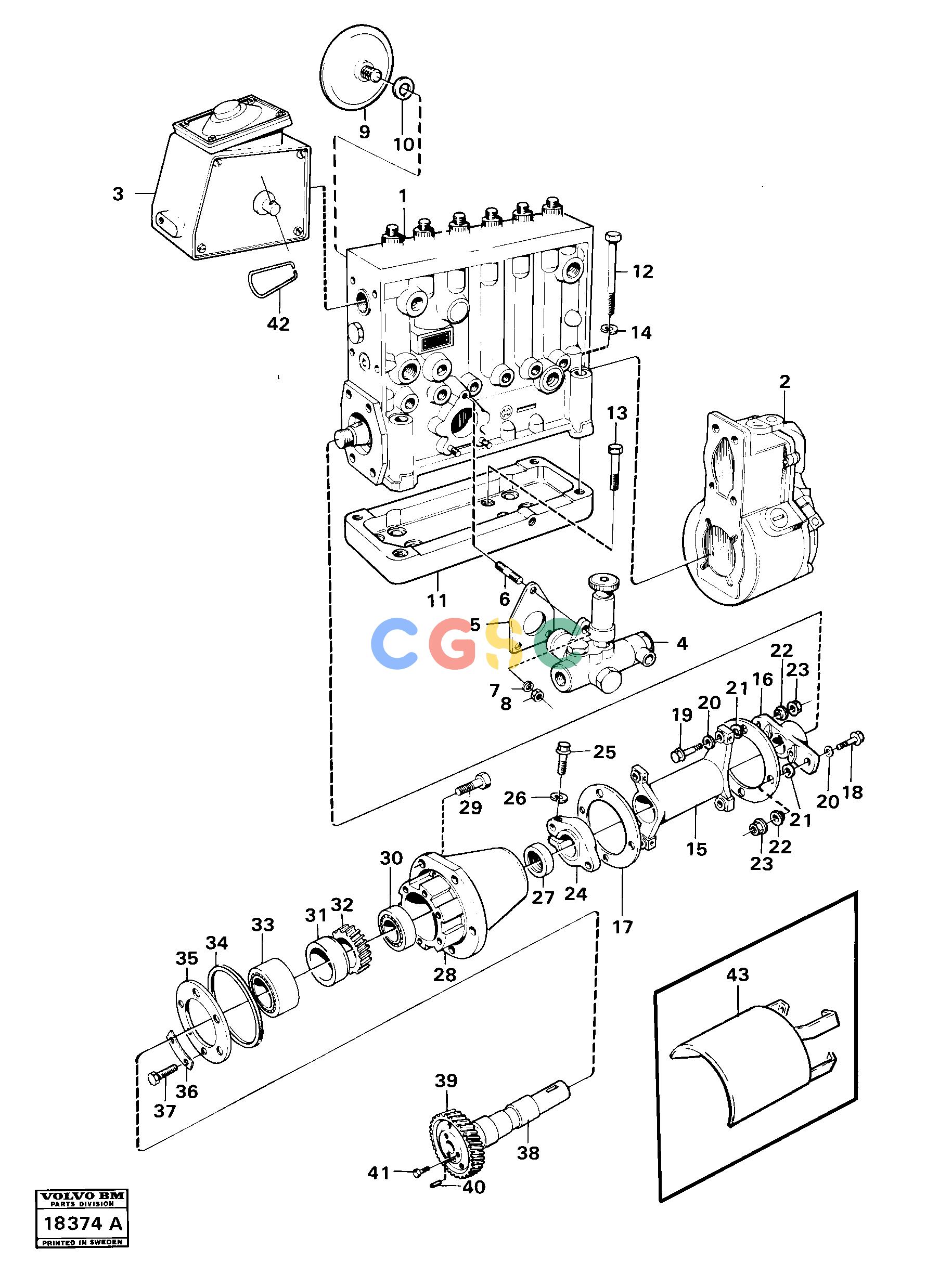

沃尔沃零件查询A25 VOLVO BM Fuel injection pump with fitting partsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
|
None
|
|
| 40. |
VOE950586
|
[0001] |
Pin
|
|
| 41. |
VOE471558
|
[0003] |
Screw
|
M10
|
| 42. |
VOE422525
|
[0001] |
Towing eye
|
|
| 43. |
VOE4772263
|
[0001] |
Protection
|
SER NO - 5435
|
| |
VOE11030575
|
[0001] |
Protecting plate
|
SER NO 5436 -
|
| |
VOE11030576
|
[0001] |
Attachment
|
SER NO 5436 -
|
| |
VOE60113082
|
[0003] |
Flange screw
|
SER NO - 5435
|
| |
VOE946440
|
[0003] |
Flange screw
|
SER NO 5436 -
|
| |
VOE949115
|
[0003] |
Plain washer
|
SER NO - 5435
|
| 2. |
VOE11991550
|
[0001] |
Centrifugal governor
|
|
| |
VOE11991649
|
[0001] |
Centrifugal governor
|
|
| |
|
|
None
|
|
| 3. |
VOE243257
|
[1] |
Smoke limiter
|
|
| |
VOE4881662
|
[0001] |
Injection pump
|
|
| 4. |
VOE11992862
|
[1] |
Feed pump
|
|
| 5. |
|
[1] |
Gasket
|
|
| 6. |
|
[3] |
Stud
|
|
| 7. |
|
[3] |
Spring washer
|
|
| 8. |
|
[3] |
Nut
|
|
| 9. |
VOE477173
|
[1] |
Pressure equalizer
|
|
| 10. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 11. |
VOE477773
|
[1] |
Bracket
|
|
| |
VOE11030550
|
[0001] |
Injection pump
|
|
| 12. |
VOE13965189
|
[4] |
Screw
|
M10 X 90
|
| 13. |
VOE13965185
|
[4] |
Screw
|
M10 X 40
|
| 14. |
VOE941908
|
[4] |
Spring washer
|
|
| 15. |
VOE471368
|
[1] |
Intmd Section
|
|
| 16. |
VOE471312
|
[1] |
Companion flange
|
|
| 17. |
VOE479459
|
[6] |
Companion disc
|
|
| 18. |
VOE946470
|
[4] |
Flange screw
|
|
| 19. |
VOE946470
|
[4] |
Flange screw
|
|
| 20. |
VOE13960141
|
[8] |
Washer
|
|
| 1. |
VOE11993953
|
[0001] |
Injection Pump
|
|
| 21. |
VOE955896
|
[0008] |
Plain washer
|
|
| 22. |
VOE478896
|
[0008] |
Sleeve
|
|
| 23. |
VOE13945408
|
[0008] |
Nut
|
|
| 24. |
VOE471383
|
[0001] |
Companion flange
|
|
| 25. |
VOE13970878
|
[1] |
Hexagon screw
|
|
| 26. |
VOE976945
|
[1] |
Washer
|
|
| 27. |
VOE424580
|
[1] |
Seal
|
|
| 28. |
VOE471556
|
[1] |
Bearing housing
|
|
| 29. |
VOE13945444
|
[4] |
Screw
|
M8 X 25
|
| |
VOE13965216
|
[1] |
Screw
|
M8 X 55
|
| |
VOE11991648
|
[0001] |
Injection Pump
|
|
| 30. |
VOE7011013
|
[1] |
Bearing
|
|
| 31. |
VOE469363
|
[1] |
Stop ring
|
|
| 32. |
VOE469364
|
[1] |
Drive Gear
|
|
| 33. |
VOE11000284
|
[1] |
Ball bearing
|
|
| 34. |
VOE423123
|
[1] |
Sealing ring
|
|
| 35. |
VOE423074
|
[1] |
Washer
|
|
| 36. |
VOE955892
|
[6] |
Plain washer
|
|
| 37. |
VOE60111867
|
[6] |
Hexagon screw
|
M6 X 20
|
| 38. |
VOE471557
|
[0001] |
Shaft
|
|
| 39. |
VOE478297
|
[0001] |
Gear
|
|
