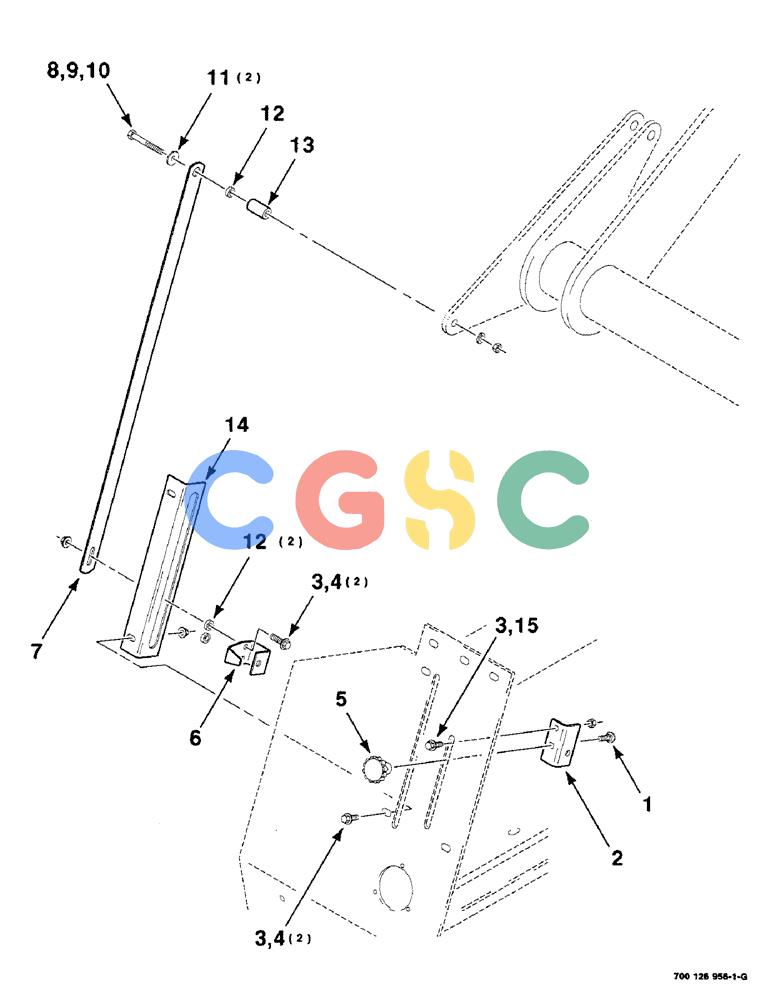

凯斯零件查询(8455T) - CASE IH ROUND BALER W/TRACTOR HYDRAULICS (1/92-12/97) (6-02) - INDICATOR ASSEMBLY, BALE SIZE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 2. |
700115974
|
[1] |
SUPPORT
|
HFI
- switch
|
| 3. |
121-115
|
[5] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 4. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 5. |
700707234
|
[1] |
BUTTON
|
IH
KNOB
|
| 6. |
700115976
|
[1] |
INDICATOR
|
HFI
|
| 7. |
700115990
|
[1] |
LINK
|
HFI
|
| 8. |
413-540
|
[1] |
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 72187202, 88346
|
| 9. |
492-11031
|
[1] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 10. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 11. |
495-61034
|
[2] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 12. |
700115973
|
[3] |
SPACER
|
CAS
|
| 13. |
6605174
|
[1] |
TUBE,19.05 mm OD, 35 mm Length
|
CAS
SPACER
|
| 14. |
700115983
|
[1] |
ANGLE
|
HFI
|
| 15. |
231-4115
|
[1] |
NUT,5/16"-18, GB
|
CAS
NUT, LOCK, 5/16"-18, GB Superseded by part number: 280736
|
