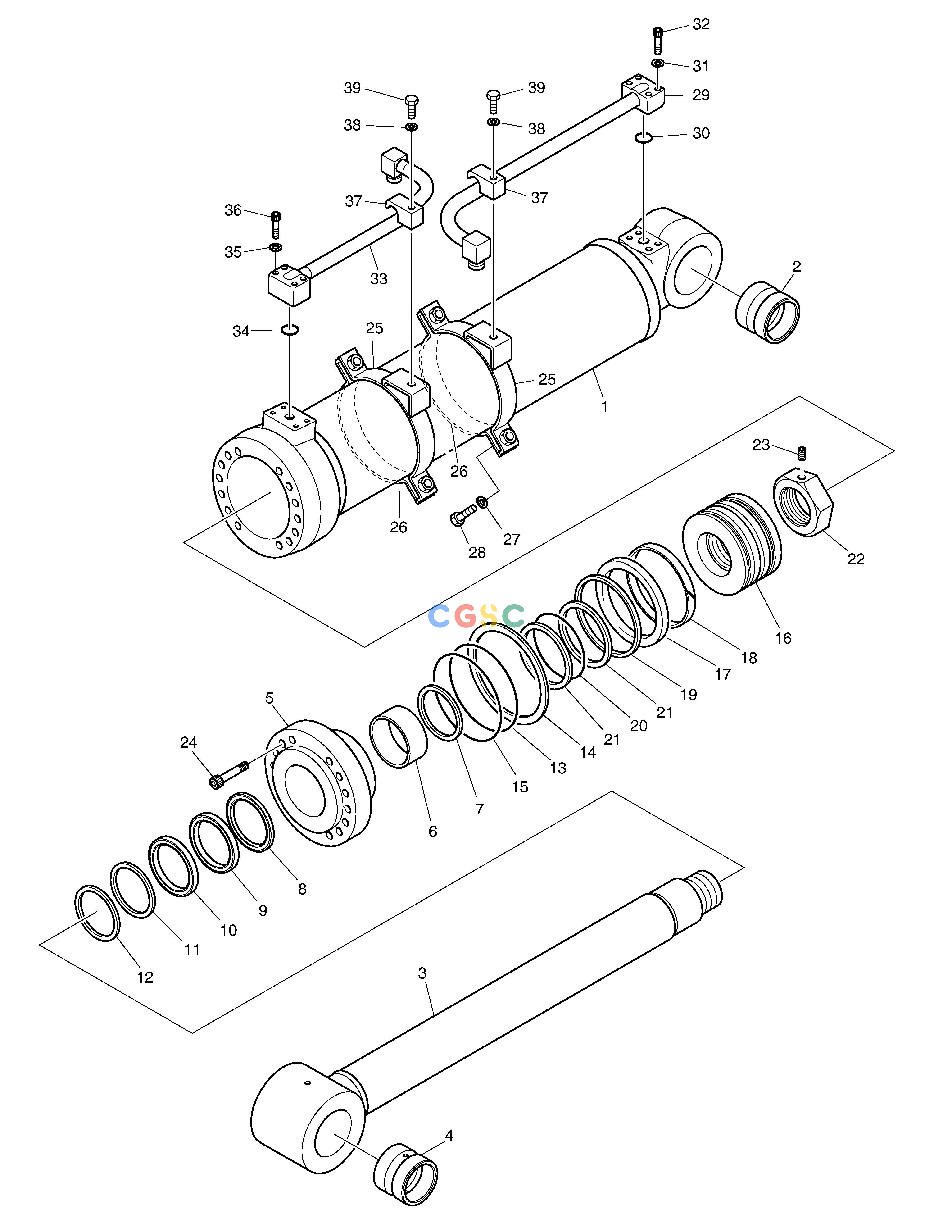

斗山零件查询ARTI. BOOM CYLINDER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01178
|
[1] |
|
|
| -. |
400306-00022B
|
[1] |
|
|
| 1. |
420406-00758
|
[1] |
|
|
| 10. |
K9001877
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011351
|
[1] |
O-RING
|
|
| 14. |
1.180-00662
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011401
|
[1] |
O-RING
|
|
| 16. |
130602-00799
|
[1] |
|
|
| 17. |
K9001148
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
NA00993
|
[1] |
RING;WEAR
|
|
| 19. |
NA00965
|
[1] |
|
|
| 2. |
131008-00055B
|
[1] |
|
|
| 20. |
S8010701
|
[1] |
O-RING
|
|
| 21. |
K9001156
|
[2] |
RING;BACK UP
|
|
| 22. |
120312-00352
|
[1] |
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
S2221873
|
[14] |
BOLT
|
|
| 25. |
120208-00171
|
[2] |
|
|
| 26. |
124-00108
|
[2] |
BAND;PIPE
|
|
| 27. |
S5100603
|
[4] |
WASHER
|
|
| 28. |
S0558363
|
[4] |
BOLT M10X1.5X40
|
|
| 29. |
420210-00911
|
[1] |
|
|
| 3. |
400337-00349
|
[1] |
|
|
| 30. |
S8000281
|
[1] |
O-RING
|
|
| 31. |
S5100603
|
[4] |
WASHER
|
|
| 32. |
S2212561
|
[4] |
BOLT;SOCKET M10X1.5X45
|
|
| 33. |
420207-01882
|
[1] |
|
|
| 34. |
S8000281
|
[1] |
O-RING
|
|
| 35. |
S5100603
|
[4] |
WASHER
|
|
| 36. |
S2212371
|
[4] |
BOLT
|
|
| 37. |
K9001413
|
[2] |
CLAMP;PIPE
|
|
| 38. |
S5102903
|
[2] |
WASHER
|
|
| 39. |
S0565451
|
[2] |
BOLT
|
|
| 4. |
131008-00055B
|
[1] |
|
|
| 5. |
110508-09459
|
[1] |
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00252
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001858
|
[1] |
U-PACKING
|
|
