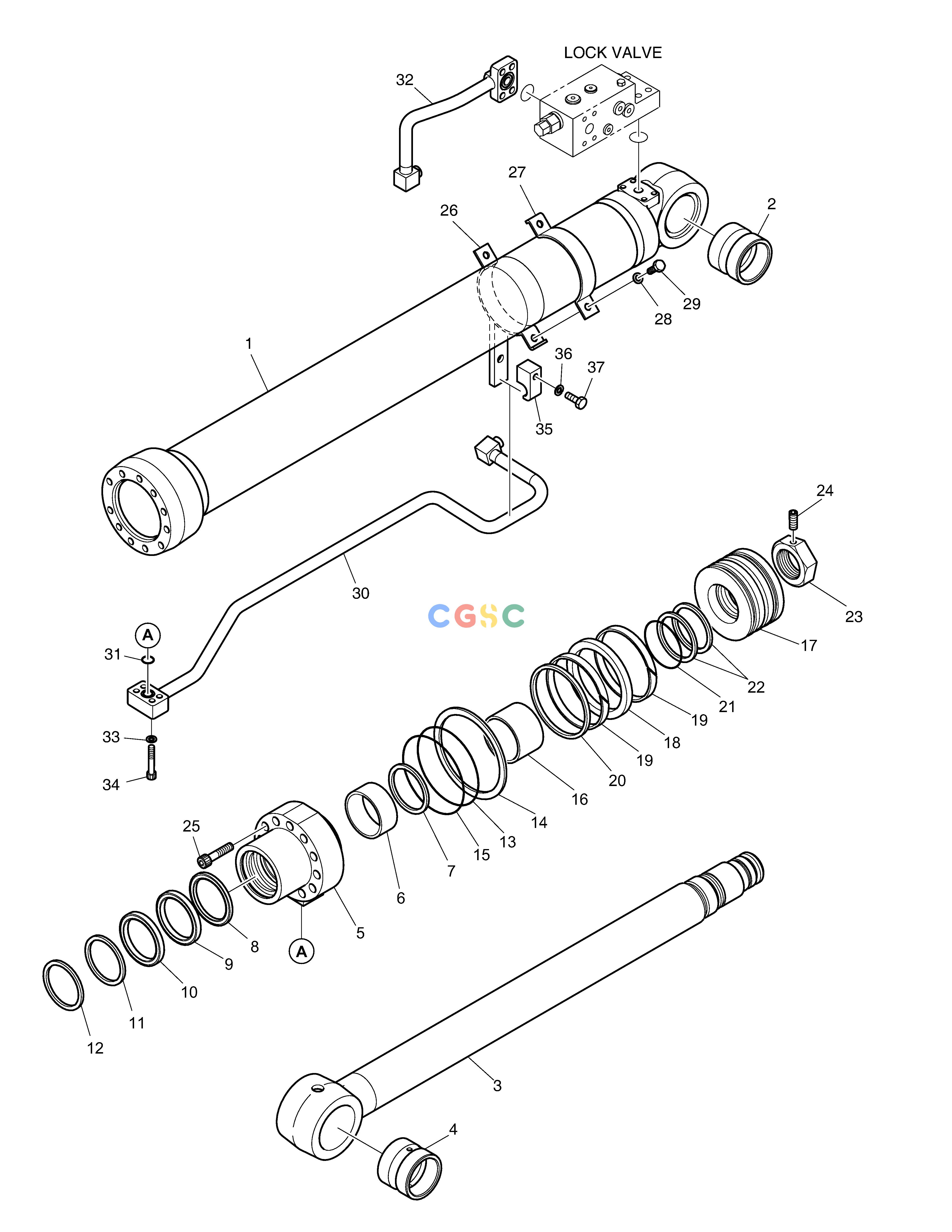

斗山零件查询BOOM CYLINDER - L.H. (LOCK VALVE) ARTI. DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
523 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9002306
|
[1] |
SEAL KIT
|
|
| -. |
400309-00175B
|
[1] |
|
|
| 1. |
420406-00887
|
[1] |
|
|
| 10. |
K9001396
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00060
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011051
|
[1] |
O-RING
|
|
| 14. |
1.180-00268
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011101
|
[1] |
O-RING
|
|
| 16. |
K9001387
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001388
|
[1] |
PISTON
|
|
| 18. |
K9001389
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00056
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00043B
|
[1] |
|
|
| 20. |
1.180-00633
|
[1] |
RING;DUST
|
|
| 21. |
180-00247
|
[1] |
O-RING
|
|
| 22. |
1.180-00269
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00252
|
[1] |
|
|
| 24. |
S3523836
|
[1] |
SCREW;SET
|
|
| 25. |
S2219071
|
[11] |
BOLT;SOCKET
|
|
| 26. |
K9005067
|
[1] |
PIPE BAND ASS'Y
|
|
| 27. |
124-00055
|
[1] |
BAND;PIPE
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
400337-00393
|
[1] |
|
|
| 30. |
420210-01105
|
[1] |
|
|
| 31. |
S8000201
|
[1] |
O-RING
|
|
| 32. |
420210-01109
|
[1] |
|
|
| 33. |
S5100503
|
[4] |
WASHER
|
|
| 34. |
S2209266
|
[4] |
BOLT
|
|
| 35. |
K9001435
|
[1] |
CLAMP;PIPE
|
|
| 36. |
S5100603
|
[1] |
WASHER
|
|
| 37. |
S0512553
|
[1] |
BOLT M10X1.5X45
|
|
| 4. |
131008-00061A
|
[1] |
|
|
| 5. |
110508-05222
|
[1] |
|
|
| 6. |
K9009858
|
[1] |
DD-BUSH
|
|
| 7. |
115-00052
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001385
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001386
|
[1] |
U-PACKING
|
|
