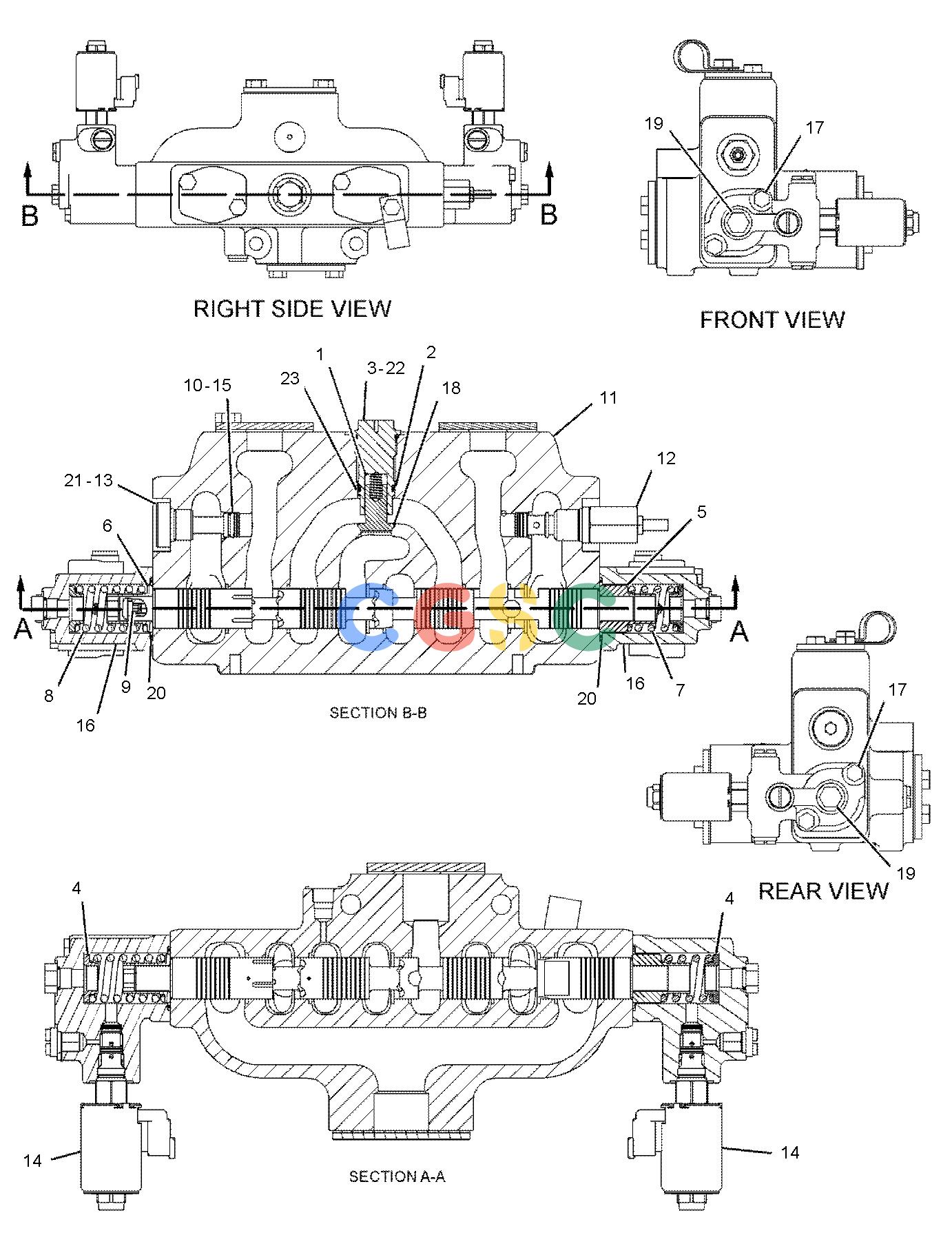

卡特零件查询（725） 260-0285: VALVE GP-HOIST CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2S-2596 | [1] | SPRING | |
| 2. | 7J-9933 | [1] | SEAL-O-RING | |
| 3. | 100-8012 | [1] | BODY | |
| 4. | 207-7434 | [2] | RETAINER | |
| 5. | 207-7435 | [1] | RETAINER | |
| 6. | 207-7436 | [1] | RETAINER | |
| 7. | 207-7437 | [1] | SPRING | |
| 8. | 207-7438 | [1] | SPRING | |
| 9. | 013-9041 | [1] | SETSCREW-SOCKET | |
| 10. | 7Y-5219 | [1] | SEAL-O-RING | |
| 11. | 241-4681 | [1] | BODY | |
| 12. | 241-6256Y | [1] | VALVE GP-RELIEF(HOIST CONTROL) | |
| 13. | 256-6032 | [1] | PLUG | |
| 14. | 257-0267Y | [2] | VALVE GP-SOLENOID(PILOT PROPORTIONING) | |
| 15. | 259-9255 | [1] | RING-BACKUP | |
| 16. | 260-0279 | [2] | HOUSING-SPRING | |
| 17. | 8T-3647M | [4] | BOLT(M8X1.25X80-MM) | |
| 18. | 100-8010 | [1] | VALVE-CHECK | |
| 19. | 148-8407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 20. | 1R-5318 | [2] | SEAL-O-RING | |
| 21. | 2M-9780 | [1] | SEAL-O-RING | |
| 22. | 4K-1388 | [1] | SEAL-O-RING | |
| 23. | 4T-5073 | [1] | RING-BACKUP | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
