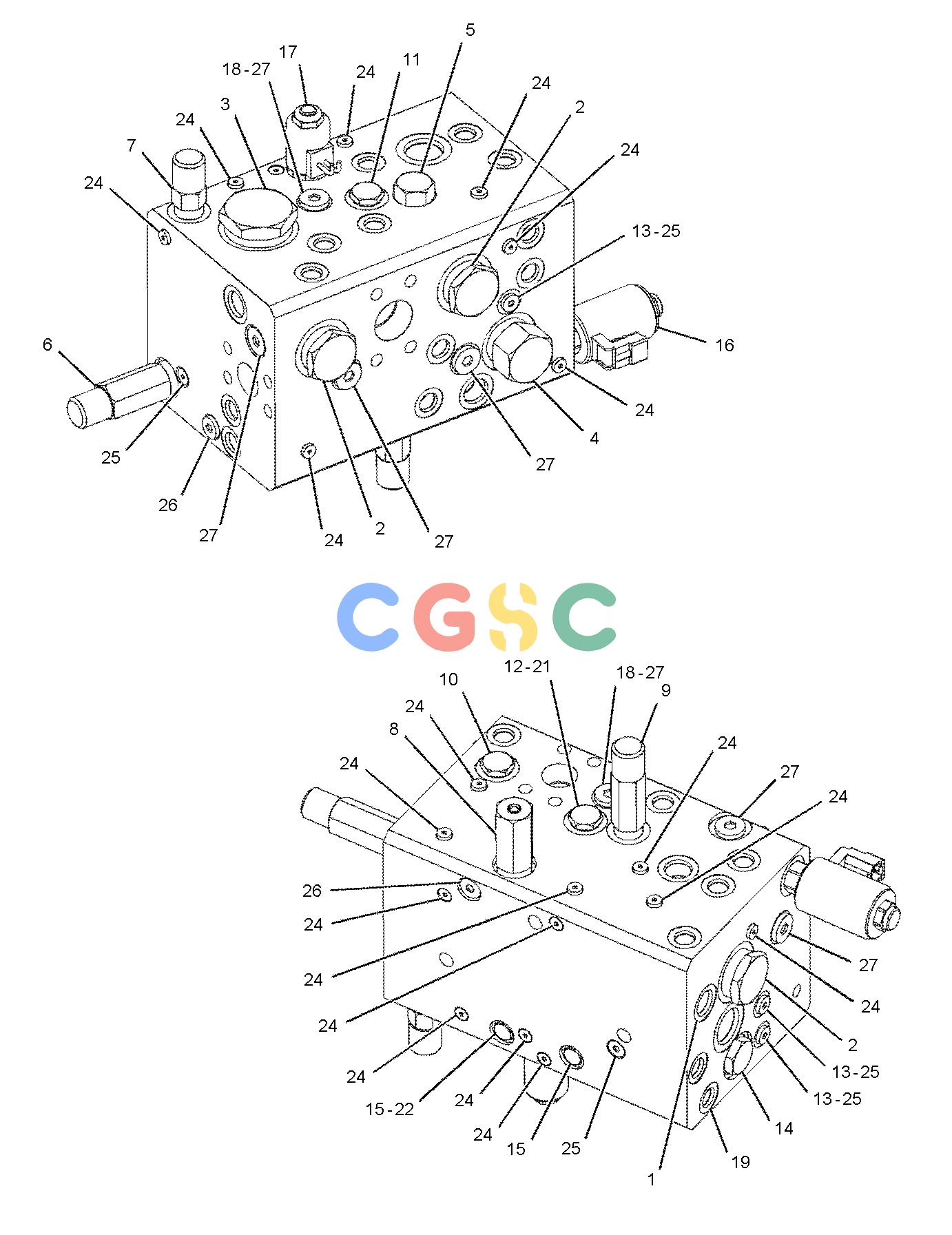

| 1. | 106-9421 | [1] | PLUG-ORIFICE | |
| 2. | 128-2780T | [3] | VALVE GP-CHECK(MAIN CONTROL) | |
| 3. | 239-0594H | [1] | VALVE GP-DIVERTER(IMPLEMENT, STEERING, BRAKE) | |
| 4. | 239-0603Y | [1] | VALVE GP-DIVERTER(BRAKE, FAN, HOIST) | |
| 5. | 239-0605Y | [1] | VALVE GP-DIVERTER(BRAKE, FAN, HOIST) | |
| 6. | 239-0621J | [1] | VALVE GP-DIVERTER(BRAKE, FAN, HOIST) | |
| 7. | 239-0612L | [1] | VALVE GP-RELIEF(DIRECT OPERATED) | |
| | 1H-1023L | [1] | SEAL-O-RING | |
| | 5F-9144L | [1] | SEAL-O-RING | |
| 8. | 239-0614N | [1] | VALVE GP-RELIEF(BRAKE, FAN, HOIST) | |
| 9. | 239-0615Y | [1] | VALVE GP-PRESSURE REDUCING(MAIN CONTROL) | |
| 10. | 257-8414Y | [1] | VALVE GP-SHUTTLE(BRAKE OIL FLOW) | |
| 11. | 158-9956Y | [1] | VALVE GP-CHECK(MAIN CONTROL VALVE) | |
| 12. | 252-6485C | [1] | VALVE GP-CHECK(BRAKE CHARGING) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6E-0381 | [1] | RING-BACKUP | |
| | 161-6154 | [1] | SEAL-O-RING | |
| 13. | 239-0618P | [3] | VALVE GP-SHUTTLE(BRAKE, FAN, HOIST) | |
| | | | (EACH INCLUDES) |
| | 3H-0442P | [1] | SEAL-O-RING | |
| 14. | 194-1723Y | [1] | VALVE GP-CHECK(MAIN CONTROL) | |
| 15. | 239-0617S | [2] | VALVE GP-CHECK(MAKEUP) | |
| | | | (EACH INCLUDES) |
| | 3H-0442S | [1] | SEAL-O-RING | |
| | 095-1513S | [1] | SEAL-O-RING | |
| 16. | 191-7785Y | [1] | VALVE GP-SOLENOID(24-VOLT)(FAN DRIVE) | |
| 17. | 201-0950Y | [1] | VALVE GP-SOLENOID(PARKING BRAKE) | |
| 18. | 6E-5066 | [3] | SCREEN(HYDRAULIC)(BRAKE, HYDRAULIC FAN) | |
| 19. | 244-1540C | [1] | PLUG-ORIFICE | |
| 21. | 215-9105C | [1] | PLUG-ORIFICE | |
| 22. | 244-1542C | [1] | PLUG-ORIFICE | |
| 24. | 173-3993C | [19] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 4J-7533 | [1] | SEAL-O-RING | |
| | 9S-8001 | [1] | PLUG | |
| 25. | 183-7263C | [5] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 26. | 162-0177 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 27. | 148-8395C | [7] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 2U-7354H | [1] | KIT-SEAL(DIVERTER VALVE) | |
| | 200-6282J | [1] | KIT-SEAL(DIVERTER VALVE) | |
| | 225-9611L | [1] | KIT-SEAL(RELIEF VALVE) | |
| | 133-5545N | [1] | KIT-SEAL | |
| | 239-5195P | [1] | KIT-SEAL(SHUTTLE VALVE) | |
| | 239-5157S | [1] | KIT-SEAL(CHECK VALVE) | |
| | 128-2779T | [1] | KIT-SEAL(CHECK VALVE) | |
| | | | (EACH SEAL KIT INCLUDES SEALS & RINGS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Y | | SEPARATE ILLUSTRATION |
