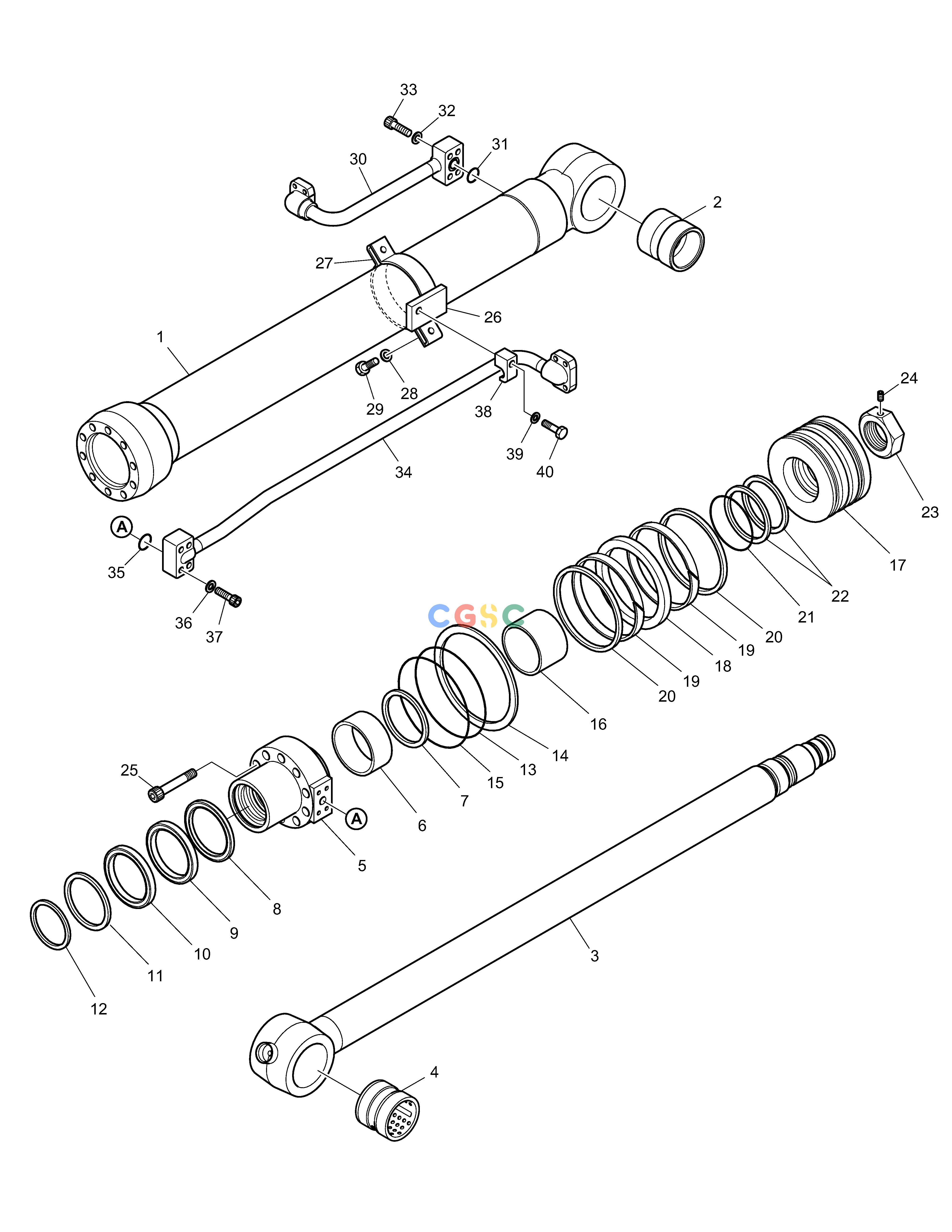

斗山零件查询BUCKET CYLINDER - ARM 3.0m DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9005434
|
[1] |
SEAL KIT
|
|
| -. |
400310-00107B
|
[1] |
|
|
| 1. |
420406-00886
|
[1] |
|
|
| 10. |
K9005433
|
[1] |
RING;BACK UP
|
|
| 11. |
1.180-00479
|
[1] |
WIPER;DUST
|
|
| 12. |
K9001401
|
[1] |
RING;RETAINING
|
|
| 13. |
S8010951
|
[1] |
O-RING
|
|
| 14. |
1.180-00273
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011001
|
[1] |
. O-RING
|
|
| 16. |
K9005412
|
[1] |
RING;CUSHION
|
|
| 17. |
K9005424
|
[1] |
PISTON
|
|
| 18. |
K9005430
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
K9006822
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00045B
|
[1] |
|
|
| 20. |
K9001373
|
[2] |
RING,DUST
|
|
| 21. |
1.180-00116
|
[1] |
O-RING
|
|
| 22. |
1.180-00264
|
[2] |
RING;BACK UP
|
|
| 23. |
1.121-00063A
|
[1] |
NUT,PISTON
|
|
| 24. |
S3523738
|
[1] |
SCREW;SET
|
|
| 25. |
S2218961
|
[10] |
BOLT
|
|
| 26. |
110902-00148
|
[1] |
|
|
| 27. |
1.124-00005
|
[1] |
BAND;PIPE
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
400337-00392
|
[1] |
|
|
| 30. |
420210-01100
|
[1] |
|
|
| 31. |
S8000201
|
[1] |
O-RING
|
|
| 32. |
S5100503
|
[4] |
WASHER
|
|
| 33. |
S2209266
|
[4] |
BOLT
|
|
| 34. |
420210-01101
|
[1] |
|
|
| 35. |
S8000201
|
[1] |
O-RING
|
|
| 36. |
S5100503
|
[4] |
WASHER
|
|
| 37. |
S2209266
|
[4] |
BOLT
|
|
| 38. |
K9001435
|
[1] |
CLAMP;PIPE
|
|
| 39. |
S5100603
|
[1] |
WASHER
|
|
| 4. |
131004-00022A
|
[1] |
|
|
| 40. |
S0512553
|
[1] |
BOLT M10X1.5X45
|
|
| 5. |
110508-09182
|
[1] |
|
|
| 6. |
1.110-00067
|
[1] |
BUSH-DU
|
|
| 7. |
115-00104
|
[1] |
RING,RETAINING
|
|
| 8. |
K9005432
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9005431
|
[1] |
U-PACKING
|
|
