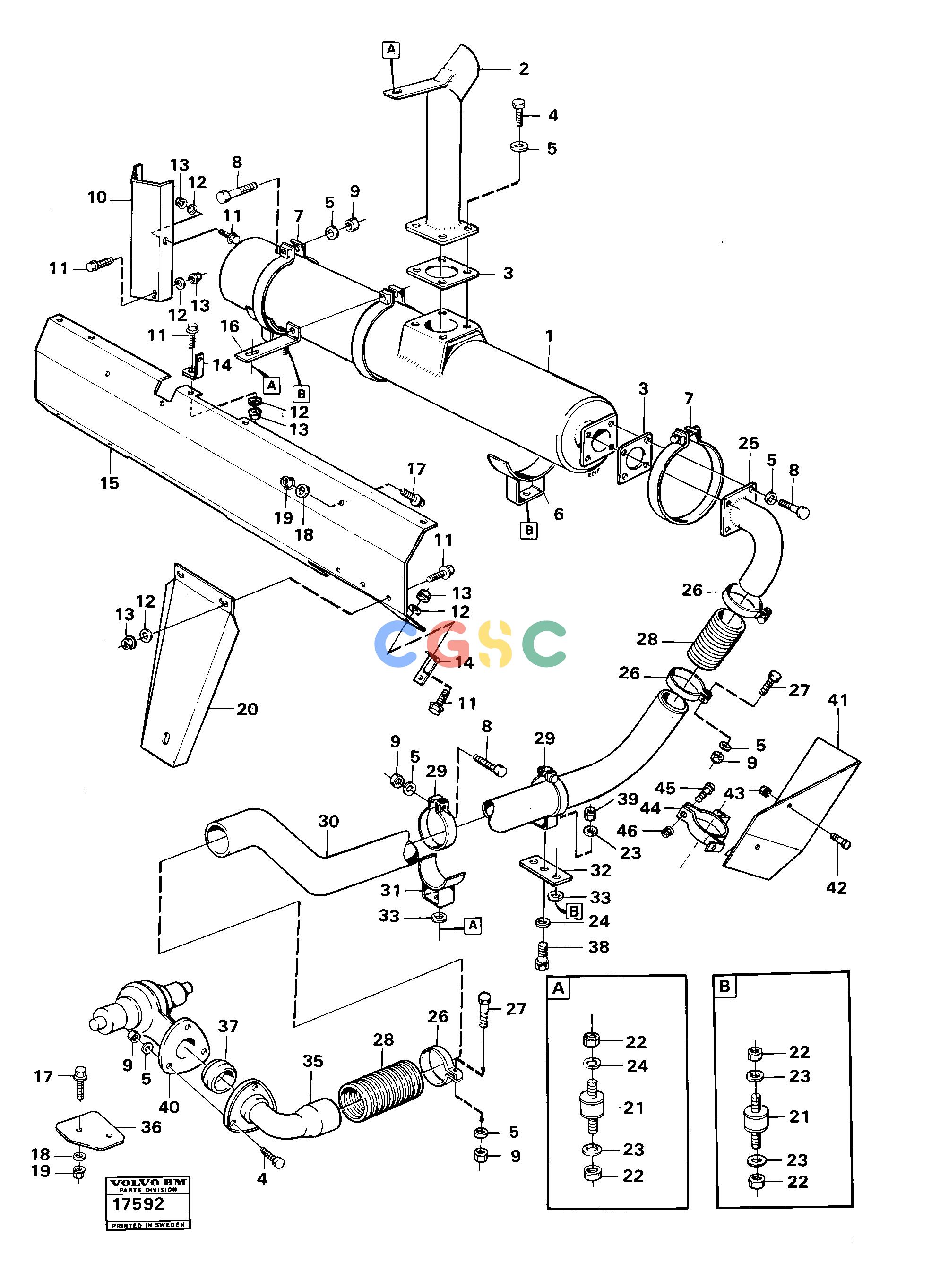

沃尔沃零件查询A25 VOLVO BM Exhaust systemVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
676 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE976945
|
[28] |
Washer
|
|
| 6. |
VOE4940425
|
[2] |
Anchorage
|
|
| 7. |
VOE11058146
|
[3] |
Clamp
|
|
| 8. |
VOE13965185
|
[9] |
Screw
|
|
| 9. |
VOE13971074
|
[16] |
Hexagon nut
|
|
| 1. |
VOE4771479
|
[1] |
Silencer
|
|
| 10. |
VOE4823560
|
[1] |
Protecting plate
|
|
| 11. |
VOE13946934
|
[13] |
Screw
|
|
| 12. |
VOE60110304
|
[11] |
Washer
|
|
| 13. |
VOE13949278
|
[12] |
Flange lock nut
|
|
| 14. |
VOE4823361
|
[4] |
Bracket
|
|
| 15. |
VOE4940931
|
[1] |
Protecting plate
|
|
| 16. |
VOE4940041
|
[1] |
Brace
|
|
| 17. |
VOE13946173
|
[5] |
Screw
|
|
| 18. |
VOE13960141
|
[5] |
Washer
|
|
| 19. |
VOE13945408
|
[5] |
Nut
|
|
| 2. |
VOE4737526
|
[1] |
End pipe
|
|
| 20. |
VOE4864701
|
[1] |
Protecting plate
|
|
| 21. |
VOE11110276
|
[7] |
Rubber cushion
|
|
| 22. |
VOE971096
|
[14] |
Flange nut
|
|
| 23. |
VOE60110353
|
[12] |
Washer
|
|
| 24. |
VOE13960145
|
[2] |
Washer
|
|
| 25. |
VOE4864821
|
[1] |
Exhaust pipe
|
|
| 26. |
|
[4] |
Clamp
|
|
| 27. |
VOE60113105
|
[4] |
Flange screw
|
|
| 28. |
VOE11110293
|
[1] |
Exhaust pipe
|
|
| 29. |
VOE4751184
|
[2] |
Clamp
|
|
| 3. |
VOE4770880
|
[2] |
Gasket
|
|
| 30. |
VOE4864425
|
[1] |
Exhaust pipe
|
|
| 31. |
VOE4940037
|
[2] |
Anchorage
|
|
| 32. |
VOE4940040
|
[1] |
Plate
|
|
| 33. |
VOE11053667
|
[6] |
Gasket
|
|
| 34. |
VOE11110293
|
[1] |
Exhaust pipe
|
|
| 35. |
VOE11116703
|
[1] |
Pipe elbow
|
|
| 36. |
VOE4965337
|
[1] |
Protecting plate
|
|
| 37. |
VOE364727
|
[1] |
Sealing ring
|
|
| 38. |
VOE13965191
|
[1] |
Screw
|
|
| 39. |
VOE971099
|
[1] |
Flange lock nut
|
|
| 4. |
VOE13971019
|
[7] |
Screw
|
|
| 40. |
|
[1] |
Throttle housing
|
|
| 41. |
VOE4940834
|
[0001] |
Protecting plate
|
STD USA
|
| 42. |
VOE13946934
|
[0004] |
Screw
|
STD USA
|
| 43. |
VOE13949278
|
[0004] |
Flange lock nut
|
STD USA
|
| 44. |
VOE4864705
|
[0002] |
Clamp
|
STD USA
|
| 45. |
VOE13970950
|
[0002] |
Hexagon screw
|
STD USA
|
| 46. |
VOE13971074
|
[0002] |
Hexagon nut
|
STD USA
|
