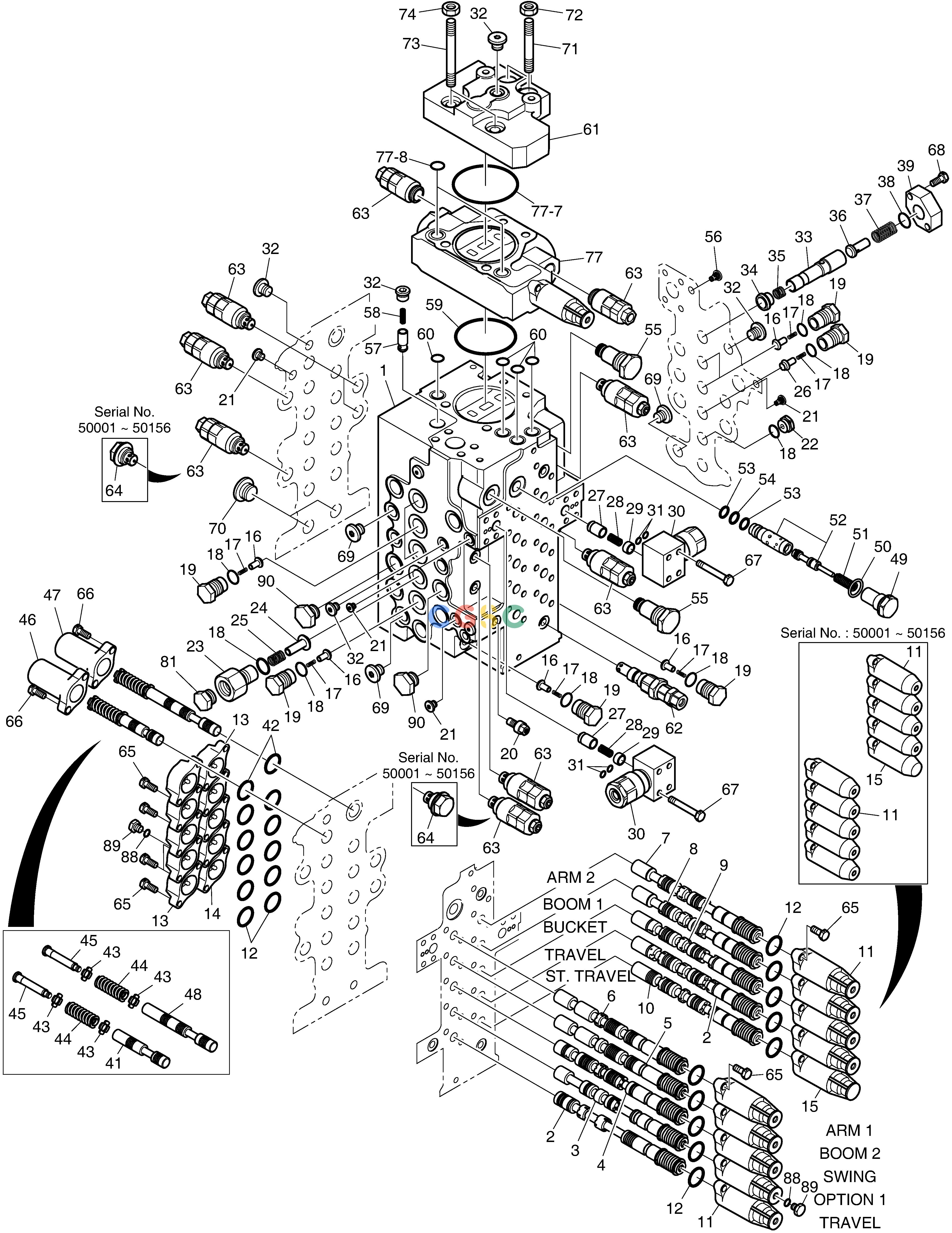

斗山零件查询CONTROL VALVE - ARTI OR DOZER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410105-00335C
|
[1] |
|
|
| -. |
410105-00335B
|
[1] |
|
410105-00335C
|
| 1. |
NA00544
|
[1] |
HOUSING;VALVE
|
|
| 10. |
K9004480
|
[1] |
SPOOL ASS'Y - STRAIGHT TRAVEL
|
|
| 11. |
110910-00914
|
[9] |
CAP
|
|
| 11. |
K9004473
|
[9] |
CAP
|
110910-00914
|
| 12. |
S8010351
|
[20] |
O-RING
|
|
| 13. |
110910-00915
|
[9] |
CAP
|
|
| 13. |
K9004474
|
[9] |
CAP
|
110910-00915
|
| 14. |
110910-00916
|
[1] |
CAP
|
|
| 14. |
K9004471
|
[1] |
CAP
|
110910-00916
|
| 15. |
110910-00917
|
[1] |
CAP
|
|
| 15. |
K9004472
|
[1] |
CAP
|
110910-00917
|
| 16. |
K9004499
|
[8] |
POPPET
|
|
| 17. |
129-00129
|
[9] |
SPRING
|
|
| 18. |
180-00398
|
[11] |
O-RING
|
|
| 19. |
430-00042
|
[9] |
PLUG
|
|
| 2. |
410207-00311
|
[2] |
|
|
| 20. |
K9004475
|
[1] |
PLUG ASS`Y
|
|
| 21. |
K9004467
|
[4] |
PLUG
|
|
| 22. |
K9004465
|
[1] |
PLUG
|
|
| 23. |
K9004497
|
[1] |
PLUG
|
|
| 24. |
K9004502
|
[1] |
POPPET
|
|
| 25. |
K9004508
|
[1] |
SPRING
|
|
| 26. |
K9004500
|
[1] |
POPPET
|
|
| 27. |
K9004504
|
[2] |
POPPET
|
|
| 28. |
K9004506
|
[2] |
SPRING
|
|
| 29. |
K9004491
|
[2] |
SPACER ASS`Y
|
|
| 3. |
K9004481
|
[1] |
SPOOL ASS'Y - OPTION
|
|
| 30. |
K9004490
|
[2] |
VALVE ASS`Y;ANTI DRIFT
|
|
| 31. |
S8000061
|
[4] |
O-RING
|
|
| 32. |
181-00561
|
[5] |
PLUG ASS`Y
|
|
| 33. |
K9005477
|
[1] |
SLEEVE
|
|
| 34. |
K9004503
|
[1] |
POPPET
|
|
| 35. |
K9004468
|
[1] |
SPRING
|
|
| 36. |
K9004501
|
[1] |
POPPET
|
|
| 37. |
K9004505
|
[1] |
SPRING
|
|
| 38. |
S8000261
|
[1] |
O-RING
|
|
| 39. |
K9004509
|
[1] |
FLANGE
|
|
| 4. |
410207-00312
|
[1] |
|
|
| 41. |
410207-00286
|
[1] |
|
|
| 42. |
S8000261
|
[2] |
O-RING
|
|
| 43. |
429-00024
|
[4] |
SEAT;SPRING
|
|
| 44. |
129-00124
|
[2] |
SPRING
|
|
| 45. |
430-00040
|
[2] |
SPOOL END
|
|
| 46. |
K9004469
|
[1] |
CAP
|
|
| 47. |
K9004470
|
[1] |
CAP
|
|
| 48. |
K9004478
|
[1] |
SPOOL
|
|
| 49. |
K9004496
|
[1] |
PLUG
|
|
| 5. |
410207-00228
|
[1] |
|
|
| 50. |
S8000241
|
[1] |
O-RING
|
|
| 51. |
K9004507
|
[1] |
SPRING
|
|
| 52. |
410207-00234
|
[1] |
|
|
| 53. |
S8060161
|
[2] |
RING;BACK-UP
|
|
| 54. |
S8000161
|
[1] |
O-RING
|
|
| 55. |
K9004476
|
[2] |
VALVE;RELIEF
|
|
| 56. |
415-00037
|
[1] |
PLUG;ORIFICE
|
|
| 57. |
426-00168
|
[1] |
POPET
|
|
| 58. |
129-00126
|
[1] |
SPRING
|
|
| 59. |
S8011001
|
[1] |
. O-RING
|
|
| 6. |
410207-00299
|
[1] |
|
|
| 60. |
180-00403
|
[4] |
. O-RING
|
|
| 61. |
K9004489
|
[1] |
OUTLET ASS`Y
|
|
| 62. |
410127-00127A
|
[1] |
|
|
| 63. |
K9004492
|
[8] |
VALVE;RELIEF
|
|
| 63. |
K9004492
|
[10] |
VALVE;RELIEF
|
|
| 64. |
2.181-00319
|
[2] |
PLUG ASS'Y
|
|
| 65. |
S2209066
|
[40] |
BOLT
|
|
| 66. |
S2204866
|
[4] |
BOLT
|
|
| 67. |
S2209666
|
[8] |
BOLT
|
|
| 68. |
S2212466
|
[2] |
BOLT
|
|
| 69. |
181-00563
|
[2] |
PLUG ASS`Y
|
|
| 7. |
410207-00230
|
[1] |
|
|
| 70. |
181-00564
|
[2] |
PLUG ASS`Y
|
|
| 71. |
K9004520
|
[2] |
ROD;TIE
|
|
| 72. |
K9001075
|
[2] |
NUT
|
|
| 73. |
K9004523
|
[2] |
ROD;TIE
|
|
| 74. |
K9001077
|
[2] |
NUT
|
|
| 77. |
100201-00122
|
[1] |
|
|
| 77-7. |
S8011001
|
[1] |
. O-RING
|
|
| 77-8. |
180-00403
|
[4] |
. O-RING
|
|
| 8. |
410207-00231
|
[1] |
|
|
| 81. |
K9004466
|
[1] |
PLUG ASS`Y
|
|
| 88. |
S8000141
|
[2] |
O-RING
|
|
| 89. |
181-00646
|
[2] |
PLUG
|
|
| 9. |
410207-00232
|
[1] |
|
|
| 90. |
181-00647
|
[2] |
PLUG ASSY
|
|
