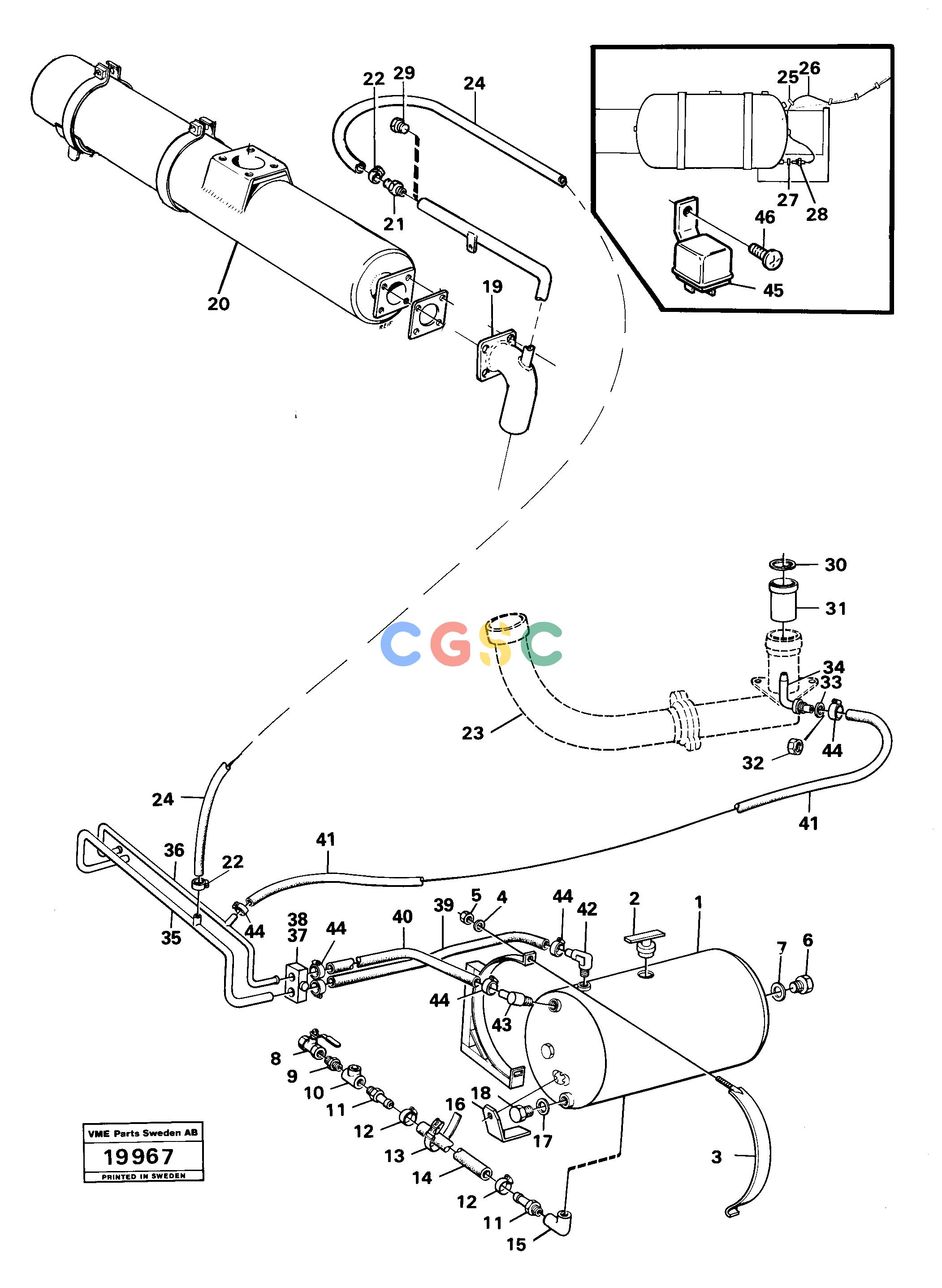

沃尔沃零件查询A25 VOLVO BM Exhaust gas purification 90214, 90391VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
520 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE950354
|
[0004] |
Lock nut
|
|
| 6. |
VOE914396
|
[0004] |
Plug
|
|
| 7. |
VOE13947630
|
[0004] |
Gasket
|
|
| 8. |
VOE4822674
|
[0001] |
Valve
|
|
| 9. |
VOE4861626
|
[0001] |
Nipple
|
|
| 1. |
VOE4861551
|
[0002] |
Tank
|
220 L
|
| 10. |
VOE4861625
|
[0001] |
Nipple
|
|
| 11. |
VOE945574
|
[0002] |
Nipple
|
|
| 12. |
VOE943477
|
[0002] |
Hose clamp
|
|
| 13. |
VOE11104606
|
[0002] |
Retaining strap
|
|
| 14. |
VOE952975
|
[REQ] |
Hose
|
L = 1500
|
| 15. |
VOE4861624
|
[0001] |
Nipple
|
|
| 16. |
|
[0001] |
Shield
|
|
| 17. |
VOE13947282
|
[0001] |
Gasket
|
|
| 18. |
VOE836268
|
[0001] |
Plug
|
|
| 19. |
VOE4941550
|
[0001] |
Exhaust pipe
|
|
| 2. |
VOE4822677
|
[0002] |
Filler cap
|
|
| 20. |
|
[0001] |
Muffler
|
|
| 21. |
VOE943268
|
[0001] |
Nipple
|
|
| 22. |
VOE943475
|
[0006] |
Hose clamp
|
|
| 23. |
|
[0001] |
Pipe
|
SEE GROUP 95
|
| 24. |
VOE4861516
|
[REQ] |
Hose
|
L = 2350
|
| 25. |
VOE4821292
|
[0015] |
Cable tie
|
|
| 26. |
|
[0001] |
Wire harness
|
|
| 27. |
VOE13947282
|
[0001] |
Gasket
|
|
| 28. |
VOE1581232
|
[0001] |
Sensor
|
|
| 29. |
VOE942839
|
[0001] |
Plug
|
|
| 3. |
VOE192043
|
[0004] |
Mounting strap
|
|
| 30. |
VOE914544
|
[0001] |
Retaining ring
|
|
| 31. |
VOE11053332
|
[0001] |
Sleeve
|
|
| 32. |
VOE906634
|
[0001] |
Round nut
|
|
| 33. |
VOE13949016
|
[0001] |
Gasket
|
|
| 34. |
VOE11053331
|
[0001] |
Pipe
|
|
| 35. |
VOE11056538
|
[0001] |
Pipe
|
|
| 36. |
VOE11056540
|
[0001] |
Pipe
|
|
| 37. |
VOE11053811
|
[0002] |
Retainer
|
|
| 38. |
VOE13955894
|
[0002] |
Washer
|
|
| 39. |
VOE4861516
|
[REQ] |
Hose
|
L = 2 X 900
|
| 4. |
VOE13940097
|
[0004] |
Washer
|
|
| 40. |
VOE4861331
|
[REQ] |
Hose
|
L = 2 X 750
|
| 41. |
VOE4861331
|
[REQ] |
Hose
|
L = 1000
|
| 42. |
VOE961611
|
[0002] |
Elbow nipple
|
|
| 43. |
VOE13961604
|
[0002] |
Nipple
|
|
| 44. |
VOE13943472
|
[0006] |
Hose clamp
|
|
| 45. |
VOE1501618
|
[0001] |
Relay
|
|
| 46. |
VOE969278
|
[0001] |
Six point socket screw
|
|
