沃尔沃零件查询A25 VOLVO BM IntercoolerVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
938 次

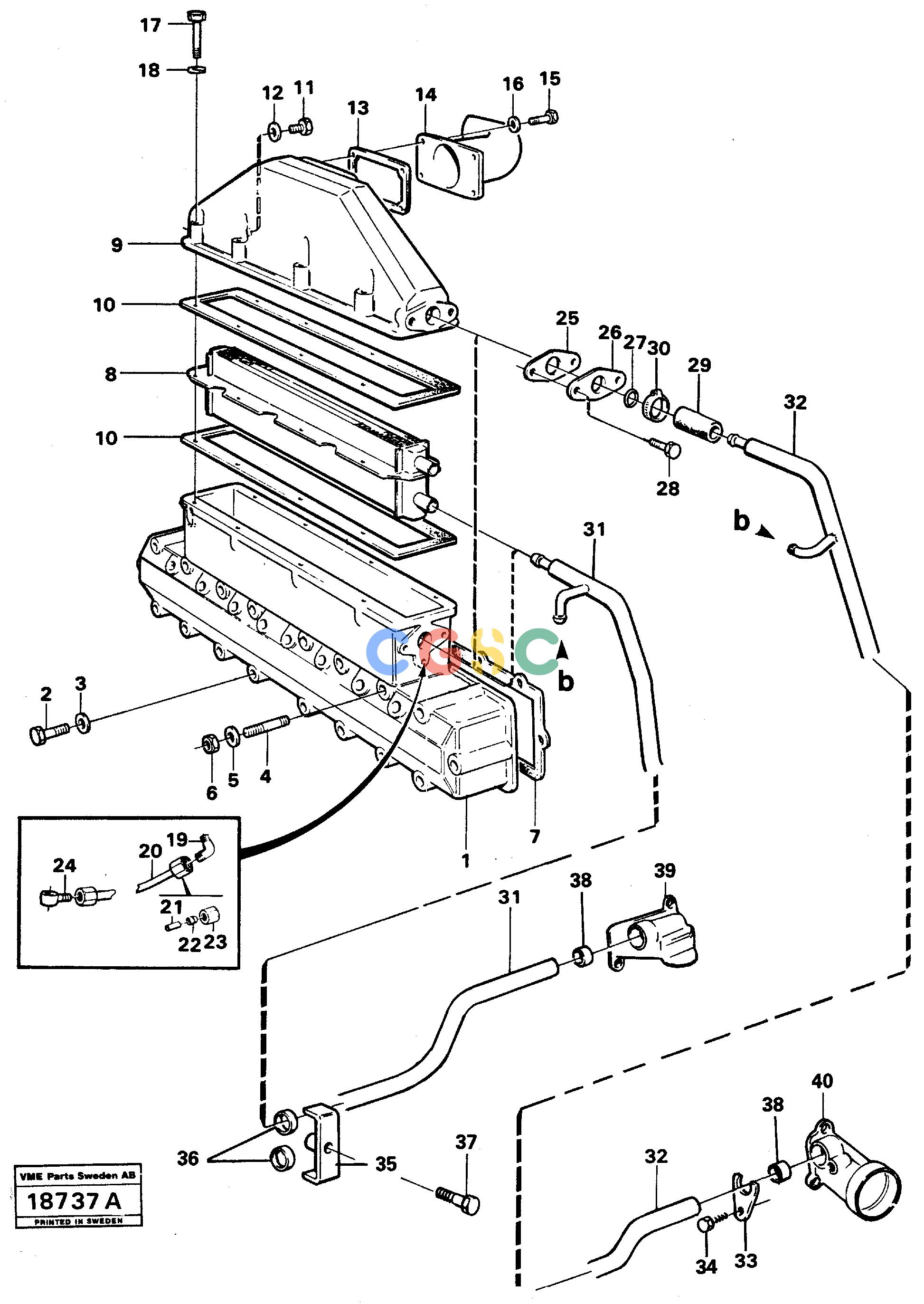

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13955894
|
[0002] |
Washer
|
|
| 6. |
VOE13945408
|
[0002] |
Nut
|
|
| 7. |
VOE3829433
|
[0001] |
Gasket
|
|
| 8. |
VOE863489
|
[0001] |
Charge air cooler
|
|
| 9. |
VOE849429
|
[0001] |
Cover
|
|
| 1. |
VOE848553
|
[0001] |
Inlet manifold
|
|
| 10. |
VOE845515
|
[0002] |
Gasket
|
|
| 11. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 12. |
VOE957171
|
[0001] |
Gasket
|
|
| 13. |
VOE862620
|
[0001] |
Gasket
|
|
| 14. |
VOE11030949
|
[1] |
Connecting pipe
|
|
| 15. |
VOE13947542
|
[4] |
Screw
|
|
| 16. |
VOE955893
|
[4] |
Plain washer
|
|
| 17. |
VOE13965181
|
[8] |
Screw
|
|
| 18. |
VOE13955894
|
[8] |
Washer
|
|
| 19. |
VOE13954378
|
[1] |
Nipple
|
|
| 2. |
VOE13965183
|
[0016] |
Flange screw
|
|
| 20. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=1050
|
| 21. |
VOE944717
|
[2] |
Sleeve
|
|
| 22. |
VOE954364
|
[2] |
Ferrule
|
|
| 23. |
VOE954356
|
[2] |
Fitting nut
|
|
| 24. |
VOE13945417
|
[1] |
Banjo nipple
|
|
| 25. |
VOE862619
|
[2] |
Gasket
|
|
| 26. |
VOE846896
|
[2] |
Flange
|
|
| 27. |
VOE925057
|
[2] |
O-ring
|
|
| 28. |
VOE13946934
|
[0004] |
Screw
|
|
| 29. |
VOE943368
|
[REQ] |
Hose
|
L=2X75
|
| 3. |
VOE13955894
|
[0016] |
Washer
|
|
| 30. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 31. |
VOE849084
|
[0001] |
Tube
|
SEE GROUP 56
|
| 32. |
VOE849086
|
[0001] |
Tube
|
SEE GROUP 56
|
| 33. |
VOE421654
|
[0001] |
Clamp
|
|
| 34. |
VOE13965175
|
[0001] |
Screw
|
|
| 35. |
VOE849059
|
[0001] |
Clamp
|
|
| 36. |
VOE471626
|
[0004] |
Sealing ring
|
|
| 37. |
VOE60113113
|
[0001] |
Flange screw
|
|
| 38. |
VOE471626
|
[0002] |
Sealing ring
|
|
| 39. |
|
[0001] |
Contact
|
SEE GROUP 26
|
| 4. |
VOE953062
|
[0002] |
Stud
|
|
| 40. |
|
[0001] |
Spacer
|
SEE GROUP 26
|
