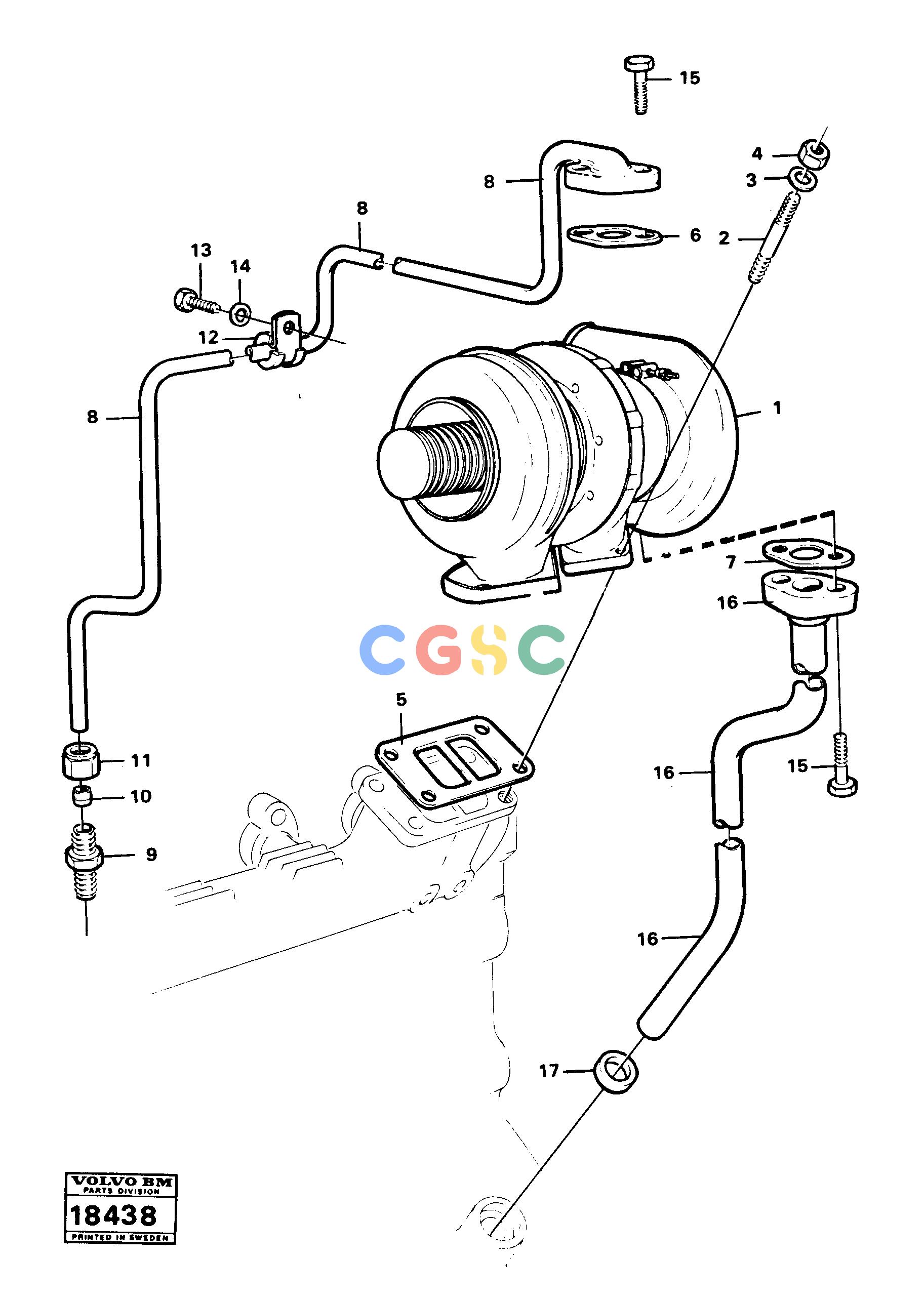

沃尔沃零件查询A25 VOLVO BM Turbocharger with fitting partsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE420618
|
[0001] |
Gasket
|
|
| 6. |
VOE420641
|
[0001] |
Gasket
|
|
| 7. |
VOE420642
|
[0001] |
Gasket
|
|
| 8. |
VOE471624
|
[0001] |
Oil feed pipe
|
|
| 9. |
VOE13963948
|
[0001] |
Nipple
|
|
| 1. |
|
[0001] |
Turbocharger
|
|
| 10. |
VOE956970
|
[0001] |
Ferrule
|
|
| 11. |
VOE956984
|
[0001] |
Fitting nut
|
|
| 12. |
VOE13946834
|
[0001] |
Clamp
|
|
| 13. |
VOE947107
|
[0001] |
Flange screw
|
|
| 14. |
VOE13955894
|
[0001] |
Washer
|
|
| 15. |
VOE13945444
|
[0003] |
Screw
|
|
| |
VOE60113082
|
[0001] |
Flange screw
|
|
| 16. |
VOE471625
|
[0001] |
Return pipe
|
|
| 17. |
VOE471626
|
[0001] |
Sealing ring
|
|
| 2. |
VOE13977298
|
[0004] |
Stud
|
|
| 3. |
VOE470467
|
[0004] |
Sleeve
|
|
| 4. |
VOE1543499
|
[0004] |
Flange nut
|
|
