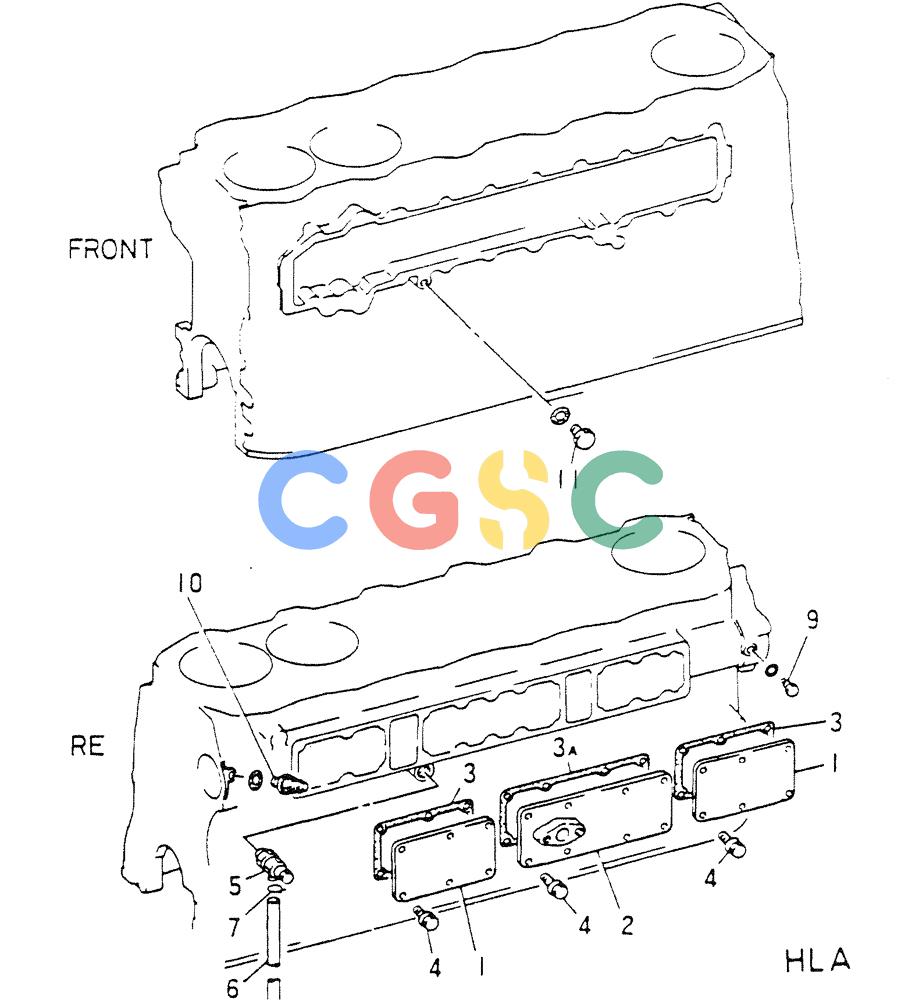

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-033) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME041114 | [2] | COVER,SIDE A | |
| 2. | VAME047060 | [1] | COVER,SIDE B | |
| 3. | VAME041116 | [2] | RIGID TUBE | KOBGASKET,COVER A Superseded by part number: VAMZ100166 |
| 3A. | VAME041117 | [1] | RIGID TUBE | KOBGASKET,COVER B Superseded by part number: VAMZ100166 |
| 4. | VAMF140221 | [18] | BOLT | KOBBOLT,FLANGE 8X12 |
| 5. | VAME031455 | [1] | COCK | KOBCOCK, DRAIN. |
| 6. | VA3110704800 | [1] | PIPE DRAIN PIPE,DRAIN L=300 | PIPE DRAIN PIPE,DRAIN L=300 |
| 7. | VAMS666040 | [1] | CLAMP | KOBCLAMP 16 |
| 9. | VAME031087 | [1] | SET OF SCREWS | KOBSCREW,SET |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 10. | VAMH038306 | [1] | CONNECTOR CONNECTOR,FOR TURBOCHARGER | CONNECTOR CONNECTOR,FOR TURBOCHARGER |
| 11. | VAME031088 | [1] | PLUG | KOBPLUG |
