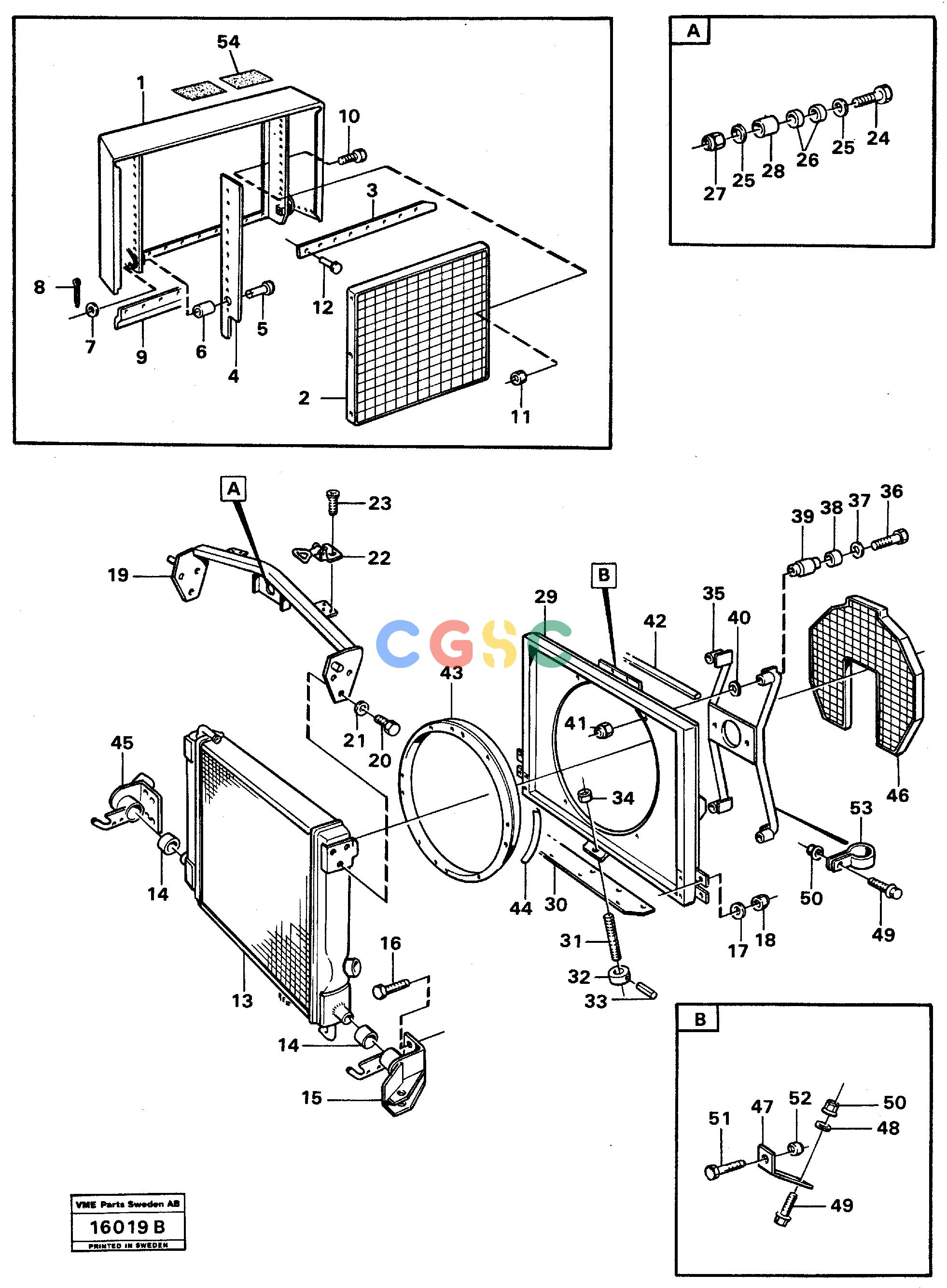

沃尔沃零件查询A25 VOLVO BM Radiator, fittingVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13964863
|
[0002] |
Clevis pin
|
|
| 48. |
VOE6619869
|
[3] |
Washer
|
|
| 49. |
VOE13946934
|
[2] |
Screw
|
|
| 50. |
VOE13949278
|
[2] |
Flange lock nut
|
|
| 51. |
VOE940142
|
[1] |
Hexagon screw
|
|
| 52. |
VOE13945408
|
[0001] |
Nut
|
|
| 53. |
VOE952636
|
[0002] |
Clamp
|
|
| 54. |
|
[0002] |
Slip protection
|
STD USA
|
| 6. |
VOE952967
|
[REQ] |
Hose
|
L=30
|
| 7. |
VOE976945
|
[0002] |
Washer
|
|
| 8. |
VOE907847
|
[0002] |
Split pin
|
|
| 9. |
VOE4821131
|
[REQ] |
Moulding
|
L = 1330 SER NO - 4032
|
| 1. |
VOE11057211
|
[0001] |
Radiator casing
|
|
| |
VOE4880191
|
[REQ] |
Rubber moulding
|
L = 1330 SER NO 4033 -
|
| 10. |
VOE955269
|
[0006] |
Hexagon screw
|
|
| |
VOE955892
|
[0006] |
Plain washer
|
|
| 11. |
VOE13949278
|
[0006] |
Flange lock nut
|
|
| 12. |
VOE1611695
|
[REQ] |
Blind rivet
|
|
| 13. |
VOE4771262
|
[1] |
Radiator
|
|
| 14. |
VOE363345
|
[2] |
Rubber cushion
|
|
| 15. |
VOE4821009
|
[1] |
Bracket
|
|
| 16. |
VOE955304
|
[8] |
Hexagon screw
|
|
| 17. |
VOE13955894
|
[8] |
Washer
|
|
| 2. |
VOE4941058
|
[0001] |
Radiator grille
|
|
| 18. |
VOE13945408
|
[8] |
Nut
|
|
| 19. |
VOE4823583
|
[1] |
Bracket
|
|
| 20. |
VOE940199
|
[6] |
Hexagon screw
|
|
| 21. |
VOE13941907
|
[6] |
Washer
|
|
| 22. |
VOE4737769
|
[2] |
Eccentric lock
|
|
| 23. |
VOE956184
|
[6] |
Cross recessed sunk screw
|
|
| 24. |
VOE955785
|
[1] |
Hexagon nut
|
|
| 25. |
VOE191940
|
[2] |
Washer
|
|
| 26. |
VOE252203
|
[2] |
Washer
|
|
| 27. |
VOE963110
|
[1] |
Lock nut
|
|
| 3. |
VOE4821308
|
[0001] |
Rubber moulding
|
|
| 28. |
VOE4821018
|
[1] |
Sleeve
|
|
| 29. |
VOE11053070
|
[1] |
Rdtr Mounting
|
|
| 30. |
VOE4821005
|
[1] |
Seal
|
|
| 31. |
VOE4737252
|
[1] |
Screw
|
|
| 32. |
VOE4737479
|
[1] |
Plate
|
|
| 33. |
VOE951970
|
[1] |
Spring pin
|
|
| 34. |
VOE971071
|
[1] |
Hexagon nut
|
|
| 35. |
VOE4737928
|
[1] |
Bow
|
|
| 36. |
VOE970978
|
[4] |
Hexagon screw
|
|
| 37. |
VOE13960145
|
[4] |
Washer
|
|
| 4. |
VOE4821309
|
[0001] |
Rubber moulding
|
|
| 38. |
VOE4821004
|
[4] |
Bushing
|
|
| 39. |
VOE4881739
|
[4] |
Rubber bushing
|
|
| 40. |
VOE60110353
|
[4] |
Washer
|
|
| 41. |
VOE971099
|
[4] |
Flange lock nut
|
|
| 42. |
VOE4786044
|
[REQ] |
Sealing strip
|
L=2020
|
| 43. |
VOE4821011
|
[1] |
Fan ring
|
|
| 44. |
VOE4766526
|
[REQ] |
Sealing strip
|
L = 2 X 1040
|
| 45. |
VOE4821003
|
[1] |
Bracket
|
|
| 46. |
VOE4823859
|
[1] |
Protecting casing
|
|
| 47. |
VOE4823857
|
[1] |
Bracket
|
|
