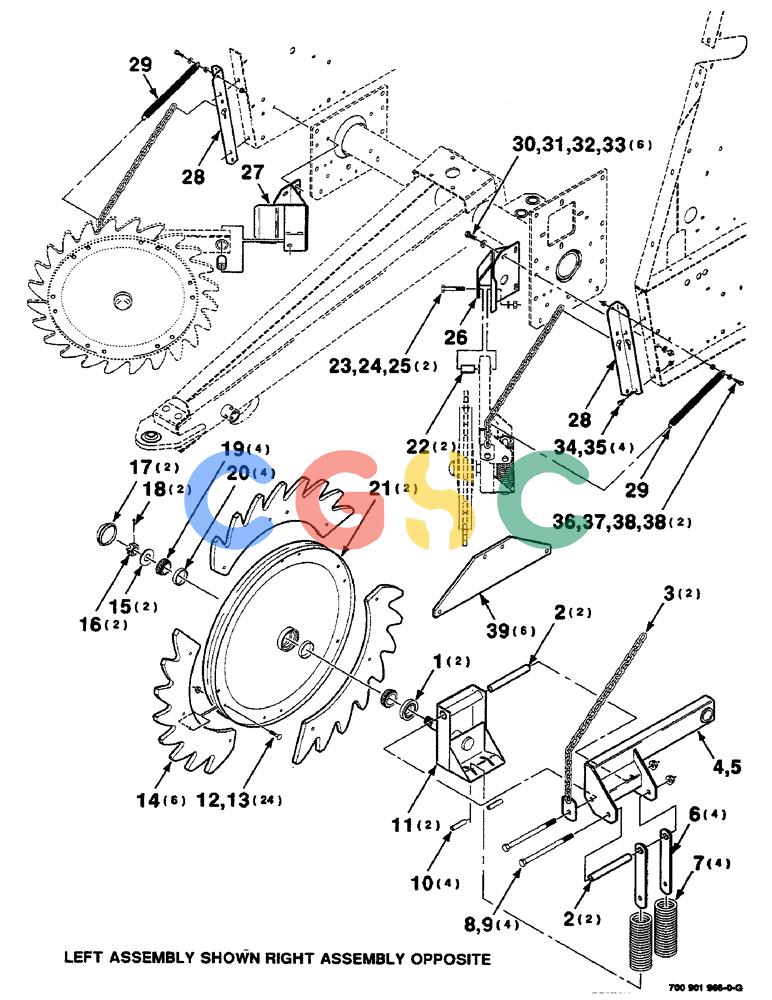

HK50428
|
[1] |
WHEEL
|
ATT
GATHERING WHEEL KIT COMPLETE
|
| 1. |
744912
|
[2] |
SEAL
|
CAS
- grease Superseded by part number: CAS744912
|
| 2. |
700117009
|
[4] |
SPACER
|
HFI
BUSHING
|
| 3. |
700117011
|
[2] |
SUPPORT
|
CAS
- chain
|
| 4. |
700117003
|
[1] |
STRUT
|
HFI
WA - wheel, left (Shown)
|
| 5. |
700117004
|
[1] |
SLIDE
|
HFI
STRUT WA - wheel, right (Not shown)
|
| 6. |
700117013
|
[4] |
STRAP
|
HFI
- link
|
| 7. |
700707651
|
[4] |
SPRING
|
CAS
- compression
|
| 8. |
413-8120
|
[4] |
BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5
|
CAS
1/2-13 X 7-1/2 B Superseded by part number: 86505997
|
| 9. |
231-5148
|
[4] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 10. |
138-2000
|
[4] |
PIN,12.7mm OD x 50.8mm L, Coiled
|
CAS
|
| 11. |
700116997
|
[2] |
SPINDLE
|
HFI
BRACKET - spindle
|
| 12. |
111-122
|
[24] |
CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/4", G5
|
CAS
BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 1/4", G5
|
| 13. |
231-5144
|
[24] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 14. |
8027476
|
[6] |
SEGMENT
|
CAS
NOTCHED SEGMENT - rubber (.750" Thick) (Superseded by 700711239 and 700128319) Superseded by part number: 700128319, 700711239
|
| . . |
700711239
|
[6] |
SEGMENT
|
CAS
NOTCHED RUBBER SEGMENT (.563" Thick)
|
| 15. |
96-11094
|
[2] |
WASHER,0.94" ID x 1.75" OD x 0.13" Thk
|
CAS
7/8 HARDENED PLAIN WASHER
|
| 16. |
425-1314
|
[2] |
SLOTTED NUT,7/8"-14, G5
|
CAS
7/8-14 SLOTTED HEX NUT Superseded by part number: 84151573
|
| 17. |
518842R1
|
[2] |
CAP
|
IH
- hub
|
| 18. |
432-1024
|
[2] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 19. |
E13994
|
[4] |
BEARING,25.4mm ID
|
CAS
CONE - bearing
|
| 20. |
50104
|
[4] |
BEARING CUP,50.01mm OD
|
CAS
CUP - bearing
|
| 21. |
6868954
|
[2] |
RIM
|
CAS
WHEEL ASM. (Includes item 20) groove .563" (Superseded by 700128318 and 700711239) Superseded by part number: 700711239, 700128318
|
| . . |
700128318
|
[2] |
WHEEL ASSY.
|
HFI
WHEEL ASSEMBLY (Includes item 20) groove width .563"
|
| 22. |
284463
|
[2] |
SPACER
|
CAS
BUSHING
|
| 23. |
413-1048
|
[2] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 24. |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 25. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 26. |
700117015
|
[1] |
SUPPORT
|
CAS
WA - pivot, left
|
| 27. |
700117016
|
[1] |
SUPPORT
|
CAS
WA - pivot, right
|
| 28. |
700119167
|
[2] |
ANGLE
|
CAS
- bracket
|
| 29. |
700708977
|
[2] |
SPRING
|
CAS
|
| 30. |
413-824
|
[6] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 31. |
705541
|
[6] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 32. |
80679
|
[6] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 33. |
425-108
|
[6] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 34. |
121-115
|
[4] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 35. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 36. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 37. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 38. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 39. |
700128319
|
[6] |
SHIM
|
CAS
(Only used with .75" gap wheel)
|
