卡特零件查询（725） 273-2938: PANEL GP-INSTRUMENT
广数供应链运营团队, 14 02月, 2025，浏览：
691 次

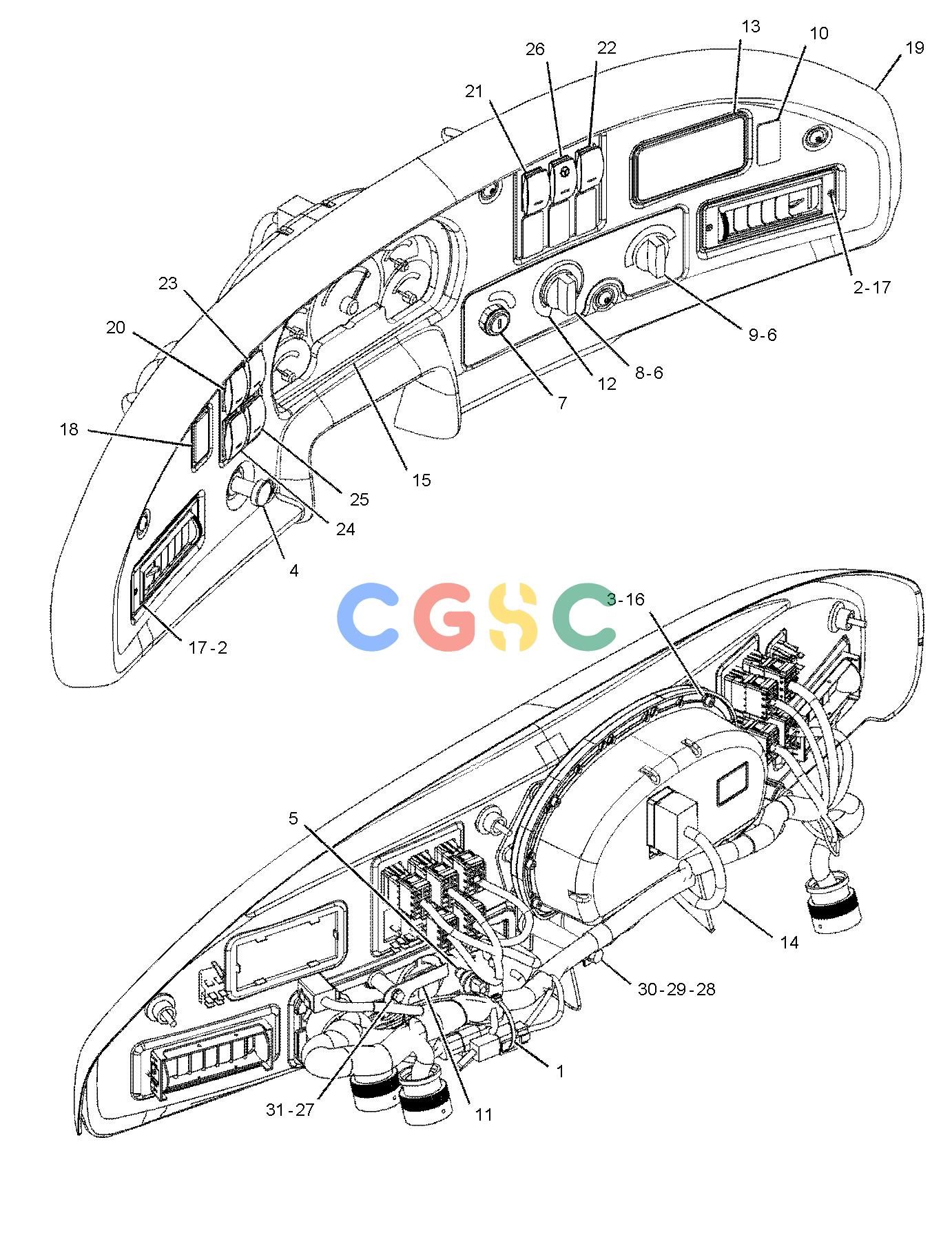

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 8Y-6388 | [2] | LOUVER AS-VENT | |
| 3. | 9F-5599 | [6] | LOCKWASHER | |
| 4. | 9W-0335 | [1] | LIGHTER AS-CIGAR(24-VOLT) | |
| 5. | 110-2079 | [2] | LAMP(24-VOLT) | |
| 6. | 110-6109 | [2] | KNOB-CONTROL(TEMPERATURE, FAN SPEED) | |
| 7. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 8. | 291-2165C | [1] | POTENTIOMETER AS(TEMPERATURE CONTROL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 236-8722 | [1] | WASHER(10.5X22.2X1.6-MM THK) | |
| 9. | 157-0217 | [1] | SWITCH AS-ROTARY(BLOWER FAN SPEED) | |
| | 6V-8362 | [6] | SCREW-MACHINE(8-32X0.31-IN) | |
| | 9B-7233 | [6] | LOCKWASHER | |
| 10. | 241-4505 | [5] | PLUG | |
| 11. | | [1] | PLATE |
| 12. | 242-5044 | [1] | FILM-IDENTIFICATION(INSTRUMENT PANEL) | |
| 13. | 256-4710 | [1] | COVER | |
| 14. | 301-8333 | [1] | HARNESS AS-DASH | |
| | 228-5856 | [2] | CONNECTOR(10-PIN) | |
| | 5P-6271 | [1] | CONNECTOR AS | |
| | 245-0160 | [1] | PLUG AS(3-PIN) | |
| | 245-0161 | [1] | PLUG AS(4-PIN) | |
| | | [1] | PLUG AS(8-PIN) |
| | 245-8021 | [1] | PLUG AS(24-PIN) | |
| | 8T-8737 | [22] | PLUG-SEAL | |
| | 169-0705 | [8] | SEAL | |
| | 8T-8730 | [70] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [14] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 107-1984 | [2] | SOCKET-LAMP | |
| | 141-8061B | | TAPE | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(45-CM) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 15. | 287-3247 | [1] | PANEL GP-INSTRUMENT | |
| 16. | 096-5969M | [6] | BOLT-SOCKET HEAD(M5X0.8X25-MM) | |
| 17. | 104-2091 | [4] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 18. | 198-9707M | [5] | SCREW-TRUSS HEAD(M6X1X35-MM) | |
| 19. | 257-0169 | [1] | PANEL AS-INSTRUMENT | |
| 20. | 271-2818 | [1] | SWITCH AS-ROCKER(HEADLIGHTS) | |
| 21. | 271-2820 | [1] | SWITCH AS-ROCKER(DIFFERENTIAL LOCK) | |
| 22. | 271-2825 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER) | |
| 23. | 271-2826 | [1] | SWITCH AS-ROCKER(WORK LIGHT) | |
| 24. | 271-2827 | [1] | SWITCH AS-ROCKER(REAR WASHER, WIPER) | |
| 25. | 271-2828 | [1] | SWITCH AS-ROCKER(HAZARD) | |
| 26. | 271-2830 | [1] | SWITCH AS-ROCKER(SECONDARY STEERING) | |
| 27. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 28. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 9M-8406 | [2] | CLIP(LOOP) | |
| 31. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
