卡特零件查询（725） 361-6592: CONTROL GP-XMSN & HOIST
广数供应链运营团队, 14 02月, 2025，浏览：
753 次

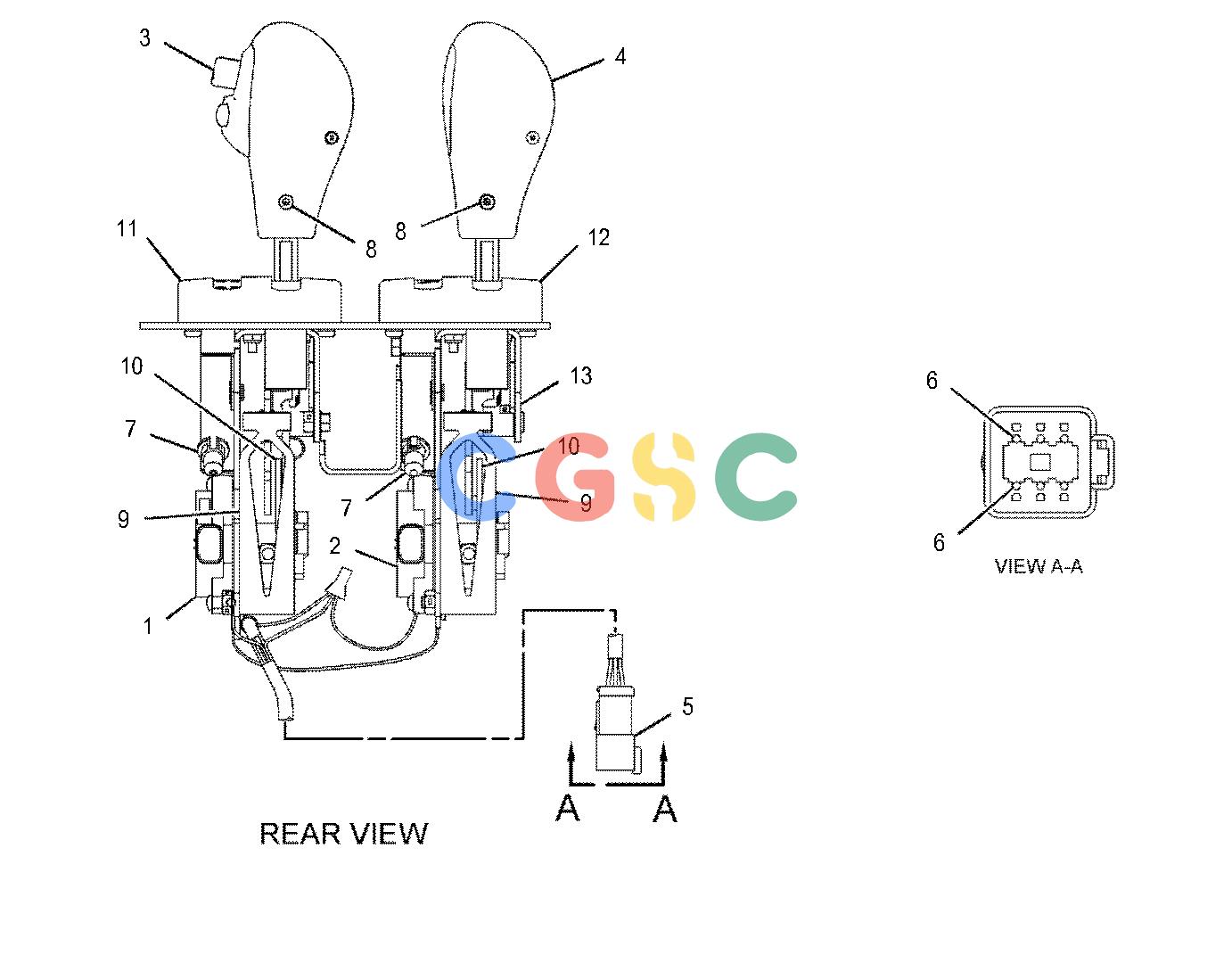

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 351-6944 | [1] | SENSOR GP-POSITION(TRANSMISSION CONTROL) | |
| 2. | 351-6942 | [1] | SENSOR GP-POSITION(HOIST CONTROL) | |
| 3. | 422-6883 | [1] | HANDLE AS(TRANSMISSION) | |
| | 143-1978 | [1] | ACTUATOR | |
| 4. | 422-6882 | [1] | HANDLE GP-MODULAR(HOIST) | |
| 5. | 151-9275 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 7. | 7N-5876 | [2] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 8. | 306-5048M | [4] | SCREW-PAN HEAD(M4X0.7X10-MM) | |
| 9. | 333-0080 | [2] | SPRING AS-LEAF | |
| 10. | 200-5965 | [2] | LEVER AS | |
| 11. | 423-4046 | [1] | INDICATOR(TRANSMISSION SPEED) | |
| 12. | 423-4043 | [1] | INDICATOR(BODY POSITION) | |
| 13. | 363-0623 | [1] | CONTROL GP-ELECTROHYDRAULIC(HOIST) | |
| | 351-6942 | [1] | SENSOR GP-POSITION | |
| | M | | METRIC PART |
