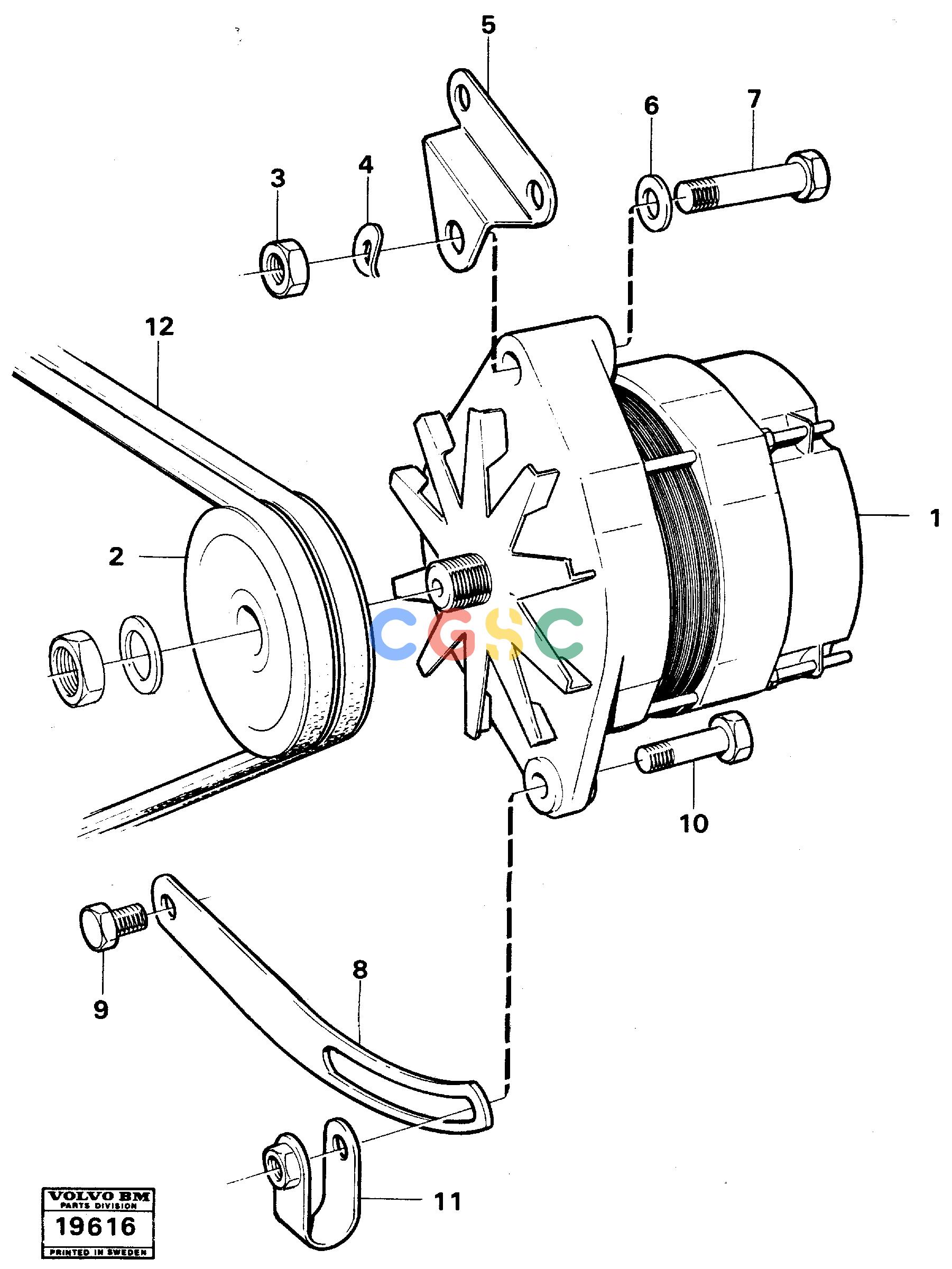

沃尔沃零件查询A25 VOLVO BM Alternator with assembling detailsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE13971098
|
[0001] |
Flange nut
|
|
| 4. |
|
[0001] |
Washer
|
|
| 5. |
VOE11030624
|
[0001] |
Anchorage
|
|
| 6. |
|
[0001] |
Washer
|
|
| 7. |
VOE11030564
|
[0001] |
Screw
|
|
| 1. |
VOE4803774
|
[0001] |
Alternator
|
|
| 8. |
VOE4965269
|
[0001] |
Tensioner
|
|
| 9. |
VOE13946173
|
[0001] |
Screw
|
|
| 10. |
VOE13947760
|
[0001] |
Screw
|
|
| 11. |
VOE466735
|
[0001] |
Brace
|
|
| 12. |
VOE966980
|
[0001] |
V-belt
|
|
| |
VOE11013510
|
[0001] |
Cable
|
D- - MOTOR/ENGINE
|
| |
|
|
None
|
|
| |
VOE863955
|
[0001] |
Alternator
|
|
| 2. |
VOE822573
|
[0001] |
Pulley
|
|
