| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

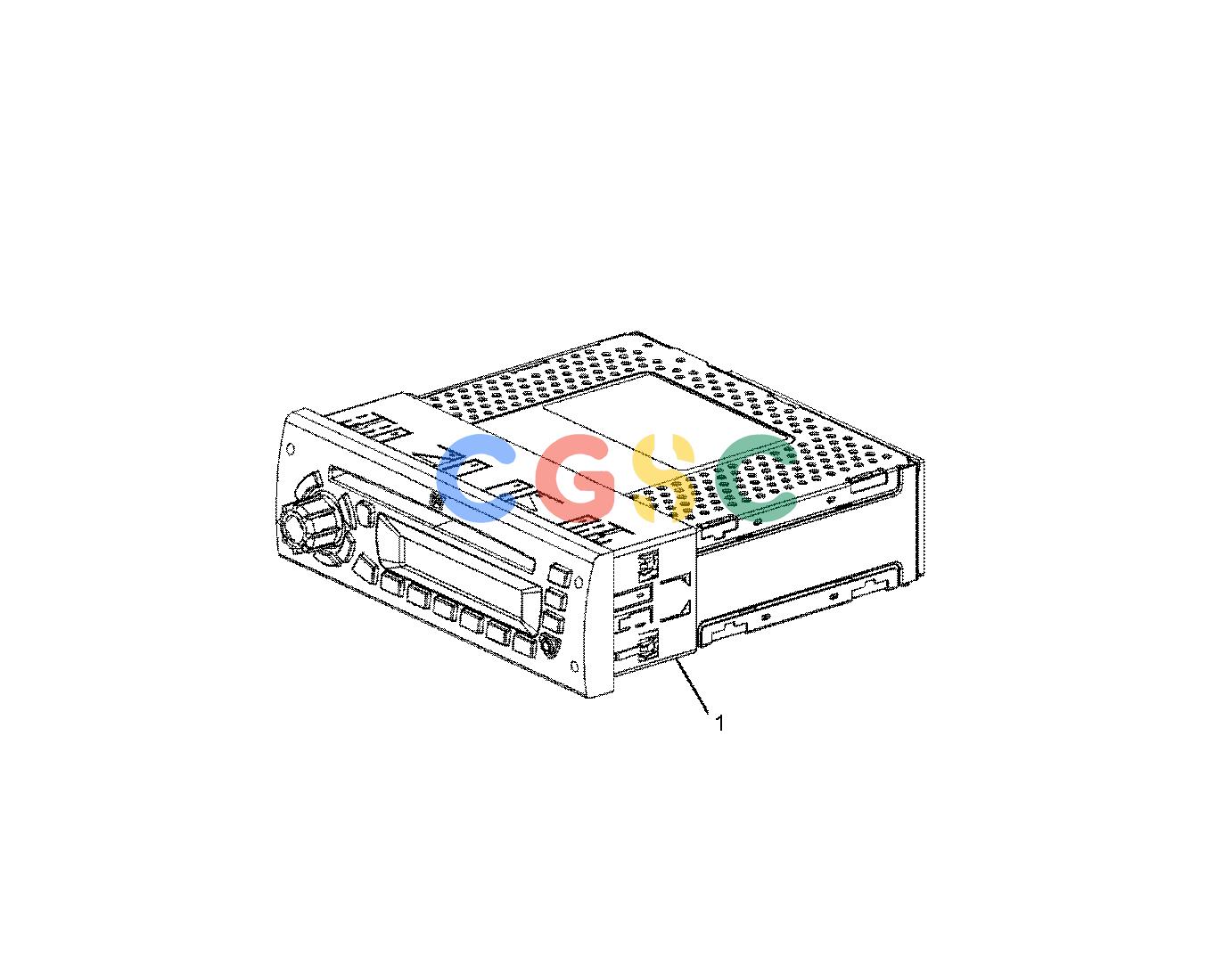

| 241-4936Y | [1] | RADIO GP(AM/FM/WB/CD PLAYER) | ||
| -OR- | ||||
| 331-5291Y | [1] | RADIO GP(AM/FM/WB/CD PLAYER) | ||
| 200-5728 | [1] | HARNESS AS-RADIO(FLANGE) | ||
| 172-8037 | [1] | CONNECTOR(RADIO) | ||
| 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| 8T-8737 | [1] | PLUG-SEAL | ||
| 160-3518 | [1] | KIT-RECEPTACLE(8-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 5C-2874M | [1] | NUT(M5X0.8-THD) | ||
| 089-7960 | [1] | WASHER(5.3X25X1.6-MM THK) | ||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
