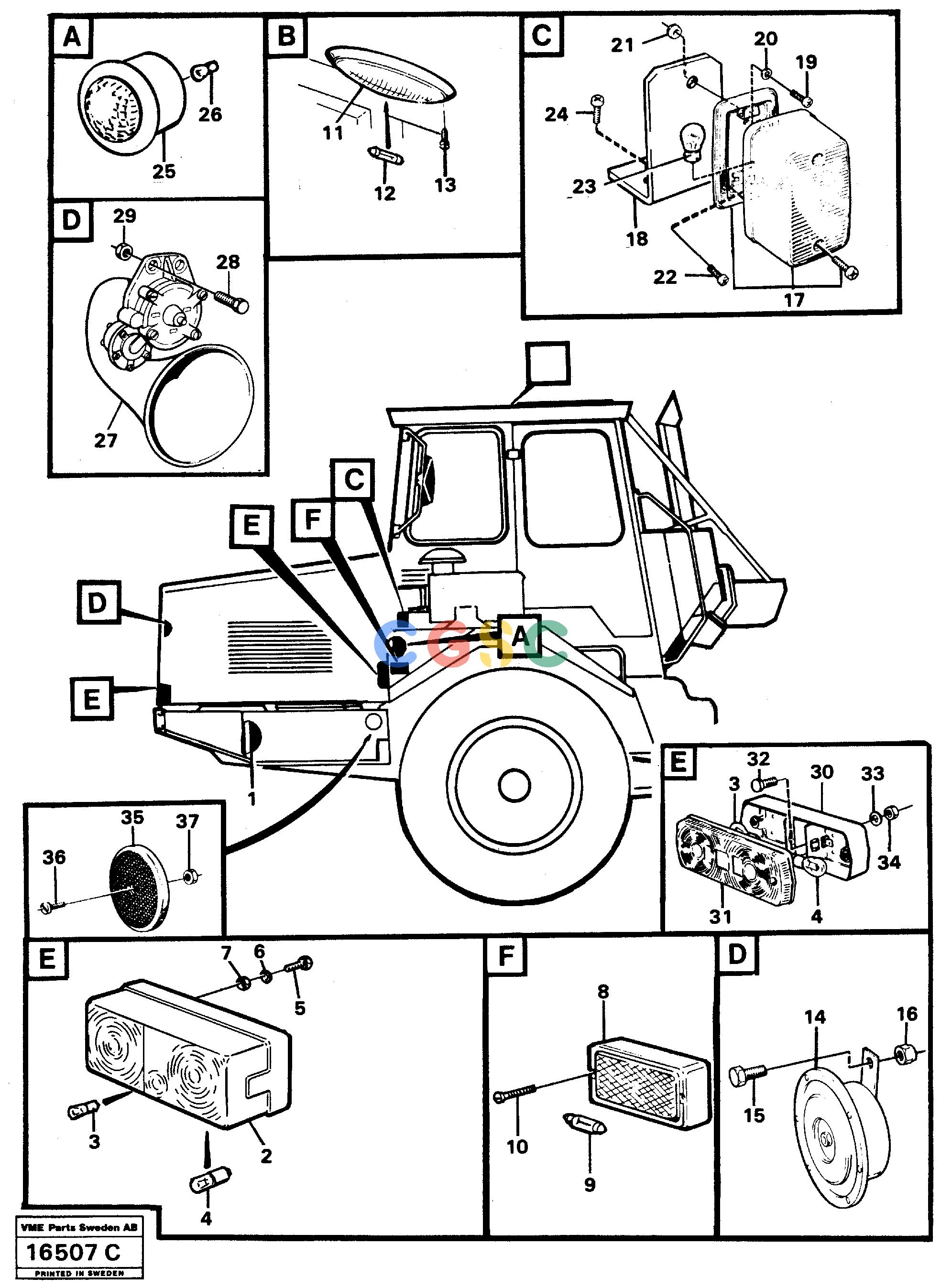

沃尔沃零件查询A25 VOLVO BM Lighting,tractorVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
767 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE992519
|
[0004] |
Bulb
|
5 W
|
| 37. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
| 4. |
VOE992521
|
[0004] |
Bulb
|
21W
|
| 5. |
VOE13955247
|
[0006] |
Screw
|
SER NO - 5479
|
| |
VOE13955247
|
[0002] |
Screw
|
SER NO 5480 -
|
| |
VOE955123
|
[0004] |
Cross recessed screw
|
L=19
|
| 1. |
VOE241067
|
[0002] |
Headlamp insert
|
|
| 6. |
VOE13940090
|
[0006] |
Washer
|
SER NO - 5479
|
| |
VOE13940090
|
[0002] |
Washer
|
SER NO 5480 -
|
| 7. |
VOE13963104
|
[0006] |
Lock nut
|
SER NO - 5479
|
| |
VOE13963104
|
[0002] |
Lock nut
|
SER NO 5480 -
|
| |
VOE1576682
|
[0002] |
Side marking lamp
|
|
| |
|
|
None
|
|
| 8. |
VOE1576684
|
[0002] |
Lens
|
|
| 9. |
VOE19926
|
[0002] |
Bulb
|
7 W
|
| 10. |
VOE955120
|
[0004] |
Cross recessed screw
|
|
| 11. |
VOE1586223
|
[0001] |
Lamp
|
|
| |
|
|
None
|
|
| 12. |
VOE182048
|
[0002] |
Bulb
|
|
| 13. |
VOE969278
|
[0002] |
Six point socket screw
|
|
| 14. |
VOE4786872
|
[0001] |
Horn
|
SER NO - 4889
|
| 15. |
VOE946441
|
[0001] |
Flange screw
|
SER NO - 4889
|
| 16. |
VOE13971098
|
[0001] |
Flange nut
|
|
| 17. |
VOE6857613
|
[0002] |
Dir Indicator
|
|
| 18. |
|
[0002] |
Bracket
|
|
| 19. |
VOE956086
|
[0002] |
Cross recessed screw
|
|
| 20. |
VOE13940090
|
[0004] |
Washer
|
|
| 21. |
VOE13963104
|
[0004] |
Lock nut
|
|
| |
VOE4785120
|
[0004] |
Position lamp
|
SER NO - 5479
|
| 22. |
VOE956084
|
[0002] |
Cross recessed screw
|
|
| 23. |
VOE992521
|
[0002] |
Bulb
|
|
| 24. |
VOE955137
|
[0004] |
Cross recessed screw
|
|
| 25. |
VOE6648884
|
[0002] |
Spotlight
|
|
| |
|
|
None
|
|
| 26. |
VOE992517
|
[0002] |
Bulb
|
|
| 27. |
VOE4803506
|
[0001] |
Horn
|
SER NO 4890 -
|
| |
|
|
None
|
USA
|
| 28. |
VOE13945444
|
[0002] |
Screw
|
SER NO 4890 -
|
| 2. |
VOE6644374
|
[0004] |
Lens
|
|
| |
|
|
None
|
USA
|
| 29. |
VOE13945408
|
[0002] |
Nut
|
SER NO 4890 -
|
| |
|
|
None
|
USA
|
| 30. |
VOE4803565
|
[0004] |
Lamp
|
SER NO 5480 -
|
| 31. |
VOE6212891
|
[0001] |
Lens
|
|
| 32. |
VOE13955272
|
[0002] |
Screw
|
|
| 33. |
VOE13949607
|
[0002] |
Washer
|
|
| 34. |
VOE13955781
|
[0002] |
Nut
|
|
| 35. |
VOE4780974
|
[0002] |
Side marking reflector
|
|
| 36. |
VOE13947542
|
[0002] |
Screw
|
|
