神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (02-010) - OIL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
449 次

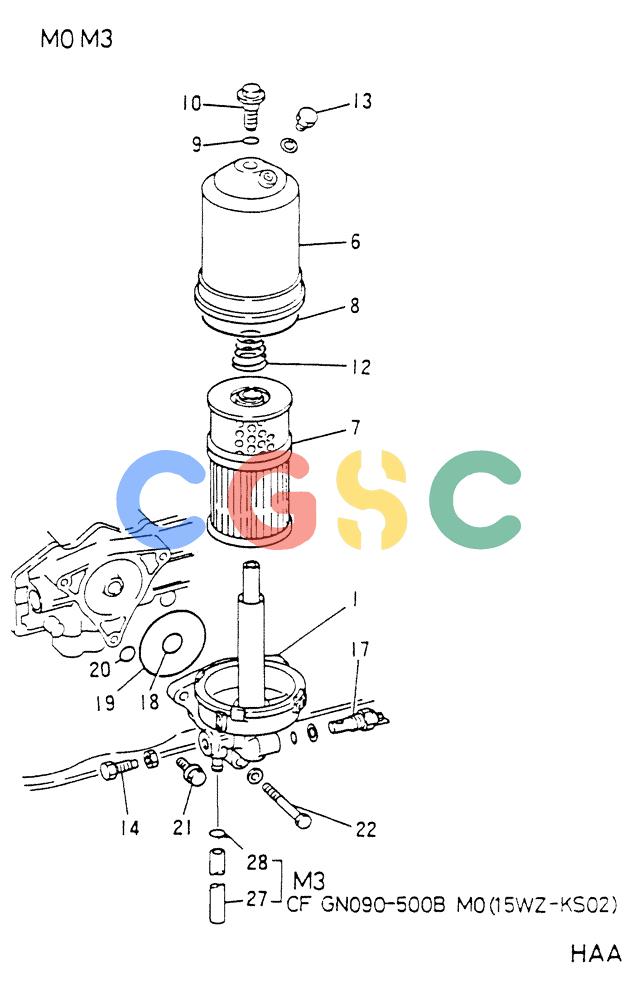

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME034775 | [1] | FILTER ASSY OIL OIL FILTER ASSY | FILTER ASSY OIL OIL FILTER ASSY |
| 1. | VAME034777 | [1] | U-BRACKET | KOBHEAD,OIL FILTER |
| 6. | VAME034734 | [1] | CASE ASSY OIL FILTE CASE,OIL FILTER | CASE ASSY OIL FILTE CASE,OIL FILTER |
| 7-9. | VAME034611 | [1] | ELEMENT | KOBOIL FILTER ELEMENT KIT Superseded by part number: 2451U172-1A |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONELEMENT,OIL FILTER |
| 8. | VAMH035144 | [1] | PACKING | KOBO-RING |
| 9. | VAMH035025 | [1] | O-RING | KOBO-RING Superseded by part number: 133268A1 |
| 10. | VAME034608 | [1] | BOLT | KOBBOLT.CTR |
| 12. | VAME034606 | [1] | SPRING | KOBSPRING SET |
| 13. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG,AIR Superseded by part number: 77270641, VAME016894 |
| 13. | VAMF660062 | [1] | PACKING | KOBGASKET 8 |
| 14. | VAME034609 | [1] | VALVE,DRAIN VALVE,DRAIN | VALVE,DRAIN VALVE,DRAIN |
| 14. | VAMF430727 | [1] | NUT NUT 12 | NUT NUT 12 |
| 17. | VAME040217 | [1] | BUZZER | KOBALARM,OIL BY-PASS |
| 17. | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 17. | VAME034610 | [1] | O-RING | KOBO-RING |
| 18. | VAMH035095 | [1] | O-RING | KOBO-RING |
| 19. | VAMF520594 | [1] | O-RING | KOBO-RING 90 |
| 20. | VA3112304100 | [1] | O-RING | KOBO-RING Superseded by part number: 132546A1 |
| 21. | VAMH000711 | [2] | SCREW | KOBBOLT,FLANGE 10X40 Superseded by part number: 135146A1 |
| 22. | VAMH000880 | [1] | BOLT | KOBBOLT 10X100 |
| 22. | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 27. | VAMS616003 | [1] | HOSE,FUEL L=400,FOR M3 ONLY | |
| 28. | VAMH021104 | [1] | CLAMP,HOSE,FOR M3 ONLY | |
