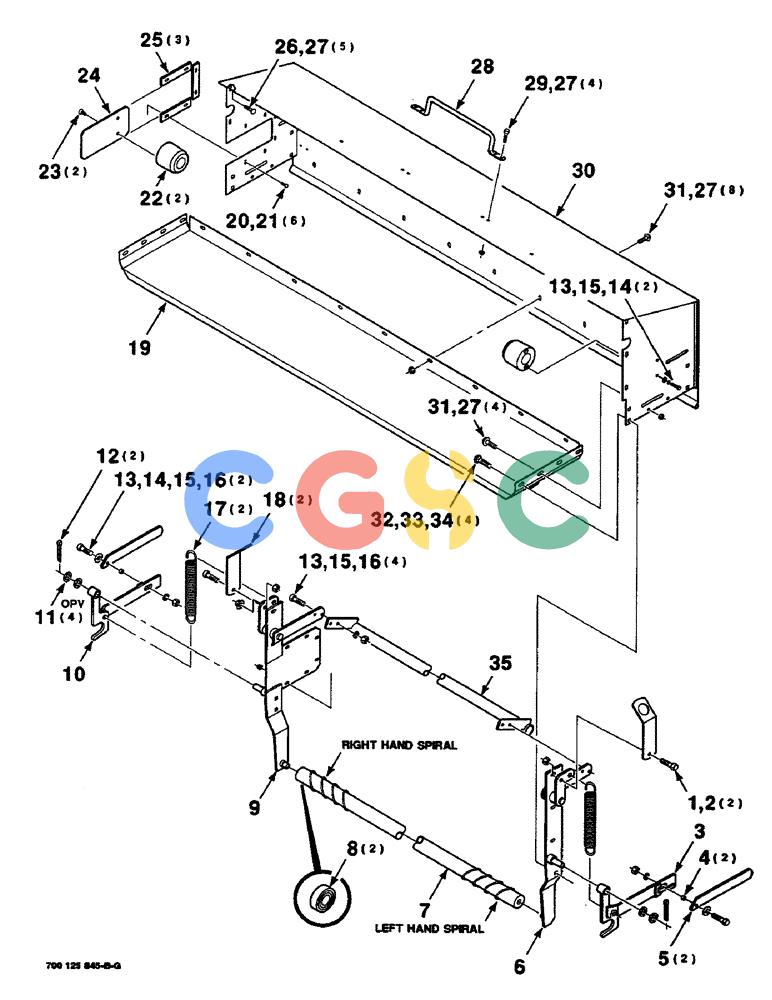

| 1. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 2. |
231-4116
|
[2] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 3. |
700125770
|
[1] |
LATCH
|
HFI
WA - left
|
| 4. |
276022
|
[2] |
SPACER
|
CAS
Superseded by part number: 51200205, 51200205, NLS
|
| 5. |
700125777
|
[2] |
HANDLE
|
HFI
|
| 6. |
700128333
|
[1] |
SUPPORT
|
HFI
WA - left
|
| 7. |
700125764
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes item 8)
|
| 8. |
700710877
|
[2] |
BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm
|
CAS
BEARING - cylindrical Superseded by part number: 84330053
|
| 9. |
700128334
|
[1] |
SUPPORT
|
HFI
WA - right
|
| 10. |
700125776
|
[1] |
LATCH
|
HFI
WA - right
|
| 11. |
52233
|
[4] |
BUSHING
|
CAS
5/8 X 14 GAUGE NRMB Superseded by part number: 51200381
|
| 12. |
432-820
|
[2] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 1/8" x 1-1/4" Superseded by part number: 87395, 87778232
|
| 13. |
413-516
|
[8] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
C Hex, 5/16"-18 x 1", G5, Full Thd Superseded by part number: 9635884, 72187198
|
| 14. |
496-21034
|
[4] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 15. |
492-11031
|
[8] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 16. |
425-105
|
[6] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 17. |
700710130
|
[2] |
SPRING
|
CAS
- extension
|
| 18. |
700125846
|
[2] |
HANGER
|
HFI
|
| 19. |
700128307
|
[1] |
PANEL
|
HFI
- floor
|
| 20. |
434-416
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5
|
CAS
1/4-20 X 1 RHSNB Superseded by part number: 280826
|
| 21. |
1703354
|
[6] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 22. |
700127924
|
[2] |
MOUNTING PARTS
|
CAS
MOUNTING - spool
|
| 23. |
164-40
|
[2] |
HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"
|
CAS
5/16-18 X 3/4 HSFCHCS SPL Superseded by part number: 61-43112
|
| 24. |
700127926
|
[1] |
PLATE
|
HFI
|
| 25. |
700127925
|
[3] |
PLATE
|
HFI
|
| 26. |
433-512
|
[5] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 27. |
231-5145
|
[21] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 28. |
700710878
|
[1] |
HANDLE
|
CAS
|
| 29. |
413-512
|
[4] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 30. |
700128340
|
[1] |
LID
|
HFI
WA
|
| 31. |
256873
|
[12] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 32. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 33. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 34. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 35. |
700125737
|
[1] |
PIPE
|
HFI
WA
|
