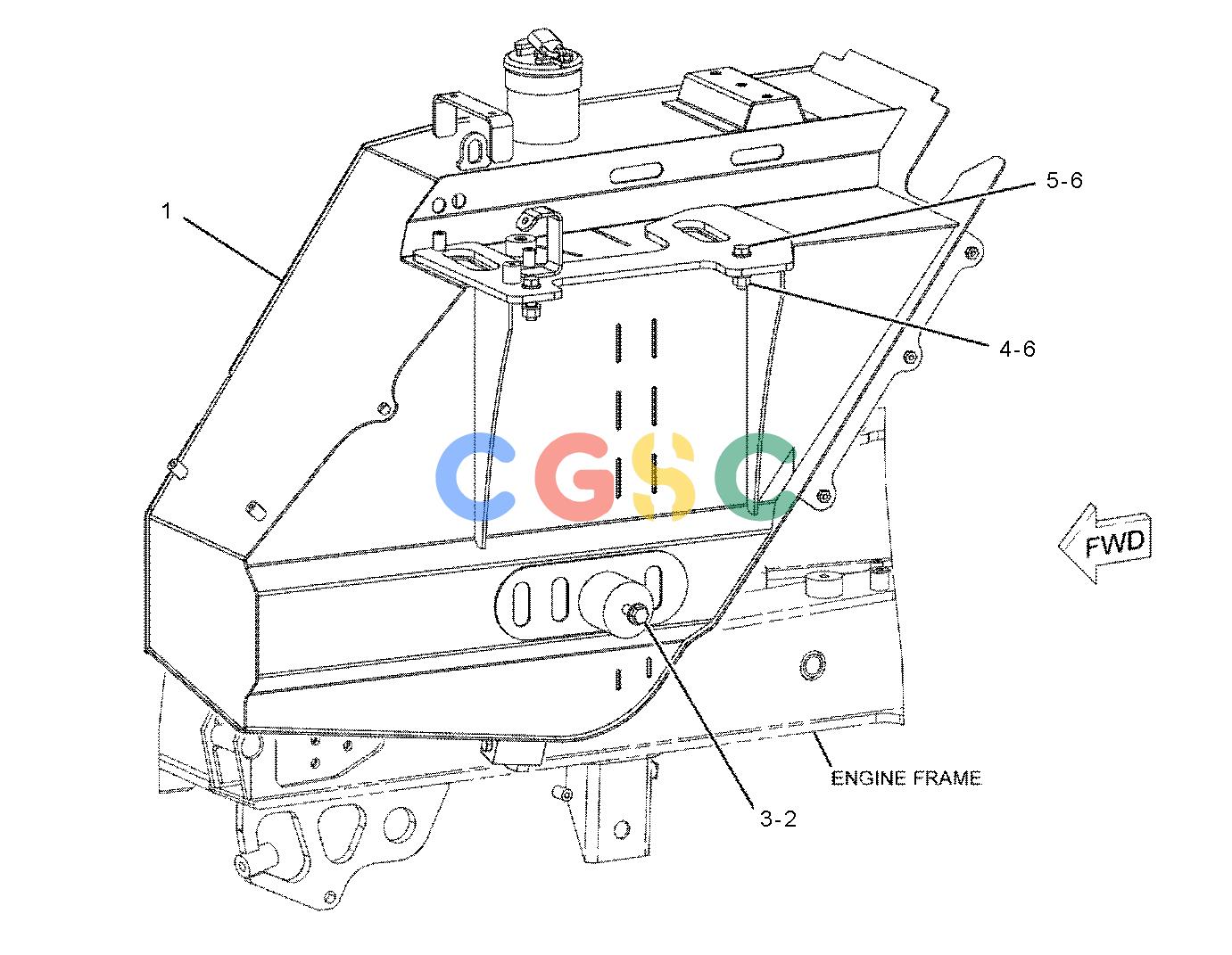

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 223-9610Y | [1] | TANK GP-FUEL | |
| 2. | 7X-0515 | [1] | WASHER-HARD(17X35X5-MM THK) | |
| 3. | 7X-2555M | [1] | BOLT(M16X2X80-MM) | |
| 4. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 5. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 6. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
