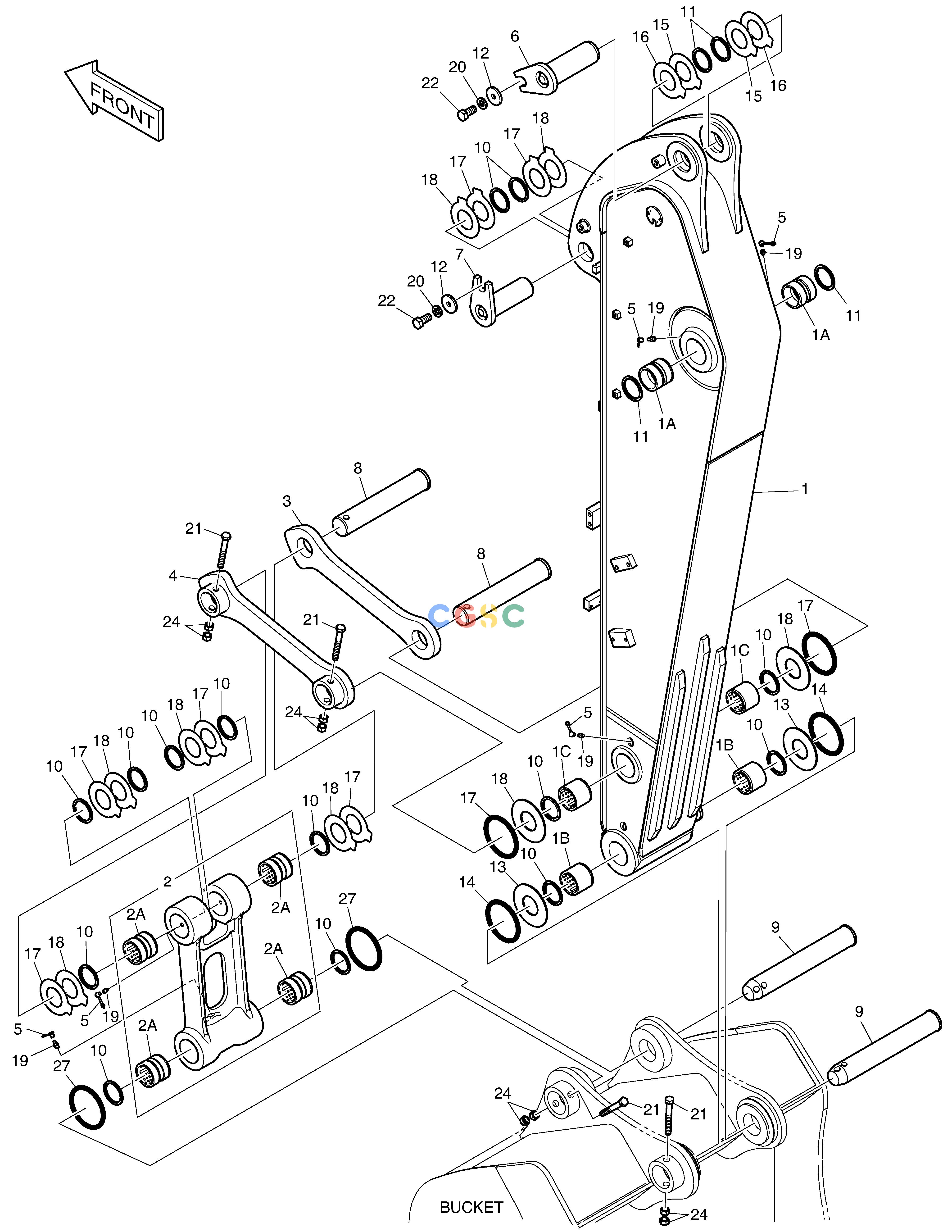

斗山零件查询ARM - 2.1m DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00176
|
[-] |
|
|
| 1. |
230204-00092A
|
[1] |
|
|
| 10. |
DS5502003
|
[14] |
SEAL,DUST
|
|
| 11. |
DS5502004
|
[4] |
SEAL,DUST
|
|
| 12. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 13. |
2114-1994B
|
[2] |
SPACER
|
|
| 14. |
180-00077D3
|
[2] |
O-RING
|
|
| 15. |
DS7752006
|
[2] |
SHIM
|
|
| 16. |
DS7752007
|
[2] |
SHIM
|
|
| 17. |
DS7752001
|
[8] |
SHIM
|
|
| 18. |
DS7752002
|
[8] |
SHIM
|
|
| 19. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 1A. |
131008-00042B
|
[2] |
|
|
| 1B. |
131004-00020A
|
[2] |
|
|
| 1C. |
131004-00021A
|
[2] |
|
|
| 2. |
101541-00023B
|
[1] |
|
|
| 20. |
S5102903
|
[2] |
WASHER
|
|
| 21. |
S0566766
|
[4] |
BOLT
|
|
| 22. |
S0521366
|
[2] |
BOLT
|
|
| 24. |
S4012933
|
[8] |
NUT
|
|
| 27. |
DS2854017
|
[2] |
|
|
| 2A. |
131004-00022A
|
[4] |
|
|
| 3. |
2155-1306B
|
[1] |
LINK;GUIDE(R)
|
|
| 4. |
2155-1307B
|
[1] |
LINK;GUIDE(L)
|
|
| 5. |
160-00020
|
[7] |
CAP
|
|
| 6. |
120501-01039
|
[1] |
|
|
| 7. |
120501-01040
|
[1] |
|
|
| 8. |
120501-01041
|
[2] |
|
|
| 9. |
120501-01042
|
[2] |
|
|
