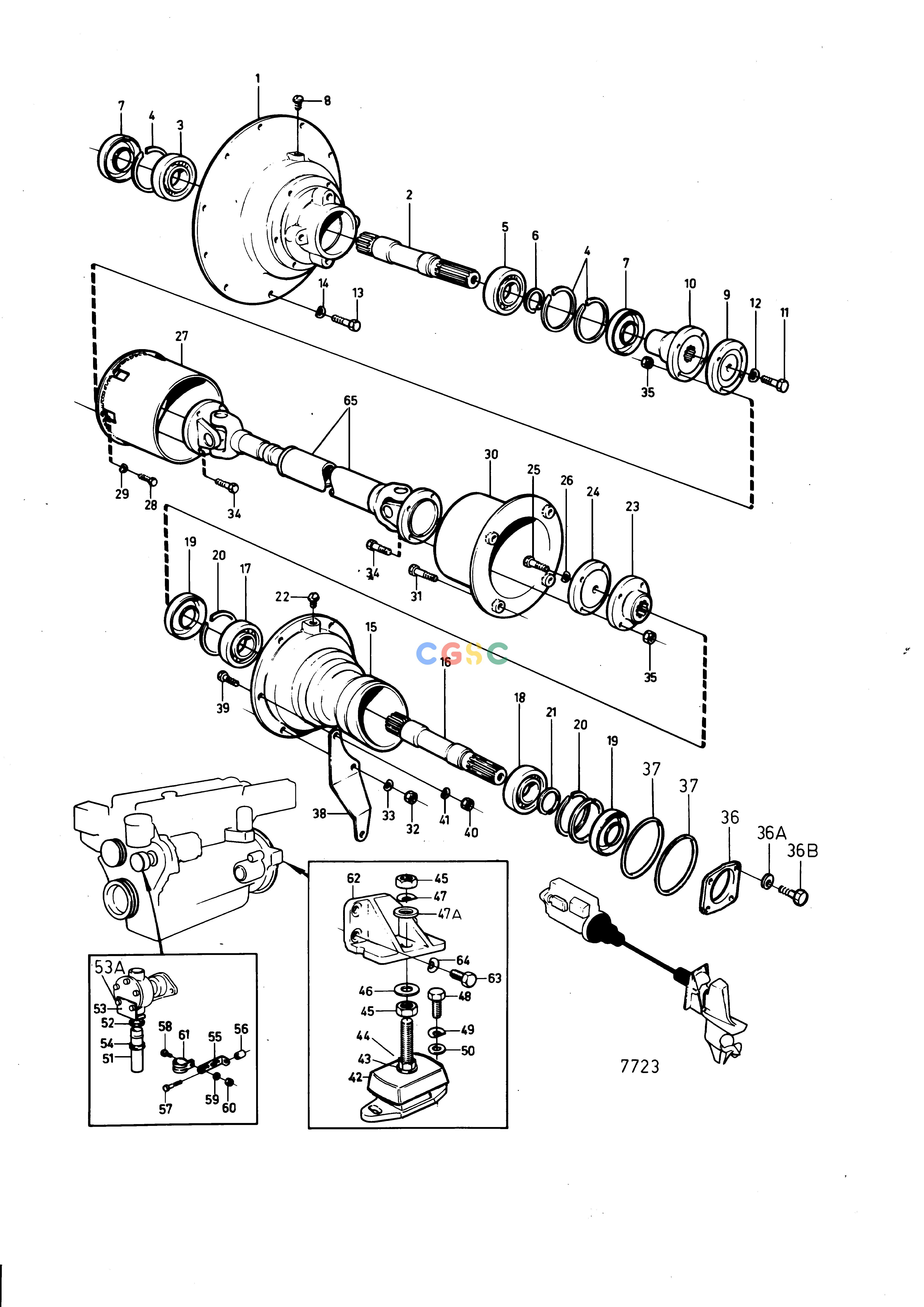

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30TransmissionsConnecting Components, Engine- Cardan ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838479
|
[1] |
Flywheel housing
|
|
| 2. |
838424
|
[1] |
Spindle
|
|
| 3. |
181105
|
[1] |
Ball bearing
|
|
| 4. |
914533
|
[3] |
Snap ring
|
|
| 5. |
11013
|
[1] |
Ball bearing
|
|
| 6. |
914462
|
[1] |
Snap ring
|
|
| 7. |
958860
|
[2] |
Sealing ring
|
|
| 8. |
804262
|
[1] |
Plug
|
|
| 9. |
838423
|
[1] |
Spacer flange
|
|
| 10. |
838474
|
[1] |
Clutch flange
|
|
| 11. |
955318
|
[1] |
Hexagon screw
|
|
| 12. |
942336
|
[1] |
Spring washer
|
|
| 13. |
955319
|
[11] |
Hexagon screw
|
|
| 14. |
941908
|
[11] |
Spring washer
|
|
| 15. |
839482
|
[1] |
Intermediate housing
|
|
| 16. |
838424
|
[1] |
Spindle
|
|
| 17. |
181105
|
[1] |
Ball bearing
|
|
| 18. |
11013
|
[1] |
Ball bearing
|
|
| 19. |
958860
|
[2] |
Sealing ring
|
|
| 20. |
914533
|
[3] |
Snap ring
|
|
| 21. |
914462
|
[1] |
Snap ring
|
|
| 22. |
804262
|
[1] |
Plug
|
|
| 23. |
838423
|
[1] |
Spacer flange
|
|
| 24. |
838422
|
[1] |
Clutch flange
|
|
| 25. |
955318
|
[1] |
Hexagon screw
|
|
| 26. |
942336
|
[1] |
Spring washer
|
|
| 27. |
838475
|
[1] |
Protecting casing
|
|
| 28. |
955535
|
[6] |
Hexagon screw
|
|
| 29. |
942336
|
[6] |
Spring washer
|
|
| 30. |
838421
|
[1] |
Protecting casing
|
|
| 31. |
955549
|
[4] |
Hexagon screw
|
|
| 32. |
940157
|
[4] |
Hexagon nut
|
|
| 33. |
941909
|
[4] |
Spring washer
|
|
| 34. |
945997
|
[8] |
Hexagon screw
|
|
| 35. |
945989
|
[8] |
Lock nut
|
|
| 36. |
838934
|
[1] |
Seal flange
|
|
| 36A. |
941908
|
[4] |
Spring washer
|
|
| 36B. |
955315
|
[4] |
Hexagon screw
|
|
| 37. |
858464
|
[2] |
Rubber ring
|
|
| 38. |
838935
|
[1] |
Bracket
|
P
|
| 38. |
838936
|
[1] |
Bracket
|
S.B
|
| 39. |
940134
|
[2] |
Hexagon screw
|
|
| 40. |
940157
|
[2] |
Hexagon nut
|
|
| 41. |
955897
|
[2] |
Washer
|
|
| 42. |
846764
|
[4] |
Rubber element
|
|
| 43. |
955900
|
[4] |
Washer
|
|
| 44. |
|
|
|
|
| 45. |
955805
|
[8] |
Hexagon nut
|
|
| 46. |
191940
|
[6] |
Washer
|
|
| 47. |
941912
|
[4] |
Spring washer
|
|
| 47A. |
955900
|
[2] |
Washer
|
|
| 48. |
955321
|
[8] |
Hexagon screw
|
|
| 49. |
941908
|
[8] |
Spring washer
|
|
| 50. |
960148
|
[8] |
Washer
|
|
| 51. |
847105
|
[1] |
Pipe
|
|
| 52. |
949658
|
[1] |
O-ring
|
(925061)
|
| 53. |
847107
|
[1] |
Lock brace
|
|
| 53A. |
963545
|
[2] |
Hexagon screw
|
|
| 54. |
847108
|
[1] |
Pipe retainer
|
|
| 55. |
965561
|
[1] |
Bracket
|
|
| 56. |
842350
|
[1] |
Spacer sleeve
|
|
| 57. |
955300
|
[1] |
Hexagon screw
|
|
| 58. |
955271
|
[1] |
Hexagon screw
|
|
| 59. |
955892
|
[1] |
Washer
|
|
| 60. |
955781
|
[1] |
Hexagon nut
|
|
| 61. |
952641
|
[1] |
Clamp
|
|
| 62. |
829515
|
[1] |
Engine bracket
|
P
|
| 62. |
829516
|
[1] |
Engine bracket
|
S.B
|
| 63. |
955341
|
[6] |
Hexagon screw
|
|
| 64. |
940143
|
[6] |
Toothed washer
|
|
| 65. |
|
|
|
|
