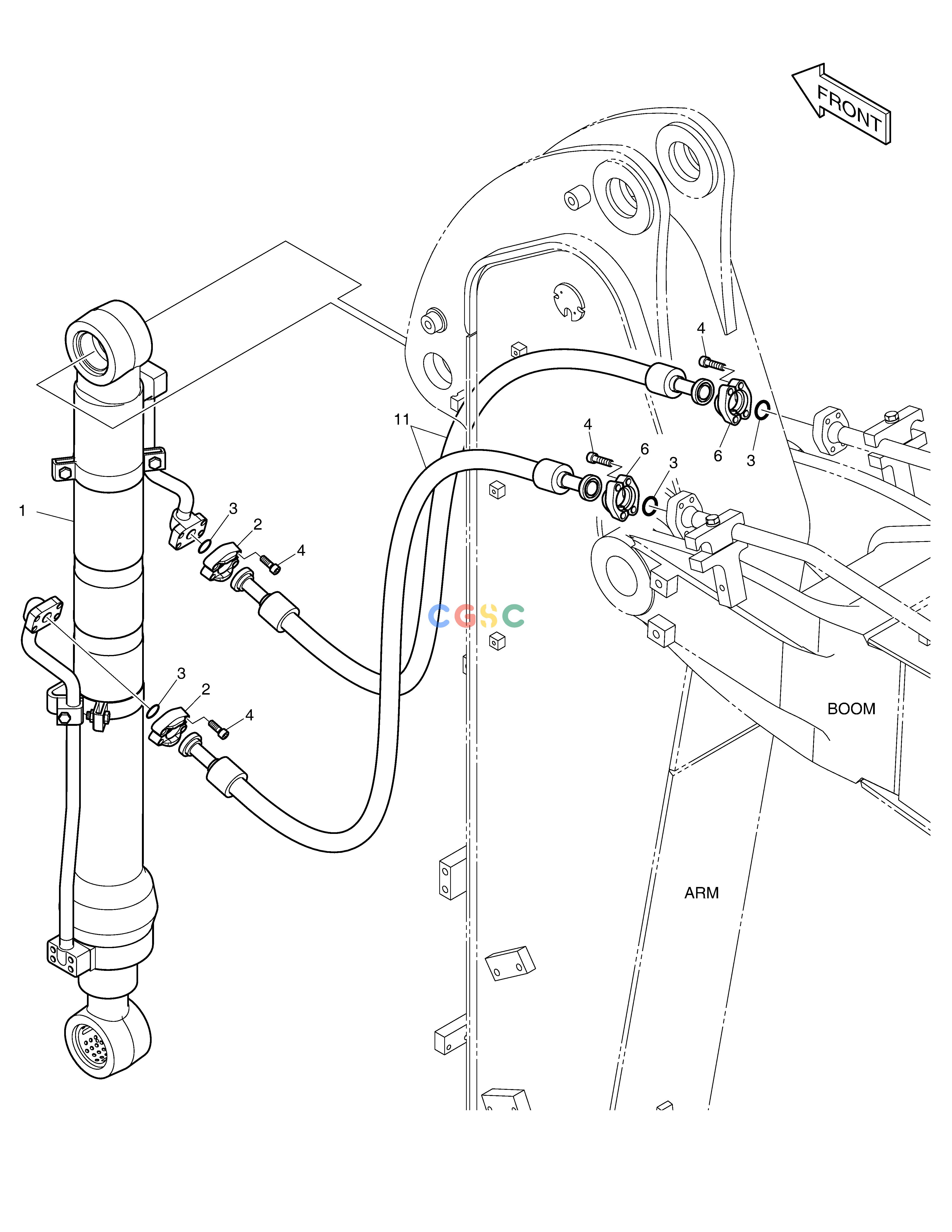

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-06685 | [-] | ||
| 1. | 400310-00089C | [1] | ||
| 11. | DS2038419 | [2] | ||
| 2. | 2181-9080 | [4] | FLANGE | |
| 3. | 2180-1026D2 | [4] | O-RING | |
| 4. | S2212366 | [16] | BOLT | |
| 6. | 2181-9079 | [4] | FLANGE |
广数供应链运营团队, 14 02月, 2025，浏览： 818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-06685 | [-] | ||
| 1. | 400310-00089C | [1] | ||
| 11. | DS2038419 | [2] | ||
| 2. | 2181-9080 | [4] | FLANGE | |
| 3. | 2180-1026D2 | [4] | O-RING | |
| 4. | S2212366 | [16] | BOLT | |
| 6. | 2181-9079 | [4] | FLANGE |
