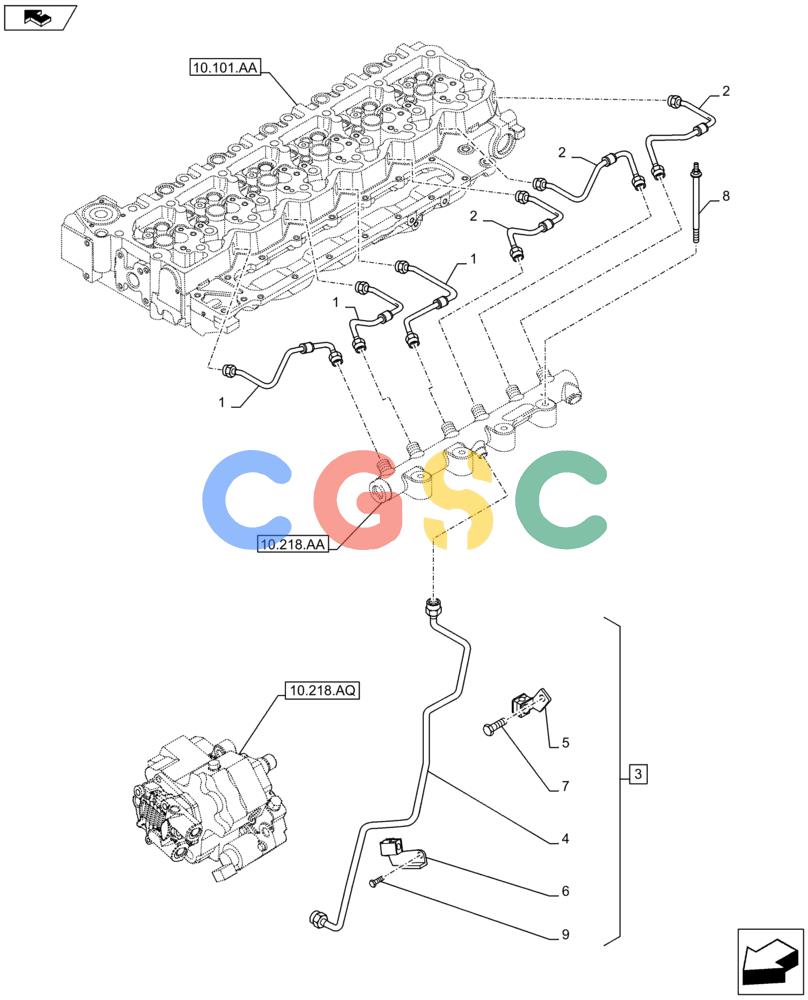

纽荷兰零件查询(F4HFA613F E005) - ENGINE - 5801550460 - 84316932 (7/13-) (10.218.AI[01]) - INJECTION PIPE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
808 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857017 | [3] | PIPE | TOR |
| 2. | 2857046 | [3] | PIPE | TOR Superseded by part number: |
| 3. | 2857049 | [1] | FUEL TUBE,178.6, 86.1 mm Length | TORASSY, Incl 4 - 7, 9 |
| 4. | NSS | [1] | NOT SERVICED SEPARATELY | CONPipe, Incl in 3 |
| 5. | 2854556 | [2] | CLAMP BRACKET | TOR |
| 5. | 2854558 | [1] | RUBBER SEAL | TOR |
| 6. | 2854557 | [2] | CLAMP BRACKET | TOR |
| 7. | 2854559 | [2] | SCREW | TOR Superseded by part number: |
| 8. | 2853537 | [4] | BOLT | TOR Superseded by part number: 504053874 |
| 9. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORM8 x 1.25 x 20 Superseded by part number: 16673635 |
