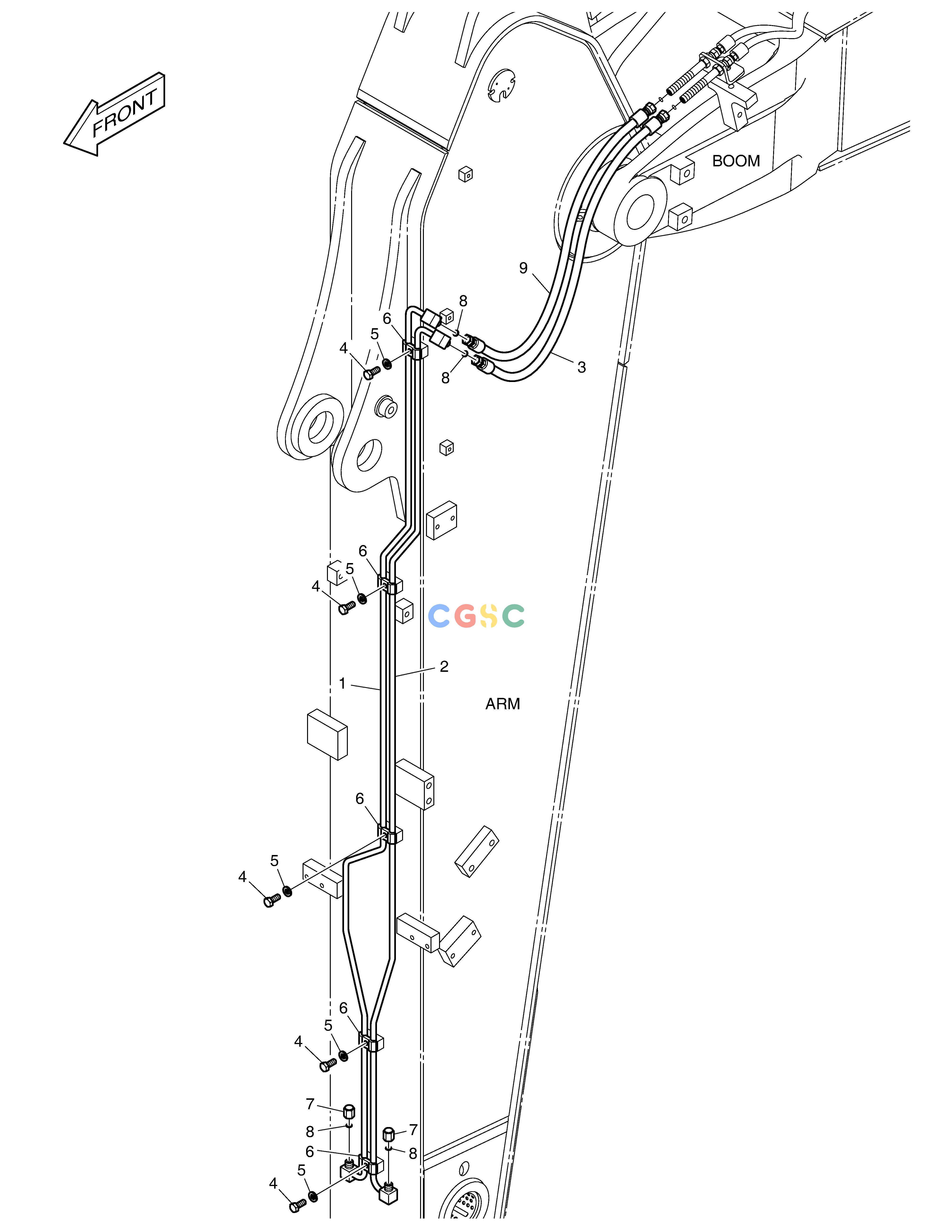

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-02419 | [-] | ||
| 1. | 420207-00558C | [1] | ||
| 2. | 420207-00559B | [1] | ||
| 3. | DS20111011 | [1] | ||
| 4. | S0508866 | [5] | BOLT | |
| 5. | S5102503 | [5] | . WASHER | |
| 6. | K1004011 | [5] | CLAMP | |
| 7. | DS2916007 | [2] | ||
| 8. | S8030041 | [4] | O-RING | |
| 9. | DS20111095 | [1] |
广数供应链运营团队, 14 02月, 2025，浏览： 555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-02419 | [-] | ||
| 1. | 420207-00558C | [1] | ||
| 2. | 420207-00559B | [1] | ||
| 3. | DS20111011 | [1] | ||
| 4. | S0508866 | [5] | BOLT | |
| 5. | S5102503 | [5] | . WASHER | |
| 6. | K1004011 | [5] | CLAMP | |
| 7. | DS2916007 | [2] | ||
| 8. | S8030041 | [4] | O-RING | |
| 9. | DS20111095 | [1] |
