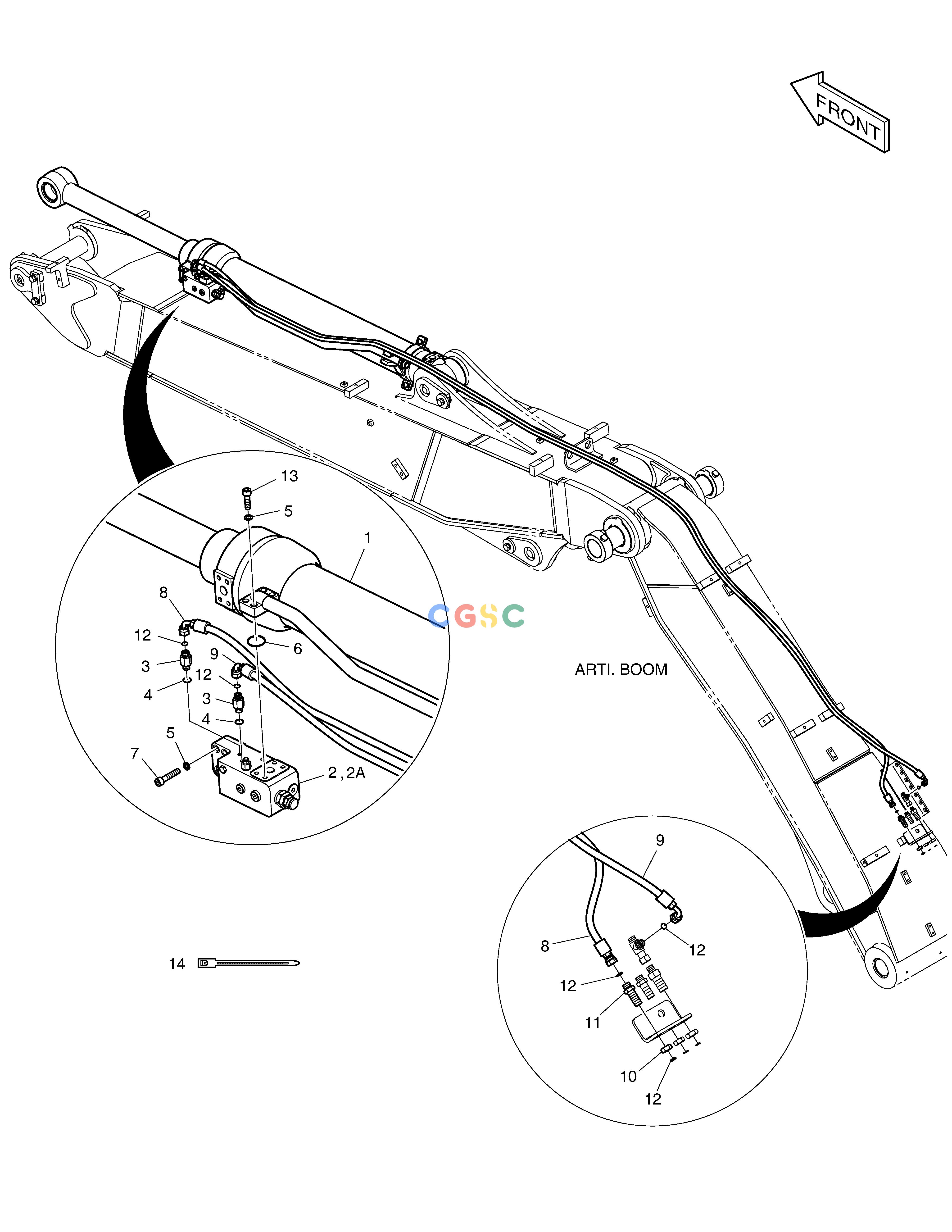

斗山零件查询ARTI BOOM PIPING - LOCK VALVE(ARM) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07225
|
[-] |
|
|
| 1. |
400305-00074B
|
[1] |
|
|
| 10. |
DS0301066
|
[1] |
|
|
| 11. |
DS2248004
|
[1] |
ELBOW;45 DEG
|
|
| 12. |
S8030041
|
[5] |
O-RING
|
|
| 13. |
S2212366
|
[4] |
BOLT
|
|
| 14. |
2124-1084D3
|
[16] |
CLIP;BAND
|
|
| 2. |
410114-00144
|
[1] |
|
|
| 2A. |
401107-01305
|
[1] |
|
|
| 3. |
DS2232212
|
[2] |
|
|
| 4. |
S8000111
|
[2] |
O-RING
|
|
| 5. |
S5110603
|
[8] |
WASHER
|
|
| 6. |
S8000281
|
[1] |
O-RING
|
|
| 7. |
S2212666
|
[4] |
BOLT;SOCKET M10X1.5X50
|
|
| 8. |
DS20131690
|
[1] |
|
|
| 9. |
DS2023498
|
[1] |
|
|
