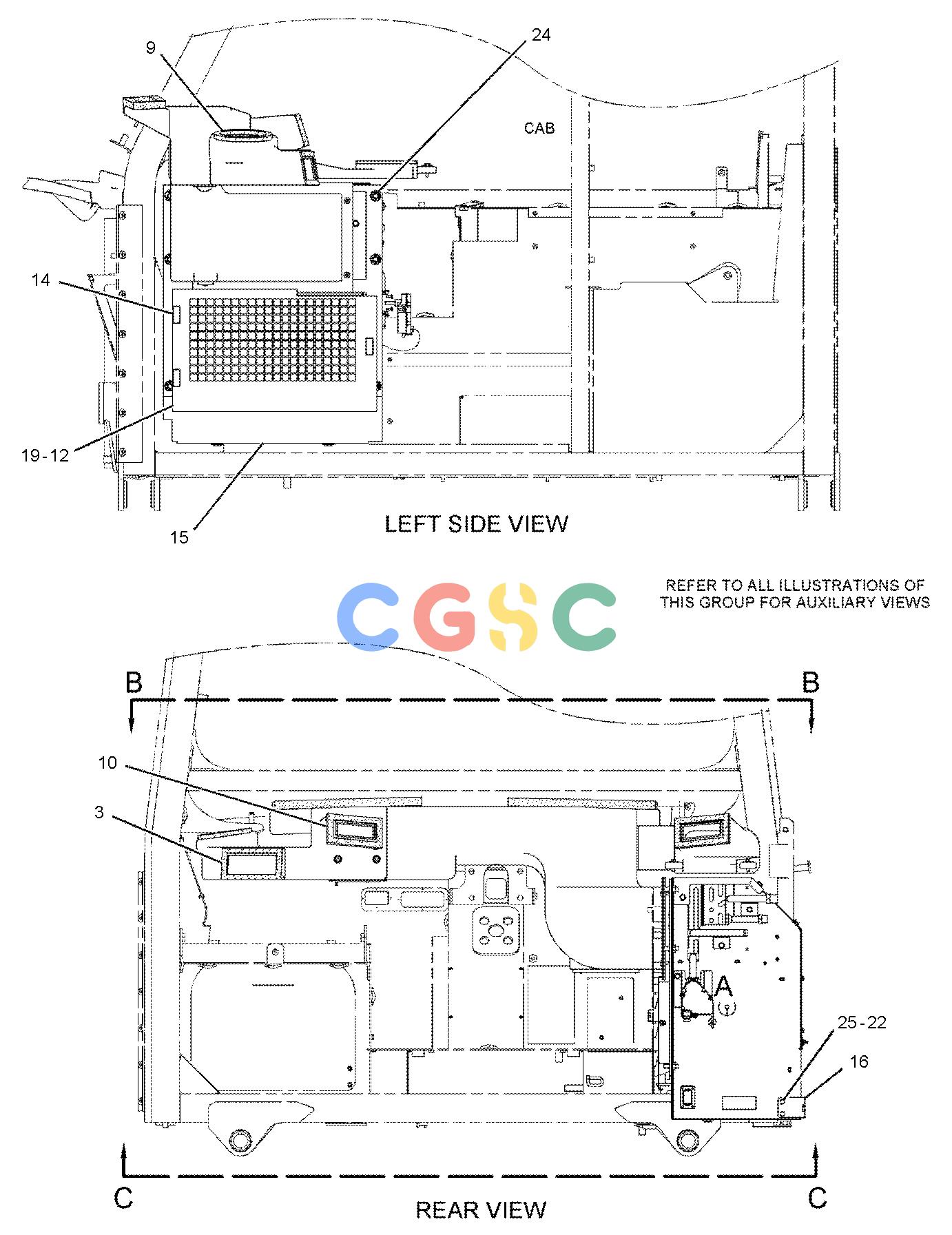

卡特零件查询（725） 246-0845: AIR CONDITIONER & MOUNTING GP
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 246-0846Y | [1] | AIR CONDITIONER GP | |
| | | | S/N B1L1-469 |
| | 272-0215Y | [1] | AIR CONDITIONER GP | |
| | | | S/N B1L470-711 |
| | | | |
| | 185-9464 | [3] | LATCH AS(COMPARTMENT) | |
| | 8Y-6388 | [1] | LOUVER AS-VENT | |
| | 151-5715 | [1] | LOUVER AS-VENT | |
| | | | |
| | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| | 170-5342 | [1] | COVER | |
| | 119-3355 | [1] | FILTER ELEMENT-CAB AIR(STANDARD EFFICIENCY) | |
| | | | -OR- |
| | 233-8359 | [1] | FILTER ELEMENT-CAB AIR(ULTRA HIGH EFFICIENCY) | |
| | | | -OR- |
| | 268-6704 | [1] | FILTER ELEMENT-CAB AIR(LOW RESTRICTION) | |
| | 120-3950 | [1] | GASKET | |
| | 170-5337 | [1] | GASKET | |
| | 170-5338 | [2] | GASKET | |
| | 170-5339 | [1] | GASKET | |
| | 170-5340 | [2] | GASKET | |
| | 170-5341 | [1] | GASKET | |
| | 175-7141M | [8] | NUT-HEX FLANGE(M10X1.5-THD) | |
| | 160-8720 | [1] | PLENUM | |
| | 170-4855 | [1] | PLENUM | |
| | 104-2091 | [2] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| | 118-5619 | [2] | SCREW-FLAT HEAD(6-20X1-IN) | |
| | 9X-2044M | [4] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| | 8T-7004M | [8] | STUD-TAPERLOCK(M10X1.5X35-MM) | |
| | 104-5604 | [4] | WASHER(7.2X25X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
