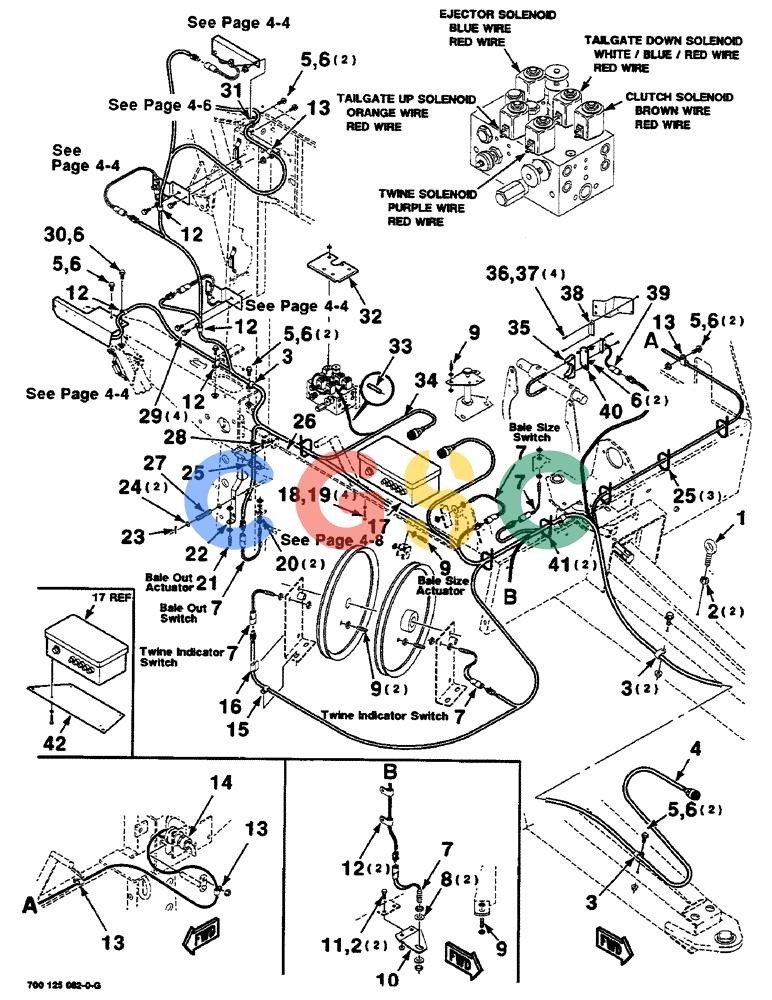

| 1. |
866061
|
[1] |
EYEBOLT
|
CAS
EYE BOLT
|
| 2. |
231-5144
|
[4] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 3. |
515-23190
|
[4] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
- line 1" Superseded by part number: 86624005
|
| 4. |
700710919
|
[1] |
HARNESS
|
CAS
- wire
|
| 5. |
121-115
|
[9] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
231-5145
|
[12] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 7. |
700119161
|
[6] |
SWITCH
|
L
SENSOR "A"
|
| 8. |
700710190
|
[2] |
WASHER
|
CAS
3/8 NPW STAINLESS STEEL
|
| 9. |
700710211
|
[5] |
ACTUATOR
|
IH
|
| 10. |
700122969
|
[1] |
PLATE
|
HFI
|
| 11. |
413-412
|
[2] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| 12. |
515-2295
|
[6] |
CLAMP,3/8", Insul, 5/16" Bolt
|
CAS
Superseded by part number: 86637978
|
| 13. |
515-25127
|
[4] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 14. |
700707326
|
[1] |
SWITCH
|
HFI
|
| 15. |
515-2395
|
[1] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
- line, 3/4" Superseded by part number: 86572009
|
| 16. |
700710813
|
[1] |
CLIP
|
CAS
- terminal
|
| 17. |
700710920
|
[1] |
CONTROL
|
CAS
BOX ASSEMBLY
|
| 18. |
700711230
|
[4] |
#10-32 X 3/4 CRPHMS
|
|
| 19. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 20. |
495-11041
|
[2] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
Superseded by part number: 87016
|
| 21. |
700707354
|
[1] |
CONNECTION,ELECTRIC
|
IH
ACTUATOR
|
| 22. |
700116130
|
[1] |
SUPPORT
|
HFI
WA - switch (S.N. CFH0016501 thru CFH0057048)
|
| . . |
700119957
|
[1] |
SUPPORT
|
CAS
WA - switch (S.N. CFH0057049 and later)
|
| 23. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 24. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 25. |
L18337
|
[4] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 26. |
Q657
|
[1] |
HEADED PIN,9.53mm OD x 69.85mm L
|
IH
3/8 X 2-3/4 CLEVIS PIN
|
| 27. |
700707978
|
[1] |
SPRING
|
IH
- compression
|
| 28. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
PIN, SPLIT (COTTER), 1/8" x 3/4" Superseded by part number: 80756
|
| 29. |
172463
|
[4] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS
|
| 30. |
121-108
|
[1] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 X 1 HWHMS
|
| 31. |
700708340
|
[1] |
GROMMET
|
CAS
|
| 32. |
700122807
|
[1] |
COVER
|
HFI
|
| 33. |
A149796
|
[1] |
FUSE
|
CAS
- 3 AMP Superseded by part number: 86503942
|
| 34. |
700708763
|
[1] |
HARNESS
|
CAS
- wire, rear
|
| 35. |
A135474
|
[1] |
CLAMP
|
CAS
|
| 36. |
700710188
|
[4] |
SCREW
|
CAS
#6-32 X 3/4 CRPHMS
|
| 37. |
700710189
|
[4] |
LOCK NUT
|
CAS
#6-32 LHSN
|
| 38. |
700709996
|
[1] |
SWITCH
|
IH
MAGNET
|
| 39. |
700710208
|
[1] |
ROTARY SWITCH
|
L
SWITCH N.O.
|
| 40. |
700122551
|
[1] |
MOUNTING PARTS
|
HFI
SUPPORT - switch
|
| 41. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
TIE
|
| 42. |
700125147
|
[1] |
PLATE
|
CAS
- adapter
|
