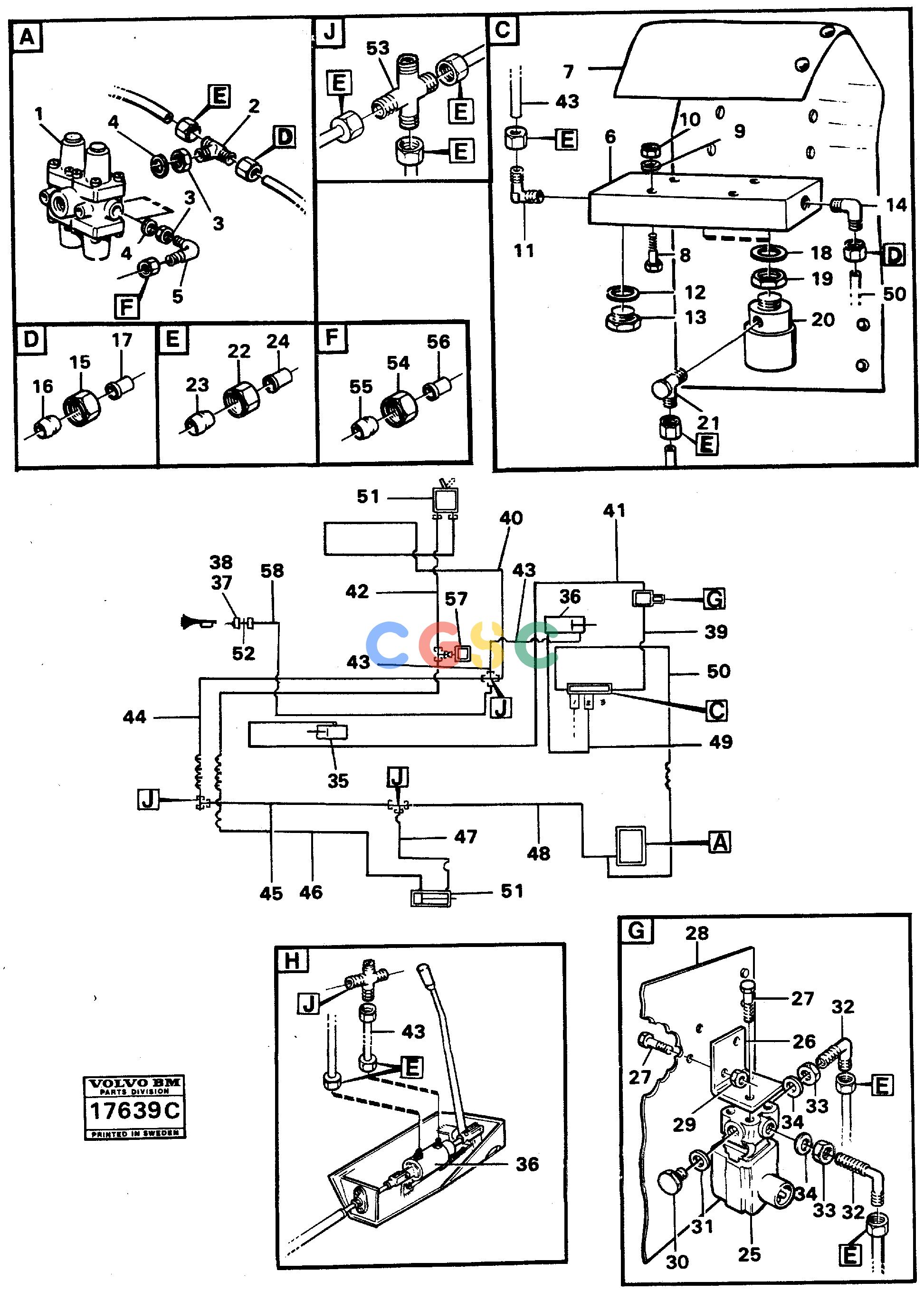

沃尔沃零件查询A25 VOLVO BM Comp. air controls 1. protect.valve,valve platecear And Tipping ControlsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE943924
|
[0002] |
O-ring
|
|
| 45. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 390
|
| 46. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=2850
|
| 47. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 1000
|
| 48. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 2200
|
| 49. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3250
|
| 50. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=1180
|
| 51. |
|
[0001] |
Control for h/l gear
|
SEE GROUP 43
|
| |
|
[0001] |
Tipp control
|
SEE GROUP 91
|
| 52. |
VOE954371
|
[0001] |
Joint nipple
|
CAB 4910
|
| |
VOE11053891
|
[0001] |
Banjo nipple
|
SER NO 4890 -
|
| 5. |
VOE945964
|
[0002] |
Elbow nipple
|
|
| |
VOE957178
|
[0001] |
Gasket
|
SER NO 4890 -
|
| 53. |
VOE180084
|
[0003] |
T-nipple
|
|
| 54. |
VOE326597
|
[0002] |
Fitting nut
|
|
| 55. |
VOE326600
|
[0002] |
Sleeve
|
|
| 56. |
VOE967548
|
[0002] |
Support sleeve
|
|
| 57. |
VOE340993
|
[0001] |
Pressure indicator
|
|
| 58. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3800
|
| 6. |
VOE4787585
|
[0001] |
Valve plate
|
|
| 7. |
|
[0001] |
Ptct capping
|
|
| 8. |
VOE959223
|
[0002] |
Hex. socket screw
|
|
| 1. |
VOE4871098
|
[0001] |
Protecting valve
|
|
| 9. |
VOE955949
|
[0002] |
Toothed washer
|
|
| 10. |
VOE13945408
|
[0002] |
Nut
|
|
| 11. |
VOE329638
|
[0001] |
Elbow nipple
|
|
| 12. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 13. |
VOE13960634
|
[0001] |
Plug
|
|
| 14. |
VOE326583
|
[0001] |
Elbow nipple
|
|
| 15. |
VOE326596
|
[0001] |
Fitting nut
|
|
| 16. |
VOE326599
|
[0001] |
Ferrule
|
|
| 17. |
VOE967559
|
[0001] |
Sleeve
|
|
| 18. |
VOE13949657
|
[0002] |
O-ring
|
|
| |
VOE272701
|
[0001] |
Repair kit
|
|
| 19. |
VOE945895
|
[0002] |
Hexagon nut
|
|
| 20. |
VOE1576728
|
[0002] |
Solenoid valve
|
AT-REGULATOR.
|
| |
|
|
None
|
SEE GROUP 25
|
| |
VOE273308
|
[0001] |
Repair kit
|
|
| 21. |
VOE6626873
|
[2] |
Fitting
|
|
| |
VOE957175
|
[4] |
Gasket
|
|
| 22. |
VOE954356
|
[0016] |
Fitting nut
|
|
| 23. |
VOE954364
|
[0016] |
Ferrule
|
|
| 24. |
VOE944717
|
[0016] |
Sleeve
|
|
| 25. |
VOE1589338
|
[0001] |
Solenoid valve
|
|
| 26. |
|
[0001] |
Bracket
|
|
| 2. |
VOE13945966
|
[0001] |
Nipple
|
|
| 27. |
VOE13946934
|
[0004] |
Screw
|
|
| 28. |
|
[0001] |
Ptct capping
|
|
| 29. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
| 30. |
VOE960629
|
[0001] |
Plug
|
|
| 31. |
VOE13947282
|
[0001] |
Gasket
|
|
| 32. |
VOE945916
|
[0002] |
Elbow nipple
|
|
| 33. |
VOE945893
|
[0002] |
Hexagon nut
|
|
| 34. |
VOE945897
|
[0002] |
Gasket
|
|
| 35. |
|
[0001] |
Cylinder
|
|
| |
|
|
None
|
ANTI GAS
|
| 3. |
VOE13945958
|
[0002] |
Nut
|
|
| 36. |
VOE4941798
|
[0001] |
Cylinder
|
SEE GROUP 91
|
| |
|
|
None
|
TIPP.REGL/TIPPING CONTR.
|
| 37. |
VOE954356
|
[0001] |
Fitting nut
|
CAB 4910
|
| 38. |
VOE943006
|
[0001] |
Closure
|
CAB 4910
|
| 39. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=400
|
| 40. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 400
|
| 41. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 3700
|
| 42. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=2850
|
| 43. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 2 X 60
|
| 44. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 980
|
