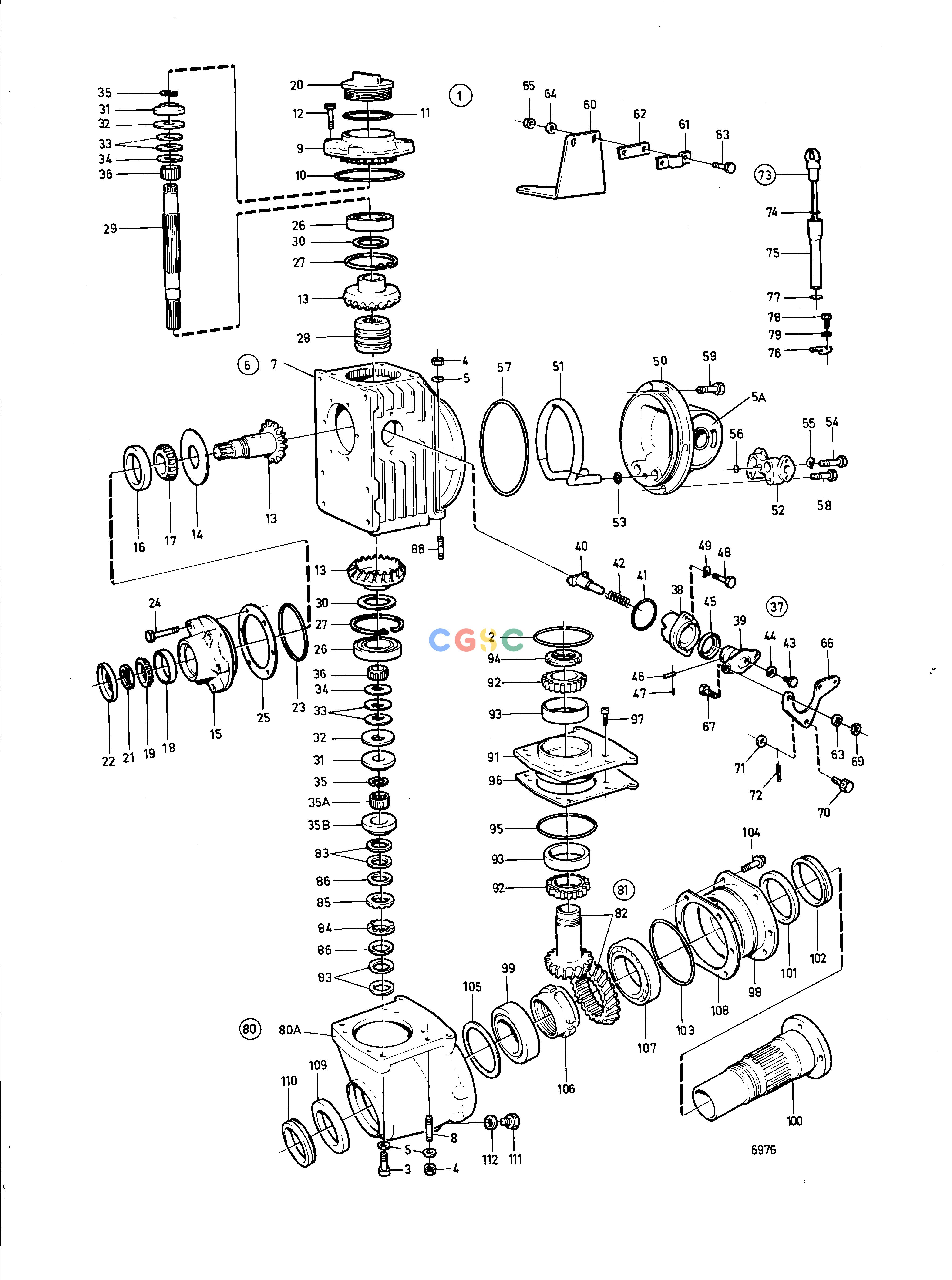

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30TransmissionsV-Drive Unit: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
859 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 2,4:1
|
| 2. |
925256
|
[1] |
O-ring
|
|
| 3. |
963702
|
[2] |
Hex. socket screw
|
|
| 4. |
963106
|
[4] |
Lock nut
|
|
| 5. |
955894
|
[4] |
Washer
|
|
| 5A. |
838507
|
[1] |
Rubber element
|
|
| 6. |
852582
|
[1] |
Upper gear
|
|
| 7. |
852729
|
[1] |
Housing
|
|
| 8. |
924066
|
[2] |
Stud
|
|
| 9. |
852524
|
[1] |
Cover
|
|
| 10. |
949962
|
[1] |
O-ring
|
|
| 11. |
925254
|
[1] |
O-ring
|
|
| 12. |
946671
|
[4] |
Flange screw
|
|
| 13. |
851616
|
[1] |
Gear set
|
|
| 14. |
851621
|
[1] |
Turntable
|
|
| 15. |
851619
|
[1] |
Bearing box
|
|
| 16. |
181302
|
[1] |
Cup
|
|
| 17. |
181301
|
[1] |
Inner ring
|
|
| 18. |
183750
|
[1] |
Cup
|
|
| 19. |
183752
|
[1] |
Cone
|
|
| 20. |
851754
|
[1] |
Filler cap
|
|
| 21. |
852485
|
[1] |
Lock nut
|
|
| 22. |
851755
|
[1] |
Sealing ring
|
|
| 23. |
925093
|
[1] |
O-ring
|
|
| 24. |
940101
|
[6] |
Hexagon screw
|
|
| 25. |
851622
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 25. |
851623
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 25. |
851624
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 26. |
851756
|
[2] |
Bearing
|
|
| 27. |
852190
|
[2] |
Lock ring
|
|
| 28. |
851626
|
[1] |
Sliding sleeve
|
|
| 29. |
852527
|
[1] |
Shaft
|
|
| 30. |
852184
|
[1] |
Shim
|
TH=0,05mm
|
| 30. |
84219
|
[1] |
Shim
|
TH=0,10mm
|
| 30. |
949776
|
[1] |
Shim
|
TH=0.15mm
|
| 30. |
84218
|
[1] |
Shim
|
TH=0.35mm
|
| 31. |
852079
|
[2] |
Lock washer
|
|
| 32. |
852213
|
[2] |
Disc spring
|
|
| 33. |
852080
|
[6] |
Disc spring
|
|
| 34. |
852311
|
[2] |
Washer
|
TH=0.4mm
|
| 34. |
852317
|
[2] |
Washer
|
TH=0.8mm
|
| 35. |
851629
|
[4] |
Locking ring section
|
|
| 35A. |
192100
|
[1] |
Needle roller bushin
|
|
| 35B. |
852967
|
[1] |
Bearing sleeve
|
(852618)
|
| 36. |
851757
|
[2] |
Needle bearing
|
|
| 37. |
851661
|
[1] |
Shift mechanism
|
|
| 38. |
851662
|
[1] |
Bearing housing
|
|
| 39. |
897816
|
[1] |
Eccentric piston
|
|
| 40. |
851664
|
[1] |
Dog
|
|
| 41. |
925065
|
[1] |
O-ring
|
|
| 42. |
814184
|
[1] |
Spring
|
|
| 43. |
897711
|
[1] |
Hexagon screw
|
|
| 44. |
897871
|
[1] |
Shim
|
TH=0.20mm
|
| 45. |
958838
|
[1] |
Sealing ring
|
|
| 46. |
942871
|
[1] |
Clevis pin
|
|
| 47. |
951924
|
[1] |
Spring pin
|
|
| 48. |
955296
|
[2] |
Hexagon screw
|
|
| 49. |
941907
|
[2] |
Spring washer
|
|
| 50. |
851872
|
[1] |
Bracket
|
|
| 51. |
852159
|
[1] |
Oil cooler
|
|
| 52. |
852733
|
[1] |
Pipe connection
|
|
| 53. |
943309
|
[2] |
O-ring
|
|
| 54. |
955278
|
[1] |
Hexagon screw
|
|
| 55. |
941906
|
[1] |
Spring washer
|
|
| 56. |
949750
|
[1] |
O-ring
|
|
| 57. |
925262
|
[1] |
O-ring
|
|
| 58. |
945444
|
[4] |
Flange screw
|
L=25mm
|
| 59. |
965179
|
[2] |
Flange screw
|
L=50mm
|
| 60. |
851441
|
[1] |
Bracket
|
|
| 61. |
21471054
|
[1] |
Bracket
|
|
| 62. |
819068
|
[1] |
Washer
|
|
| 63. |
955246
|
[2] |
Hexagon screw
|
|
| 64. |
940090
|
[2] |
Washer
|
|
| 65. |
946577
|
[2] |
Lock nut
|
|
| 66. |
852363
|
[1] |
Intermediate lever
|
|
| 67. |
955270
|
[2] |
Hexagon screw
|
|
| 68. |
955948
|
[2] |
Toothed washer
|
|
| 69. |
955781
|
[2] |
Hexagon nut
|
|
| 70. |
804312
|
[1] |
Cube
|
|
| 71. |
955892
|
[1] |
Washer
|
|
| 72. |
907834
|
[1] |
Split pin
|
(17276)
|
| 73. |
852915
|
[1] |
Oil dipstick
|
|
| 74. |
925054
|
[1] |
O-ring
|
|
| 75. |
852916
|
[1] |
Tube
|
|
| 76. |
852229
|
[1] |
Cap
|
|
| 77. |
925055
|
[1] |
O-ring
|
|
| 78. |
956063
|
[1] |
Cross recessed screw
|
|
| 79. |
955891
|
[1] |
Washer
|
|
| 80. |
852598
|
[1] |
Lower gear
|
|
| 80A. |
852739
|
[1] |
Housing
|
|
| 81. |
851448
|
[1] |
Gear set
|
|
| 82. |
|
|
|
|
| 83. |
|
|
|
|
| 84. |
|
|
|
|
| 85. |
|
|
|
|
| 86. |
|
|
|
|
| 87. |
|
|
|
|
| 88. |
953053
|
[2] |
Stud
|
|
| 89. |
851415
|
[1] |
Guide sleeve
|
|
| 90. |
925056
|
[2] |
O-ring
|
|
| 91. |
852589
|
[1] |
Bearing box
|
|
| 92. |
181305
|
[2] |
Cone
|
Repl by 183842
|
| 93. |
181662
|
[1] |
Cup
|
Repl by 183842
|
| 93. |
183842
|
[1] |
Roller bearing
|
|
| 94. |
852616
|
[1] |
Lock nut
|
|
| 95. |
925256
|
[1] |
O-ring
|
|
| 96. |
852593
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 96. |
852594
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 96. |
852595
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 97. |
959202
|
[4] |
Hex. socket screw
|
L=14mm
|
| 98. |
852584
|
[1] |
Bearing housing
|
|
| 99. |
184619
|
[1] |
Roller bearing
|
|
| 100. |
852599
|
[1] |
Tubular shaft
|
|
| 101. |
959039
|
[1] |
Sealing ring
|
|
| 102. |
944144
|
[1] |
Sealing ring
|
|
| 103. |
925263
|
[1] |
O-ring
|
|
| 104. |
945444
|
[6] |
Flange screw
|
|
| 105. |
943252
|
[1] |
Shim
|
TH=0,05mm
|
| 105. |
943866
|
[1] |
Shim
|
TH=0,10mm
|
| 105. |
943867
|
[1] |
Shim
|
TH=0.20mm
|
| 105. |
967557
|
[1] |
Shim
|
TH=0,30mm
|
| 105. |
943868
|
[1] |
Shim
|
TH=0.40mm
|
| 106. |
852619
|
[1] |
Nut
|
|
| 107. |
184620
|
[1] |
Roller bearing
|
|
| 108. |
852590
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 108. |
852591
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 108. |
852592
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 109. |
959020
|
[1] |
Sealing ring
|
|
| 110. |
948986
|
[1] |
Sealing ring
|
|
| 111. |
960629
|
[1] |
Plug
|
|
| 112. |
947084
|
[1] |
Gasket
|
|
| 112. |
875743
|
[1] |
Sealing ring kit
|
See group 10A
|
