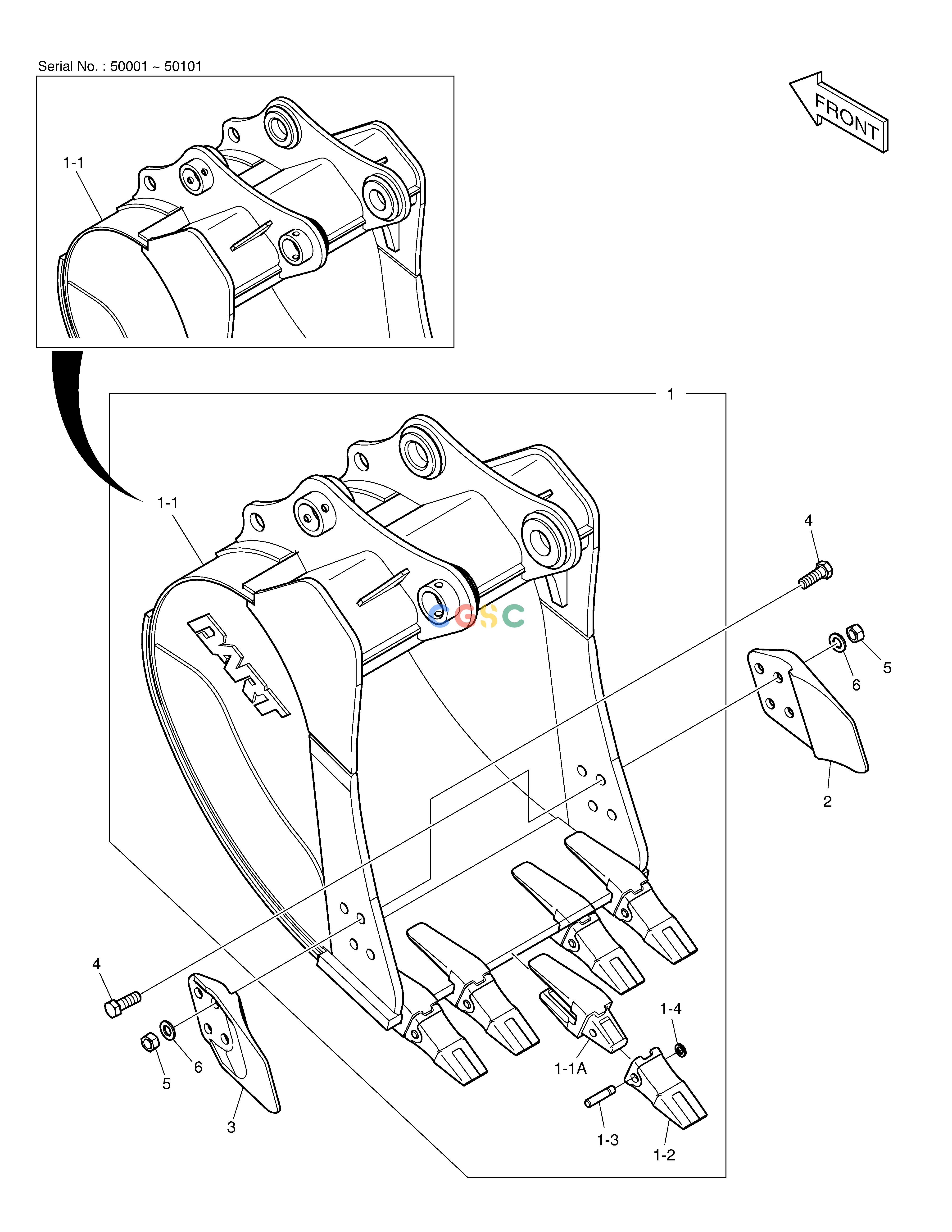

斗山零件查询BUCKET ASS'Y - 0.44㎥ (33") - SIDE PIN DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01209
|
[1] |
|
230104-01209A
|
| -. |
230104-01209A
|
[1] |
|
|
| 1. |
230104-01211
|
[1] |
|
|
| 1-1. |
230104-01212A
|
[1] |
|
|
| 1-1. |
230104-01212
|
[1] |
|
230104-01212A
|
| 1-1A. |
2713-1222B
|
[5] |
.. ADAPTER,TOOTH
|
|
| 1-2. |
713-00022A
|
[5] |
POINT;TOOTH
|
|
| 1-3. |
2705-1022
|
[5] |
. PIN,LOCKING
|
|
| 1-4. |
2114-1859
|
[5] |
. WASHER,LOCKING
|
|
| 2. |
2713-1228A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 3. |
2713-1229A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 4. |
S0574761
|
[8] |
BOLT M24X3.0X70
|
|
| 5. |
S4013333
|
[8] |
. NUT
|
|
| 6. |
2114-1831A
|
[8] |
. WASHER
|
|
