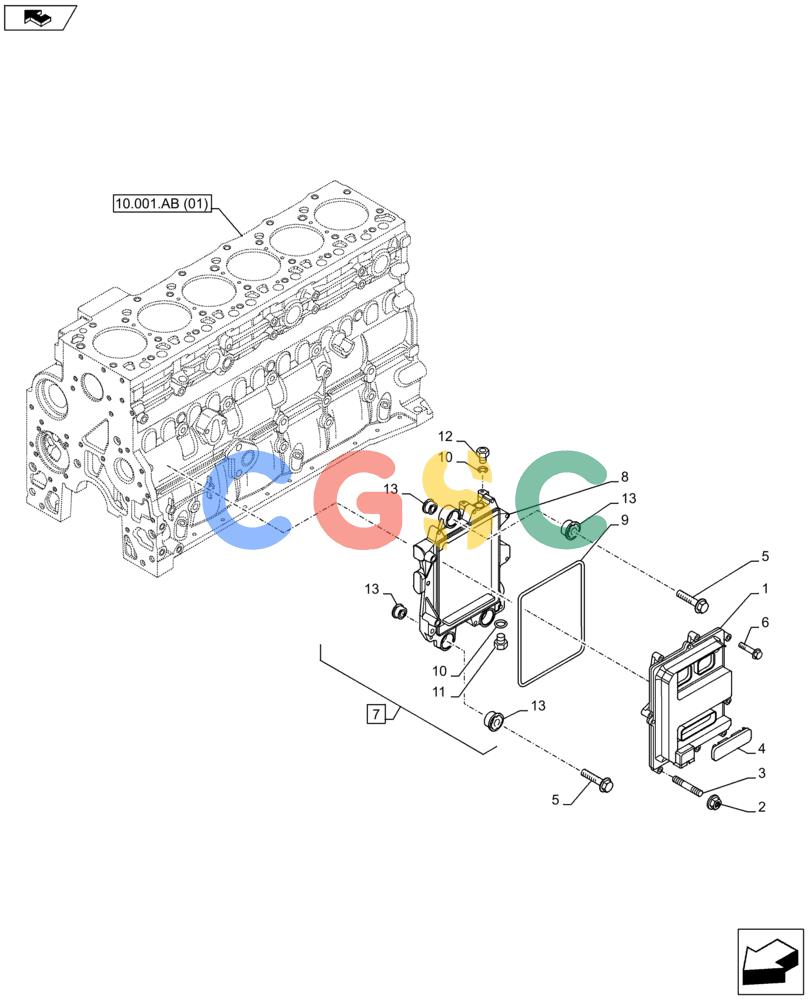

纽荷兰零件查询(F4HFA613F E005) - ENGINE - 5801550460 - 84316932 (7/13-) (55.015.AA) - ENGINE, CONTROL, UNIT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1000 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854594 | [1] | ECU | TOR |
| 1. | 2854594R | [1] | REMAN-MODULE | MKTReman for New PN 2854594 |
| 1. | 2854594C | [1] | CORE-MODULE | MKTReturn Number |
| 2. | 4899057 | [1] | FLANGE NUT,M6 | TORM6 x 1.0 |
| 3. | 2854593 | [1] | STUD | TOR Superseded by part number: 16727824 |
| 4. | 2852825 | [1] | PLUG | TOR |
| 5. | 4899078 | [3] | SCREW,Hex Flg, M8 x 1.25 x 45 | TORM8 x 1.25 x 45 |
| 6. | 2852818 | [7] | SCREW | SMM6 x 1 x 30 Superseded by part number: 16586025 |
| 7. | 2854595 | [1] | BRACKET | TORASSY, Incl 8 - 13 Superseded by part number: 4890964, 504070042, 10298460, 98498817, 4896542 |
| 8. | 2854596 | [1] | BRACKET | TOR Superseded by part number: |
| 9. | 2854079 | [1] | GASKET,6.45mm Thk | SM |
| 10. | 2854292 | [2] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TOR Superseded by part number: 10298460 |
| 11. | 4890964 | [1] | FITTING,M12 x 1.5 | TOR |
| 12. | 4896542 | [1] | HYD CONNECTOR | TOR |
| 13. | 2855150 | [6] | INSULATOR BLOCK | TOR Superseded by part number: 98498817 |
