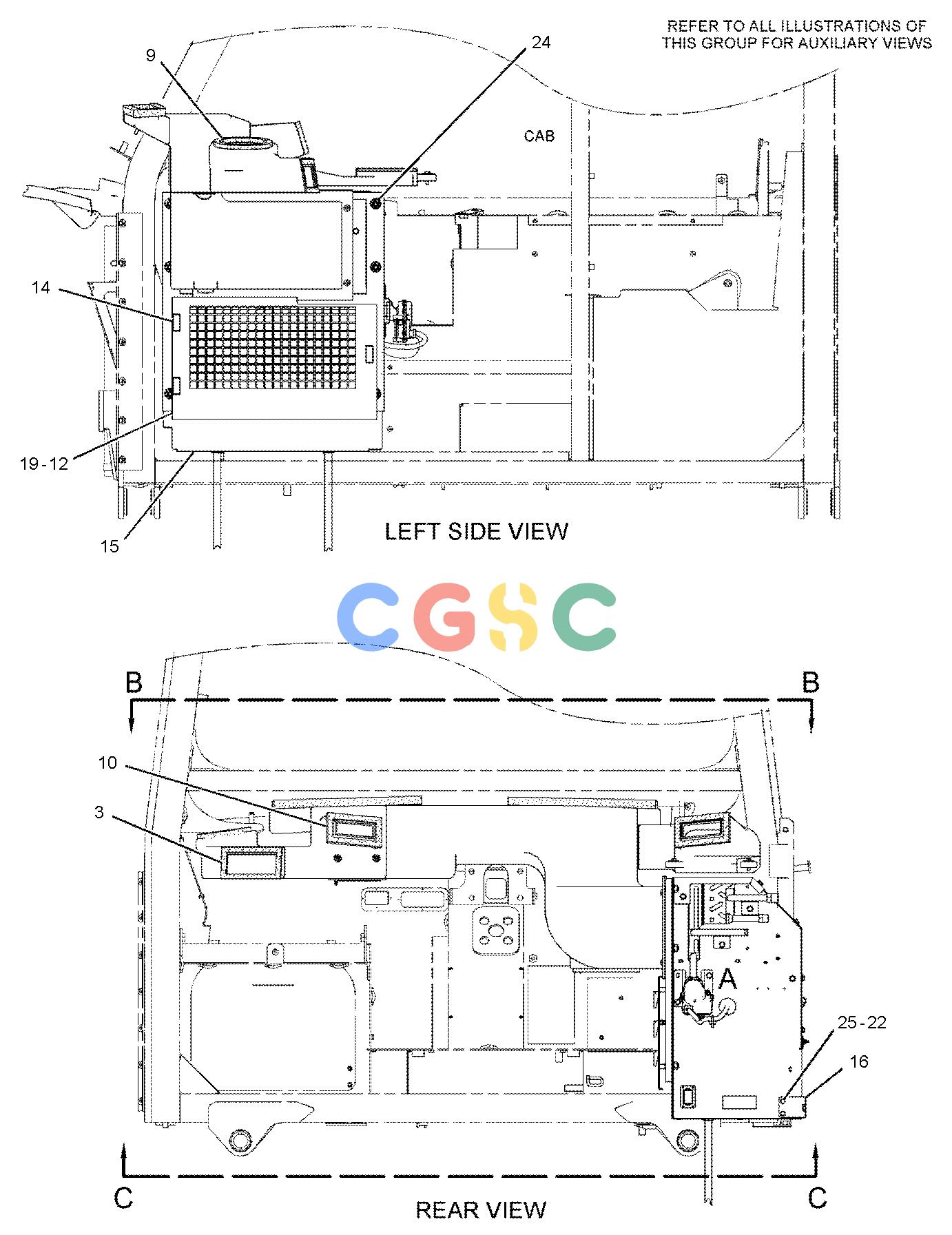

卡特零件查询（725） 281-3097: AIR CONDITIONER & MOUNTING GP
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8Y-6388 | [1] | LOUVER AS-VENT | |
| 2. | 104-5604 | [4] | WASHER(7.2X25X2-MM THK) | |
| 3. | 120-3950 | [1] | GASKET | |
| 4. | 151-5715 | [1] | LOUVER AS-VENT | |
| 5. | 160-8720 | [1] | PLENUM | |
| 6. | 170-4855 | [1] | PLENUM | |
| 7. | 170-5337 | [1] | GASKET | |
| 8. | 170-5338 | [2] | GASKET | |
| 9. | 170-5339 | [1] | GASKET | |
| 10. | 170-5340 | [2] | GASKET | |
| 11. | 170-5341 | [1] | GASKET | |
| 12. | 170-5342 | [1] | COVER | |
| 13. | 175-7141M | [6] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 14. | 185-9464 | [3] | LATCH AS(COMPARTMENT) | |
| 15. | 271-9204Y | [1] | AIR CONDITIONER GP | |
| 16. | 272-0216 | [1] | BRACKET AS | |
| 17. | 104-2091 | [2] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 18. | 118-5619 | [2] | SCREW-FLAT HEAD(6-20X1-IN) | |
| 19. | 268-6704 | [1] | FILTER ELEMENT-CAB AIR(AIR CONDITIONER) | |
| 20. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 21. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 22. | 7X-2619M | [2] | BOLT(M6X1X10-MM) | |
| 23. | 8T-7004M | [6] | STUD-TAPERLOCK(M10X1.5X35-MM) | |
| 24. | 9X-2044M | [4] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 25. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
