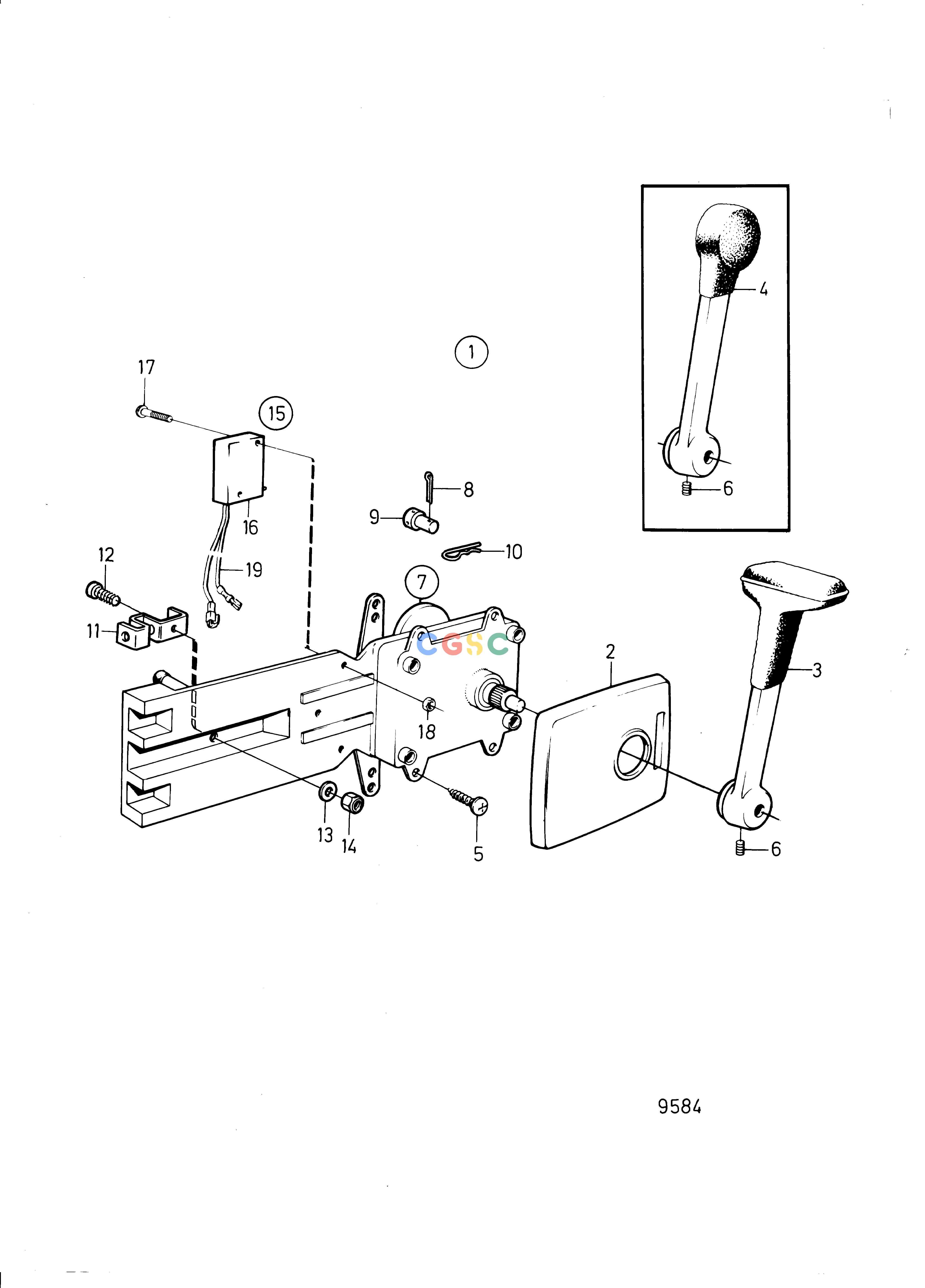

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DControlsControl for Side Installation, PC740: PC740, SAILING BOATEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
346 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
851605
|
[1] |
Mounting kit
|
|
| 2. |
1140048
|
[1] |
Cover
|
|
| 4. |
839521
|
[1] |
Hand lever
|
|
| 5. |
955142
|
[4] |
Cross recessed screw
|
|
| 6. |
839693
|
[1] |
Lock screw
|
|
| 7. |
851601
|
[1] |
Control
|
|
| 8. |
17253
|
[2] |
Split pin
|
|
| 9. |
839638
|
[2] |
Cube
|
|
| 10. |
852924
|
[1] |
Locking pin
|
|
| 11. |
853423
|
[1] |
Retainer
|
|
| 12. |
839664
|
[1] |
Screw
|
|
| 13. |
940275
|
[1] |
Washer
|
|
| 14. |
946435
|
[1] |
Lock nut
|
|
| 15. |
855352
|
[1] |
Neutral position con
|
|
| 16. |
850200
|
[1] |
Toggle switch
|
|
| 17. |
946177
|
[2] |
Cross recessed screw
|
|
| 18. |
947536
|
[2] |
Hexagon nut
|
|
| 19. |
7746610_105
|
|
electrical materials
|
|
