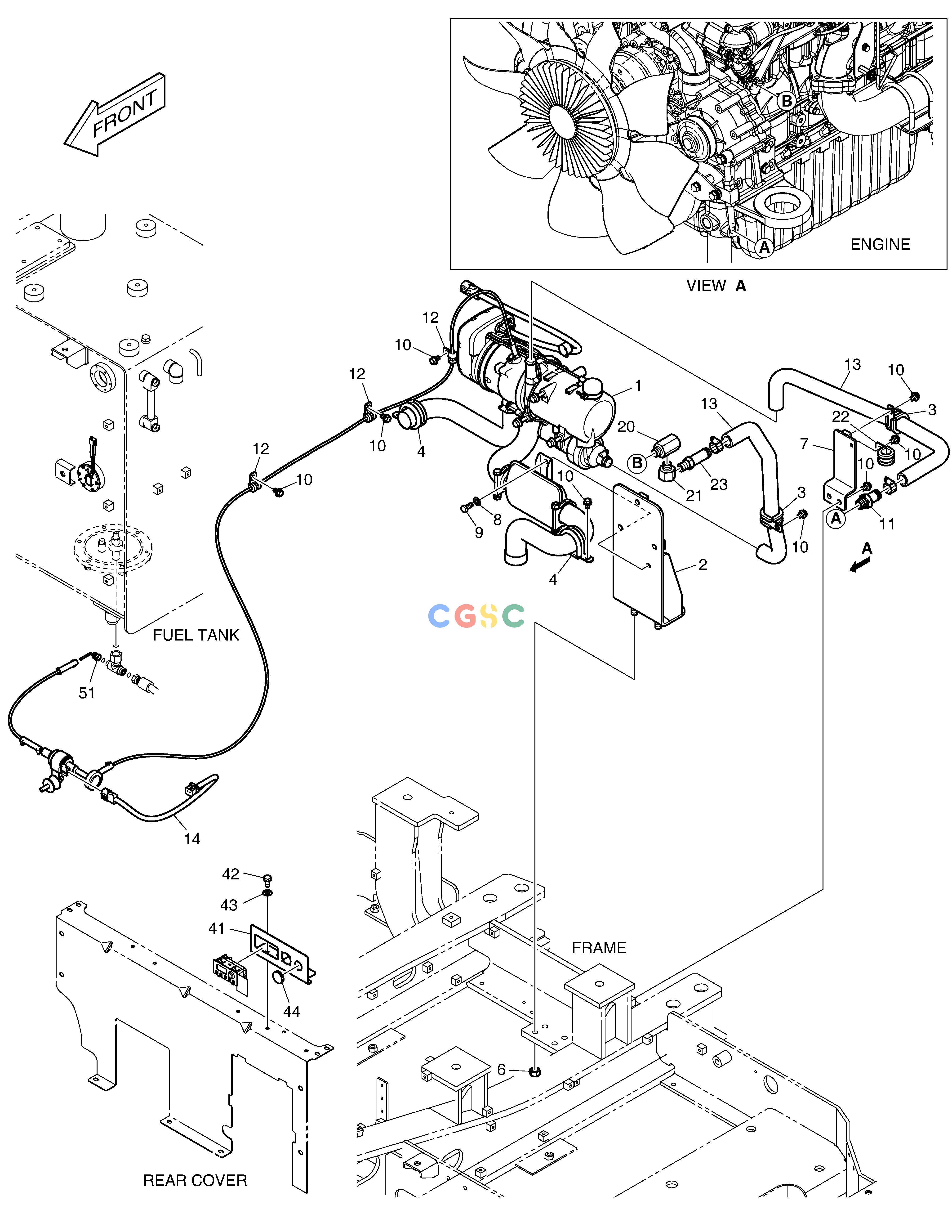

斗山零件查询DIESEL HEATER MOUNTING DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440207-00092
|
[-] |
|
|
| 1. |
440207-00082A
|
[1] |
|
|
| 10. |
K1001029
|
[10] |
BOLT
|
|
| 11. |
430201-00118
|
[1] |
|
|
| 12. |
65.97401-0202
|
[3] |
|
|
| 13. |
420109-00236
|
[2] |
|
|
| 14. |
310207-01055
|
[1] |
|
|
| 2. |
110411-00095
|
[1] |
|
|
| 20. |
430201-00621
|
[1] |
|
|
| 21. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 22. |
124-00208D3
|
[1] |
CLIP
|
|
| 23. |
DS2228009
|
[1] |
|
|
| 3. |
124-00208D5
|
[2] |
CLIP
|
|
| 4. |
124-00208D7
|
[2] |
CLIP
|
|
| 41. |
250120-00043
|
[1] |
|
|
| 42. |
2120-2166D25
|
[2] |
BOLT
|
|
| 43. |
2114-1898D14
|
[2] |
WASHER
|
|
| 44. |
K1026510
|
[1] |
CAP;RUBBER
|
|
| 51. |
430213-00062
|
[1] |
|
|
| 6. |
S4012733
|
[4] |
NUT
|
|
| 7. |
110406-01916
|
[1] |
|
|
| 8. |
S5010503
|
[1] |
WASHER
|
|
| 9. |
S0508866
|
[1] |
BOLT
|
|
